Turck BI30U-CK40-AP6X2-H1141

Turck BI30U-CK40-AP6X2-H1141

Overview

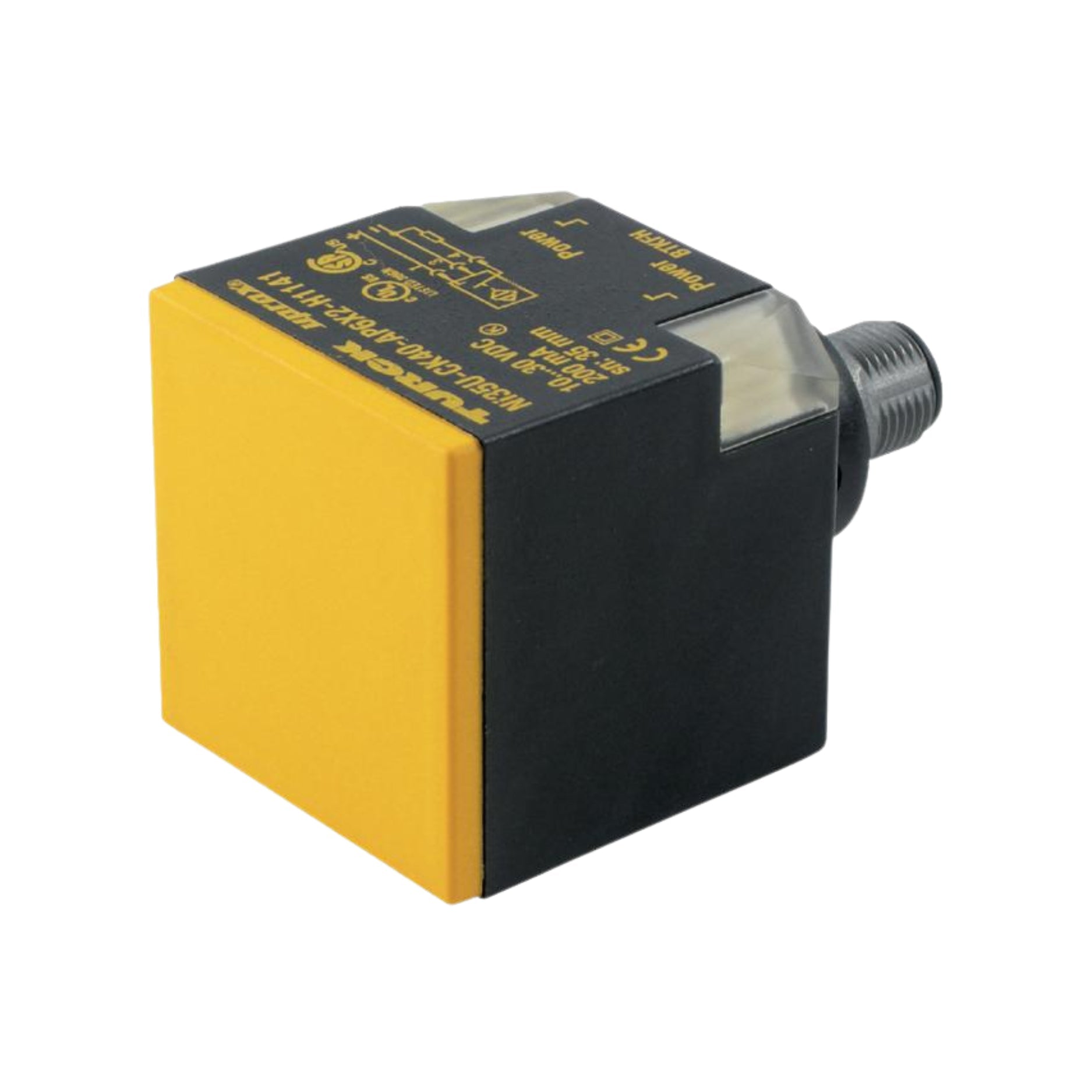

The Turck BI30U-CK40-AP6X2-H1141 is a high-performance rectangular inductive proximity sensor designed for accurate metal detection in industrial automation. Featuring a 30 mm nominal switching distance, it allows for installation flexibility and greater clearance between target and sensor. The CK40 housing offers a rectangular form factor with variable positioning of the active face, suitable for machine frames and configurations where normal cylindrical sensors are limited.

Key Features

• 30 mm sensing distance — long-range for metal detection

• PNP, Normally Open output for standard PLC integration

• “Factor 1 for all metals” detection capability — consistent switching across different metal target types

• CK40 rectangular housing with active face orientation flexibility

• Robust industrial build resisting dust, vibration, and mechanical stress

• LED status indicator for operation feedback

• Ideal for automation setups requiring larger sensing gaps

Technical Specifications

• Model: BI30U-CK40-AP6X2-H1141

• Technology: Inductive proximity (metal sensing)

• Housing: Rectangular CK40 format

• Sensing Distance (Sn): 30 mm (nominal)

• Output Type: PNP, Normally Open (NO)

• Operating Voltage: 10–30 V DC

• Rated Load Current: Up to 200 mA typical

• Switching Frequency: Moderate speed (~100-300 Hz depending variant)

• Protection Rating: Suitable for industrial use (IP67-type rating)

• Housing Material: Metal or heavy-duty plastic/composite (as per industrial grade)

• Operating Temperature: Approx. –25 °C to +70 °C

Applications

• Detection of larger metal parts or assemblies where standard proximity sensors cannot reach

• Automation machinery, material handling systems with larger gaps

• Robotics, packaging and assembly systems needing flexible mounting

• Industrial environments where reliability and range matter — e.g., heavy manufacturing, conveyors

• Machine designs requiring rectangular sensors integrated in structural frames

Why Choose Turck BI30U-CK40-AP6X2-H1141?

• Extended sensing distance offers more mounting freedom

• Consistent performance across all metal target types reduces setup time

• Rectangular housing simplifies mechanical integration in non-standard arrangements

• Turck industrial quality means long-term reliability in harsh environments

Order Now

Equip your system with the Turck BI30U-CK40-AP6X2-H1141 — a rugged, long-range inductive proximity sensor designed for demanding metal detection in industrial automation.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
