Turck BI15U-Q20-AP6X2-H1141

Turck BI15U-Q20-AP6X2-H1141

Overview

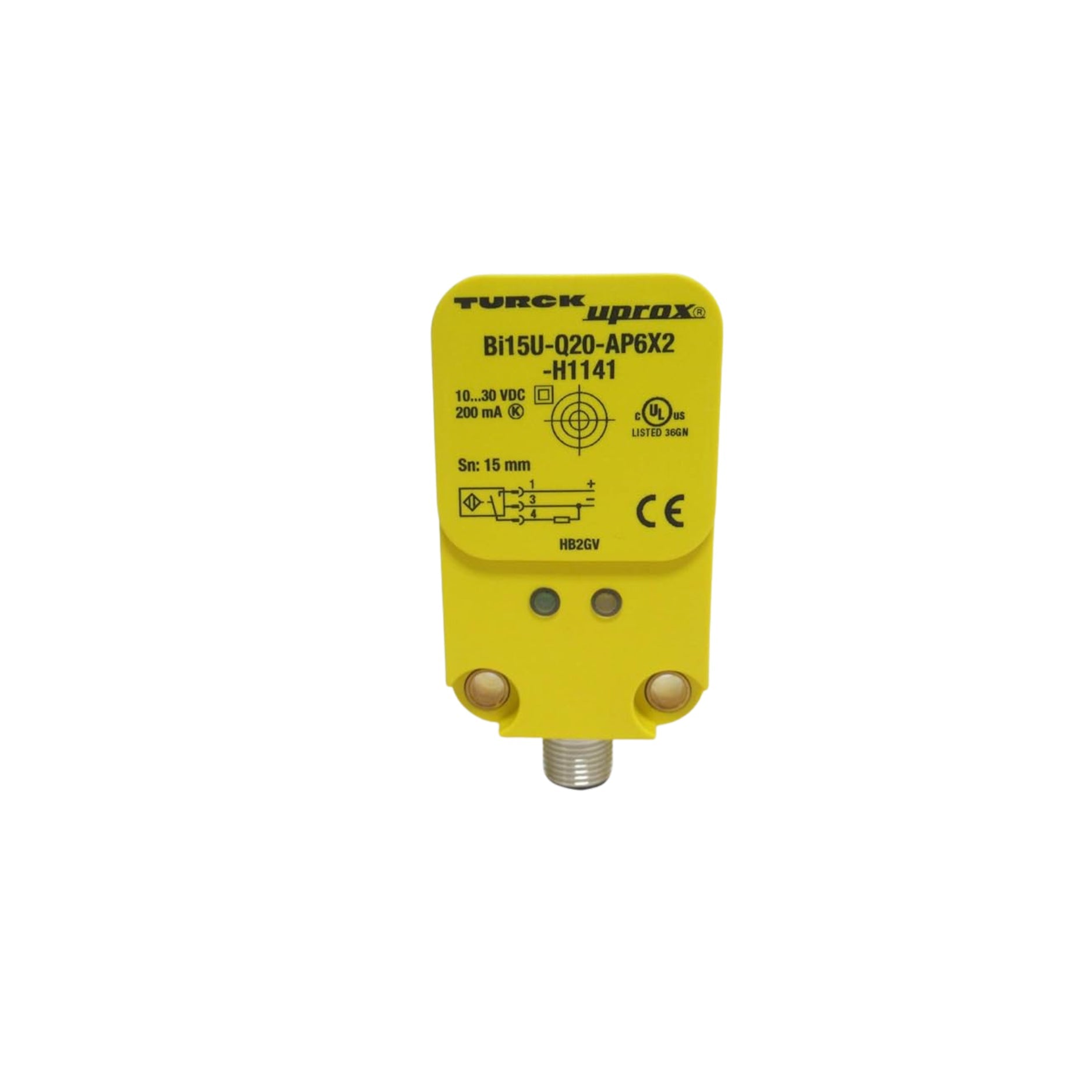

The Turck BI15U-Q20-AP6X2-H1141 is a compact rectangular inductive proximity sensor with a 15 mm sensing range.
The U = Factor 1 technology ensures the same detection distance for all metals.
This version features PNP Normally Open output and Q20 housing which is ideal for side mounting in machines.

Key Features

• 15 mm sensing range

• Factor 1 — identical range for any metal type

• PNP NO output

• Q20 rectangular housing

• Highly reliable industrial performance

Technical Specifications

• Model: BI15U-Q20-AP6X2-H1141

• Technology: Inductive, Factor 1

• Housing: Q20 rectangular

• Sensing Distance: 15 mm nominal

• Mounting: Flush / panel mounting

• Output: PNP Normally Open

• Voltage: 10–30 V DC

• Load Current: up to 200 mA

• Protection: Industrial IP rated

• Variant: H1141 version

Applications

• Assembly machines

• Conveyor systems

• Metal part detection in compact machinery

• Robotics and material handling

• General industrial automation

Why Choose This Model?

• long 15 mm range in a compact rectangular body

• Factor 1 = no adjustment required when the metal changes

• simple integration with PNP PLC inputs

Order Now

The Turck BI15U-Q20-AP6X2-H1141 delivers reliable long-distance metal detection in a small rectangular form factor.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
