Turck BI15U-M30-AP6X-H1141

Turck BI15U-M30-AP6X-H1141

Overview

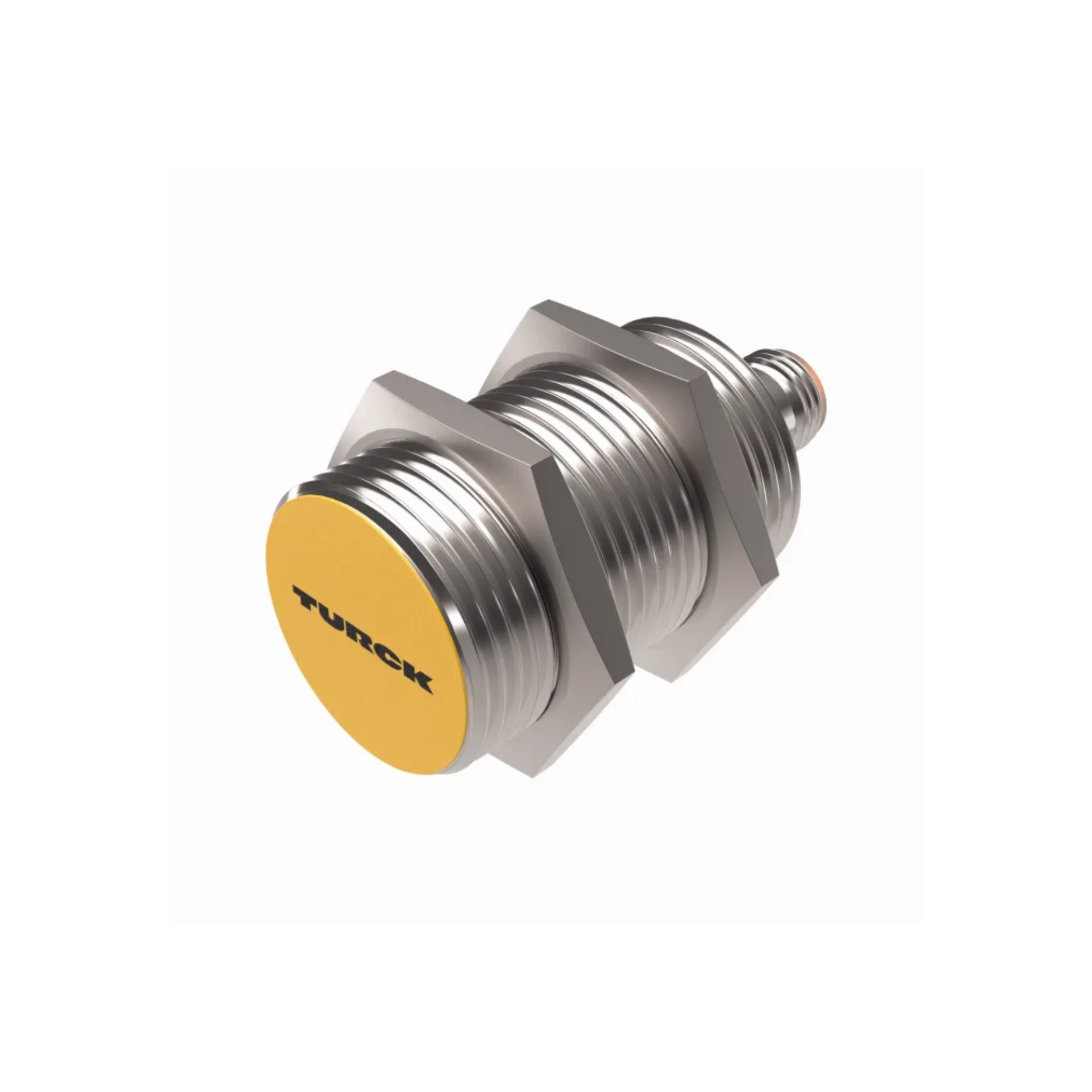

The Turck BI15U-M30-AP6X-H1141 is a long-range inductive proximity sensor designed for precise and durable metal detection in harsh industrial settings. With a 15 mm sensing distance, it offers enhanced installation flexibility, allowing greater separation between sensor and target while maintaining accuracy and stability. Its M30 metal housing ensures mechanical strength and resistance to vibration, dust, and coolants.

Key Features

• 15 mm long-range sensing distance

• PNP Normally Open output for standard PLC integration

• “Factor 1 for all metals” sensing — consistent range regardless of target metal

• Flush-mountable M30 housing for robust installation

• Resistant to magnetic fields, shock, and industrial contaminants

• LED indicator for switching status

Technical Specifications

• Model: BI15U-M30-AP6X-H1141

• Technology: Inductive proximity (metal detection)

• Thread Size: M30 × 1.5

• Sensing Distance: 15 mm (non-flush mount)

• Output Type: PNP, Normally Open (NO)

• Operating Voltage: 10 – 30 V DC

• Max Load Current: 200 mA typical

• Protection Rating: IP67 / IP68 (depending on variant)

• Operating Temperature: –25 °C to +70 °C

• Housing Material: Nickel-plated brass

• Connection Type: Cable or quick-disconnect version

Applications

• Detection of metal objects in conveyors and machinery

• Automation and robotics systems with larger target gaps

• Automotive manufacturing and metal-fabrication lines

• Industrial environments with oil, coolant or dust exposure

• Assembly stations requiring reliable non-contact detection

Why Choose Turck BI15U-M30-AP6X-H1141?

• Extended range improves mounting flexibility and reduces wear

• Factor-1 technology provides consistent detection across metal types

• Rugged design ensures stable operation in harsh conditions

• Trusted Turck quality for industrial automation applications

Order Now

Enhance your metal detection system with the Turck BI15U-M30-AP6X-H1141 — a durable, high-performance inductive sensor for long-range industrial applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
