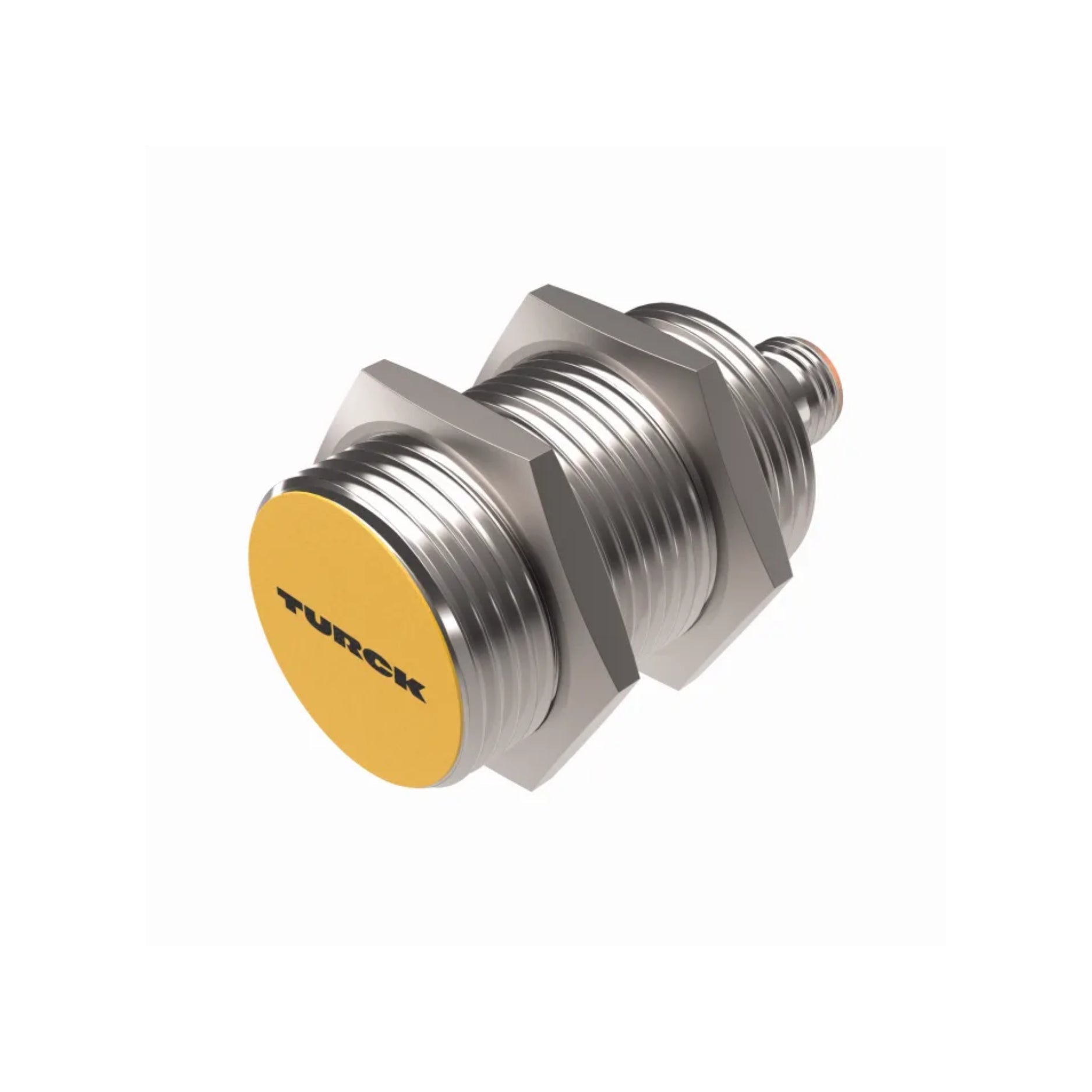

Turck BI15-M30-AP6X-H1141

Turck BI15-M30-AP6X-H1141

Overview

The Turck BI15-M30-AP6X-H1141 is a high-performance M30 inductive proximity sensor designed for long-range metal detection in industrial automation systems. With a 15 mm sensing distance, this sensor ensures reliable and precise detection of metallic objects, even in harsh conditions involving vibration, oil, or dust. Its robust chrome-plated brass housing and PNP Normally Open output make it an ideal choice for industrial machine integration.

Key Features

• Extended 15 mm sensing distance for enhanced flexibility

• PNP Normally Open (NO) output for standard PLC integration

• M30 × 1.5 threaded barrel for easy flush installation

• LED indicator for switching and power status

• Chrome-plated brass housing for mechanical durability

• Resistant to oil, dust, and vibration

• IP67-rated protection for tough environments

Technical Specifications

• Model: BI15-M30-AP6X-H1141

• Technology: Inductive proximity (metal sensing)

• Thread Size: M30 × 1.5

• Sensing Distance: 15 mm (flush mount)

• Output Type: PNP, Normally Open (NO)

• Operating Voltage: 10–30 V DC

• Rated Load Current: ≤ 200 mA

• No-Load Current: ≤ 15 mA

• Protection Rating: IP67 / IP68

• Operating Temperature: –25 °C to +70 °C

• Housing Material: Chrome-plated brass

• Connection Type: M12 connector

• Switching Frequency: Up to 500 Hz (typical)

Applications

• Metal detection in automated production lines

• Position and presence sensing in heavy machinery

• Robotics, packaging, and assembly equipment

• Conveyor and material handling systems

• Harsh environments exposed to dust, oil, or mechanical stress

Why Choose Turck BI15-M30-AP6X-H1141?

• Offers long-range detection in a compact and durable body

• Ensures stable performance across all metal types

• Easy to install and integrate with standard automation systems

• Built for maximum reliability and longevity under industrial conditions

• Backed by Turck’s trusted quality and engineering precision

Order Now

Enhance your automation systems with the Turck BI15-M30-AP6X-H1141 — a durable, high-range inductive sensor built for precision, reliability, and long-term performance.
