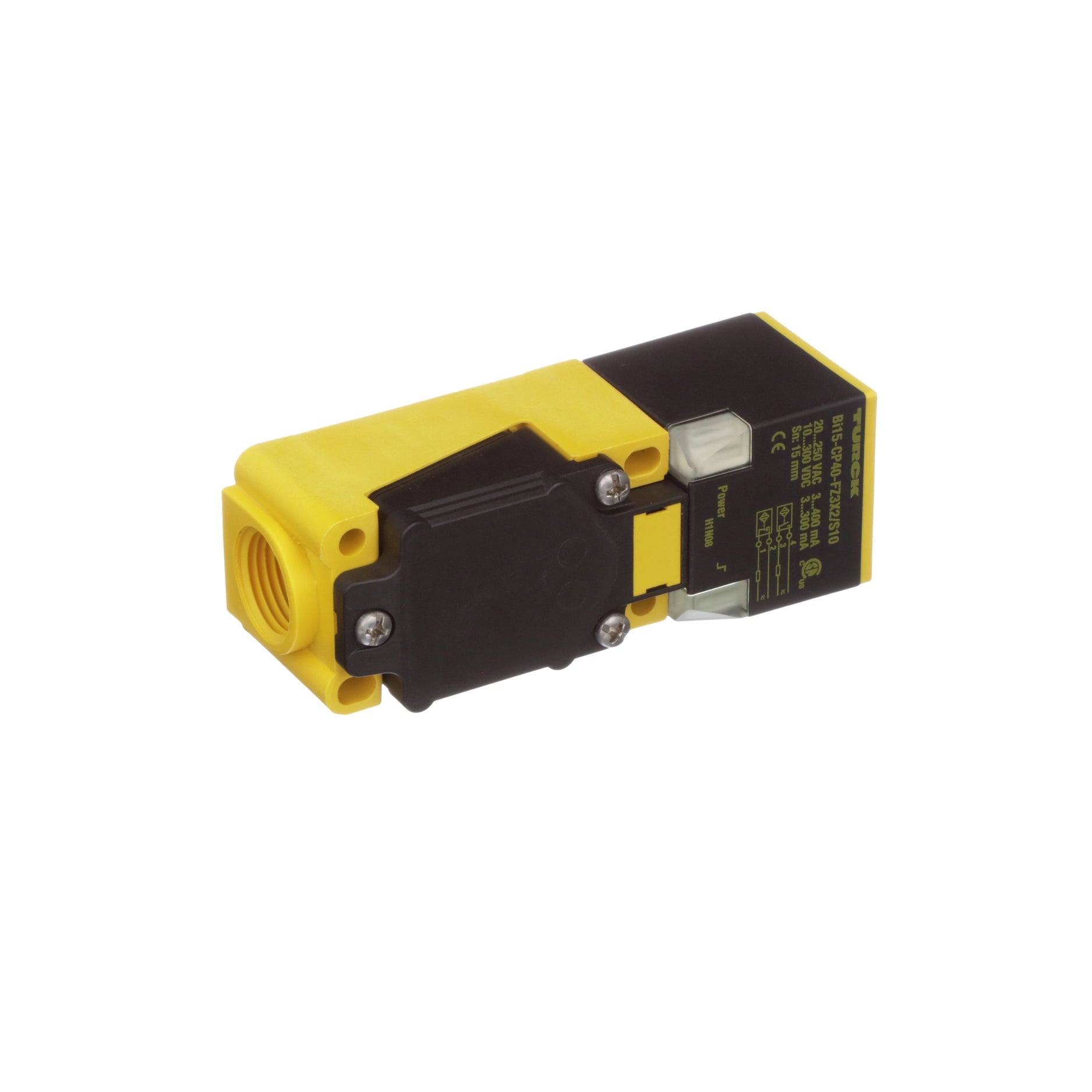

Turck BI15-CP40-FZ3X2-S10

Turck BI15-CP40-FZ3X2-S10

Overview

The Turck BI15-CP40-FZ3X2-S10 is a rectangular inductive proximity sensor engineered for reliable detection of metal objects in industrial environments. With a 15 mm sensing distance and Namur intrinsically safe output, it is suitable for hazardous locations where signal transmission must remain explosion-proof and protected.

Key Features

• 15 mm rated sensing distance

• Rectangular CP40-style housing for flat mounting surfaces

• Namur (2-wire) intrinsically safe output

• High immunity to electrical noise and environmental interference

• LED status indication for quick diagnostics

• Resistant to shock, vibration, dust, and coolant exposure

Technical Specifications

• Model: BI15-CP40-FZ3X2-S10

• Technology: Inductive metal sensing

• Housing Type: Rectangular CP40

• Sensing Distance: 15 mm (flush)

• Output Type: Namur (2-wire low-power signal)

• Supply Loop Voltage: Low-voltage signal level for IS barriers

• Mounting Style: Flush mountable on flat surfaces

• Protection Rating: Suitable for industrial IP-rated environments

• Temperature Range: −25 °C to +70 °C

• Connection: Terminal or cable version depending on configuration

Applications

• Hazardous area metal detection (Zone-rated installations)

• Oil & gas, chemical, and grain-processing facilities

• Conveyor part presence detection

• Machine tools requiring flat-mount sensors

• Environments with extreme vibration, dirt or washdown exposure

Why Choose Turck BI15-CP40-FZ3X2-S10?

• Designed for intrinsically safe circuits in explosive environments

• Large sensing range in a compact flat-format housing

• Compatible with standard IS barriers and safety controllers

• Proven reliability for demanding industrial applications

Order Now

Achieve safe and precise sensing in hazardous areas with the Turck BI15-CP40-FZ3X2-S10 — engineered for safety, durability and accuracy.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
