Turck BI1-EH04-AP6X-V1331

Turck BI1-EH04-AP6X-V1331

Overview

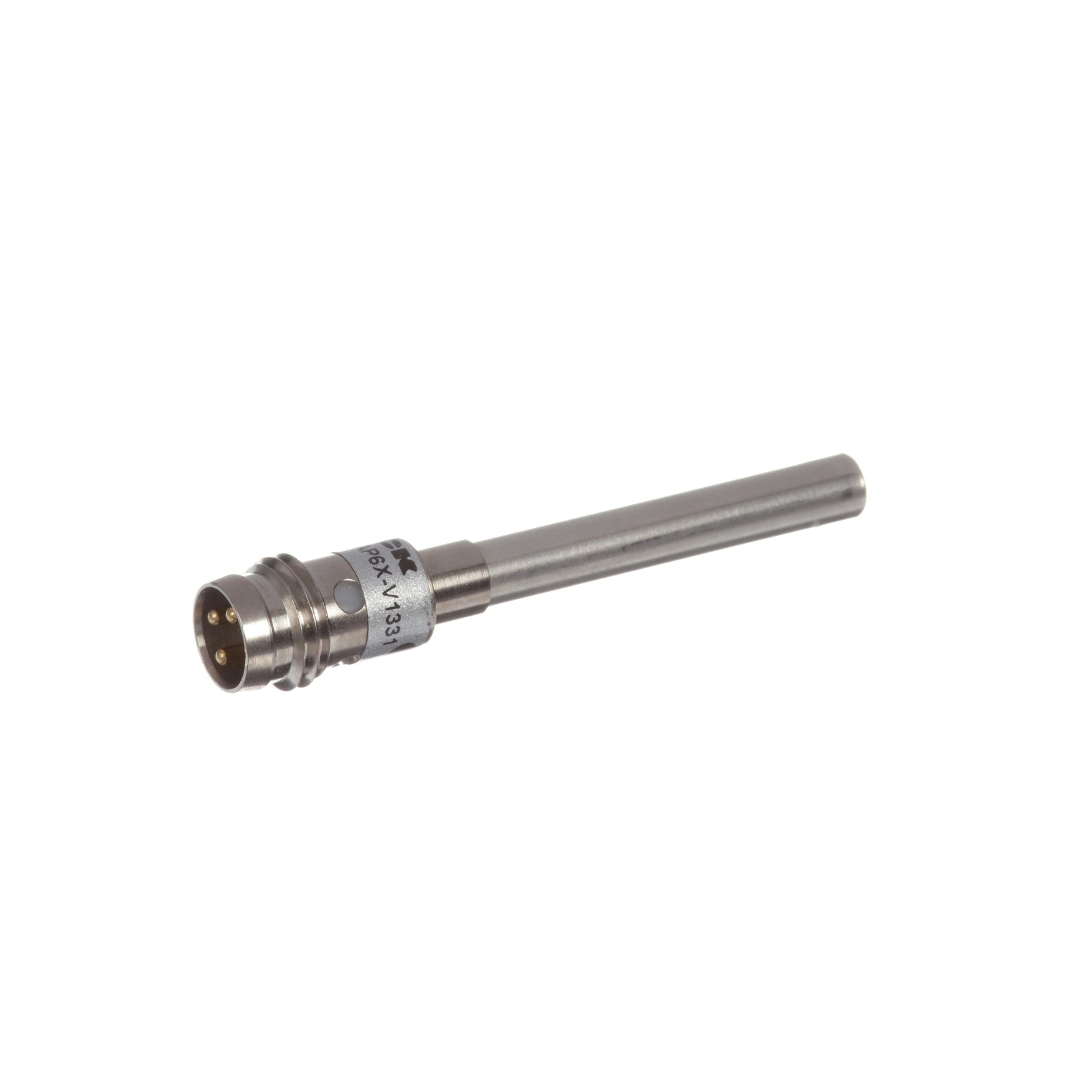

The Turck BI1-EH04-AP6X-V1331 is an extremely compact inductive proximity sensor designed to detect metal targets in very limited mounting spaces. With a 1 mm sensing distance and ultra-miniature housing (EH04 format), this model is ideal for micro-positioning, compact robots, precision mechanisms and small industrial actuators.

Key Features

• Ultra-miniature housing style EH04

• 1 mm nominal sensing distance

• PNP, Normally Open output

• Designed for extremely tight installation areas

• Ideal for detection of very small metallic objects

• Industrial-grade component with stable switching

Technical Specifications

• Model: BI1-EH04-AP6X-V1331

• Type: Inductive proximity sensor

• Housing Format: EH04 micro housing

• Sensing Distance: 1 mm nominal

• Output: PNP, Normally Open (NO)

• Supply Voltage: 10–30 V DC

• Load Current: Up to 200 mA

• Protection Rating: Industrial sealed (IP-type for harsh use)

• Operating Temp: –25 °C to +70 °C

• Application Focus: Micro automation and confined geometry spaces

Applications

• Mini-robotics and compact gripper systems

• Precision assembly machinery

• Electronic assembly and feeder mechanisms

• High-density automation modules

• Micro parts presence detection in packaging or sorting

Why Choose This Model?

• One of the smallest inductive sensors available

• Perfect for machinery where space is extremely limited

• Reliable micro-range metal detection

• Plug-and-play 10–30 V DC, common industrial interface

Order Now

Choose the Turck BI1-EH04-AP6X-V1331 for ultra-compact precision metal detection in micro-automation environments.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
