Overview

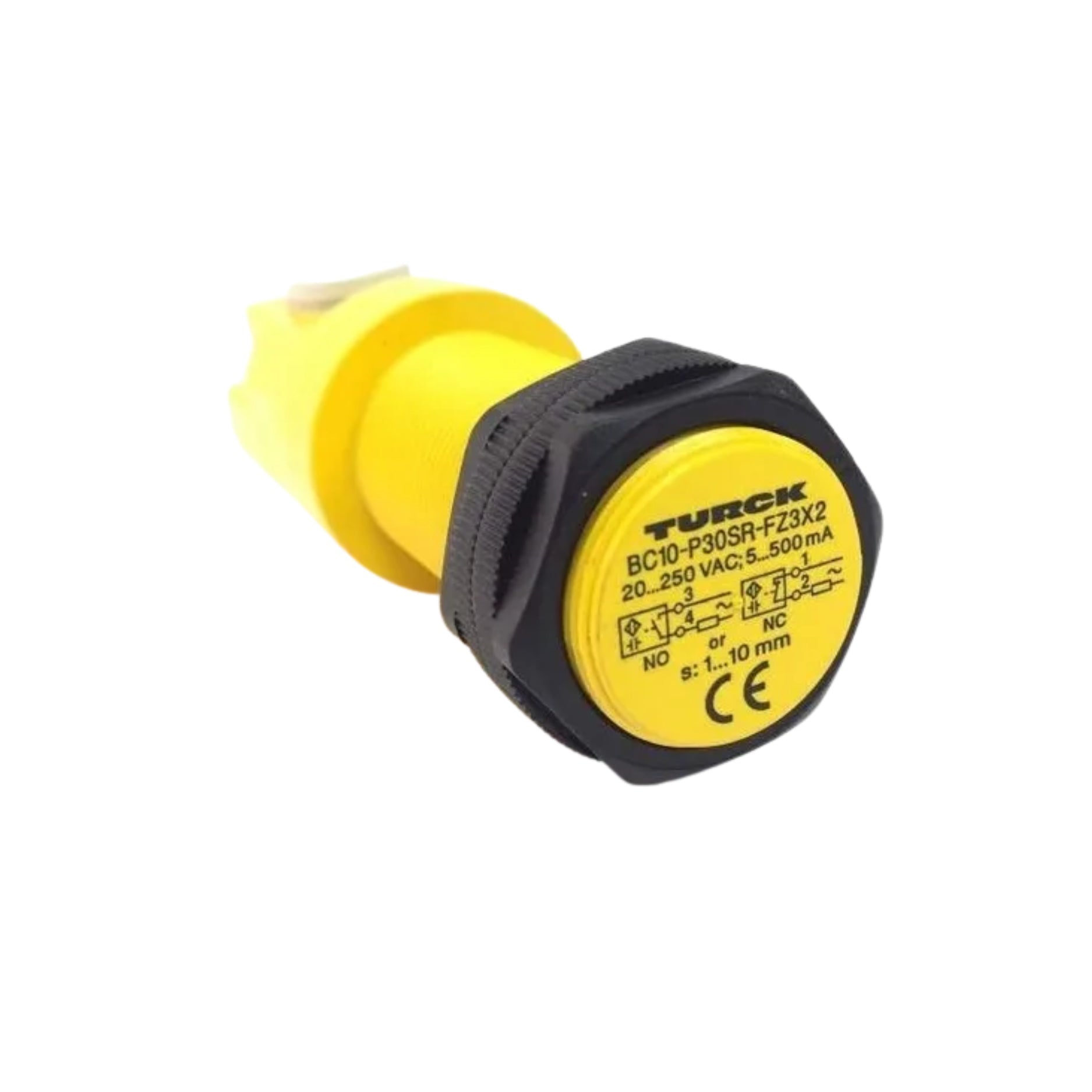

The Turck BC10-P30SR-FZ3X2 is a large-format capacitive proximity switch designed for non-contact detection of both metallic and non-metallic objects. It features a robust M30 × 1.5 threaded barrel housing, an adjustable potentiometer for fine-tuning, and a wide supply voltage allowing AC 20…250 V operation in a 2-wire configuration. This makes it ideal for applications where standard DC sensors cannot be used.

Key Features

• Flush sensing distance: 10 mm nominal / non-flush: 15 mm

• M30 threaded barrel housing for robust industrial mounting

• Capacitive technology – detects metals, plastics, liquids and granulates

• AC 2-wire operation with programmable NO/NC switching

• Adjustable sensitivity via potentiometer

• Suitable for harsh industrial environments (IP67 rated)

Technical Specifications

• Model: BC10-P30SR-FZ3X2

• Technology: Capacitive proximity sensing

• Housing: M30 × 1.5 threaded cylindrical

• Sensing Distance (flush): 10 mm nominal

• Sensing Distance (non-flush): 15 mm nominal

• Output Configuration: 2-wire AC, switching with programmable NO/NC setup

• Supply Voltage: 20…250 V AC

• Load Current (max): ≤ 500 mA

• Protection Class: IP67

• Housing Material: Plastic (ABS)

• Ambient Temperature Range: –25 °C to +70 °C

• Variant Code: FZ3X2

Applications

• Detection of containers or parts made of plastic, glass, wood or metal

• Monitoring of liquid levels through non-metallic containers

• Packaging and bottling installations

• Automation where AC supply is required instead of DC

• Retrofit in machines that use AC logic signals

Why Choose This Model?

• Large sensing distance for capacitive sensor (10 mm flush) gives more installation flexibility

• AC 2-wire operation makes it compatible with older or special control systems

• Robust M30 housing suitable for demanding industrial environments

• Ability to detect non-metal materials in addition to metals expands application scope

Order Now

When you need a dependable capacitive sensor for mixed-material detection with AC 2-wire wiring, the Turck BC10-P30SR-FZ3X2 is a strong choice.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
