Turck B8151-0/PG9

Turck B8151-0/PG9

Overview

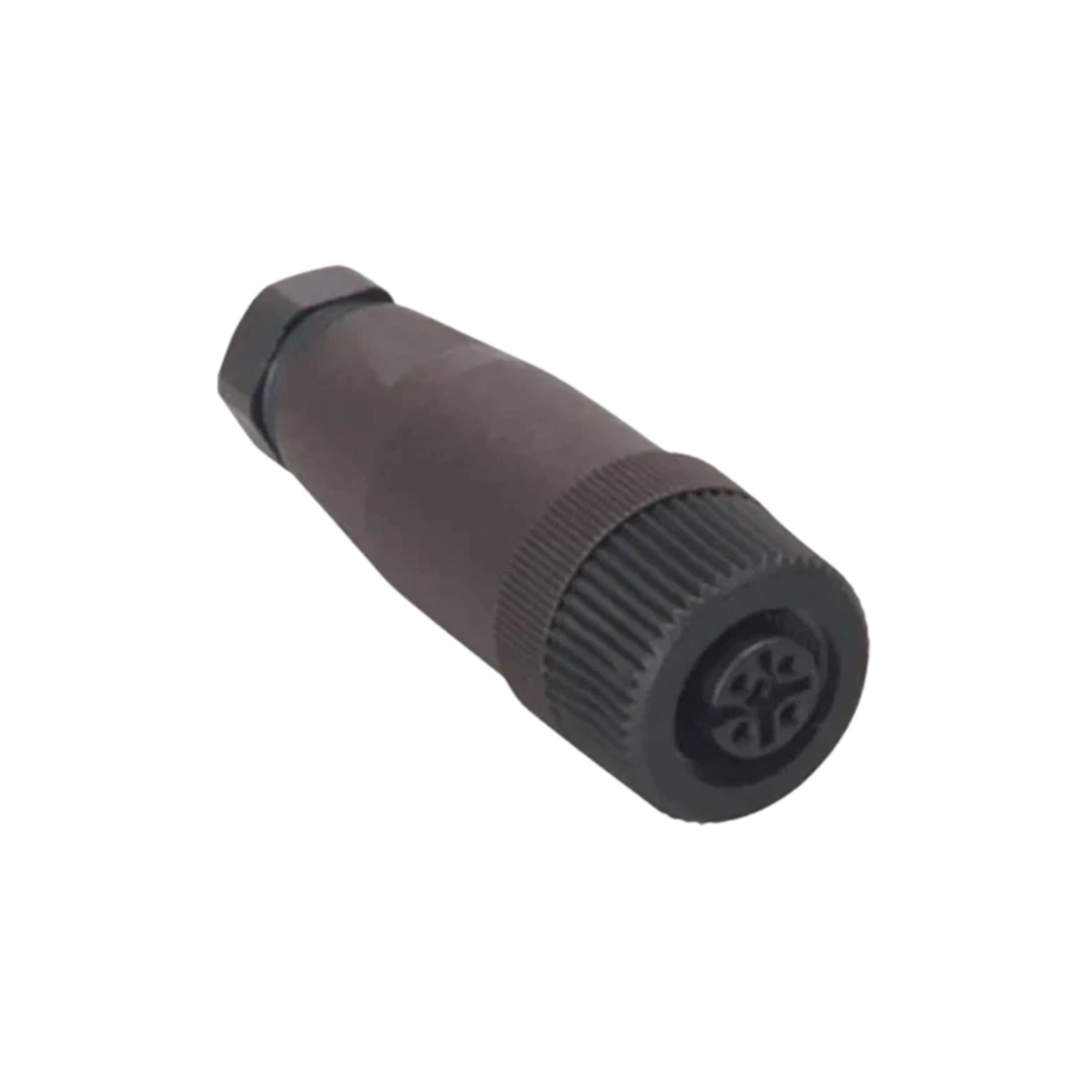

The Turck B8151-0/PG9 is a high-quality female M12 × 1 connector designed for industrial sensor and fieldbus wiring. It features 5 screw-terminals, straight cable exit, PG9 cable gland, and is built for demanding applications such as DeviceNet™/CANopen. With fully field-wireable design, this connector enables flexible installation and maintenance of sensors and actuators.

Key Features

• Female M12 × 1 straight connector — standard for many sensors

• 5 screw-clamp terminals for reliable wiring

• PG9 cable gland (for 6–8 mm cable diameter) for secure cable entry

• Rugged construction with IP67 rated when mated and sealed

• Supports DeviceNet and CANopen fieldbus protocols

• Durable design — mechanical life over 50 mating cycles

Technical Specifications

• Model: B8151-0/PG9

• Connector Gender: Female

• Thread Size: M12 × 1

• Number of Pins: 5

• Cable Entry: PG9 (6–8 mm cable Ø)

• Protection Rating: IP67 (when properly sealed)

• Rated Voltage: Up to ~125 V AC/DC (per spec)

• Rated Current: 4 A at 20 °C (typical)

• Insulation Resistance: ≥108 Ω (per datasheet)

• Operating Temperature: –40 °C to +85 °C (stationary use)

• Housing Material: Plastic (PA) body, PA coupling nut, FPM/FKM seal

• Connection Mode: Screw/clamp terminals

Applications

• Field wiring and connection of sensors and actuators in industrial automation

• DeviceNet and CANopen network nodes and device interfaces

• Harsh environment installations requiring sealed, durable connectors

• Modular machine installations where quick replacement is beneficial

• Environments with dust, oil spray or vibration where IP67 rating is required

Why Choose Turck B8151-0/PG9?

• Field-wireable format simplifies sensor and actuator integration

• Standard M12 interface ensures compatibility across many devices

• Robust sealing and durable materials support demanding industrial use

• Supports common industrial networks and protocols

• Turck quality and reliable performance in field-install wiring

Order Now

Connect your field sensors and devices with the Turck B8151-0/PG9, the rugged, M12 female field-wireable connector optimized for industrial automation wiring.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
