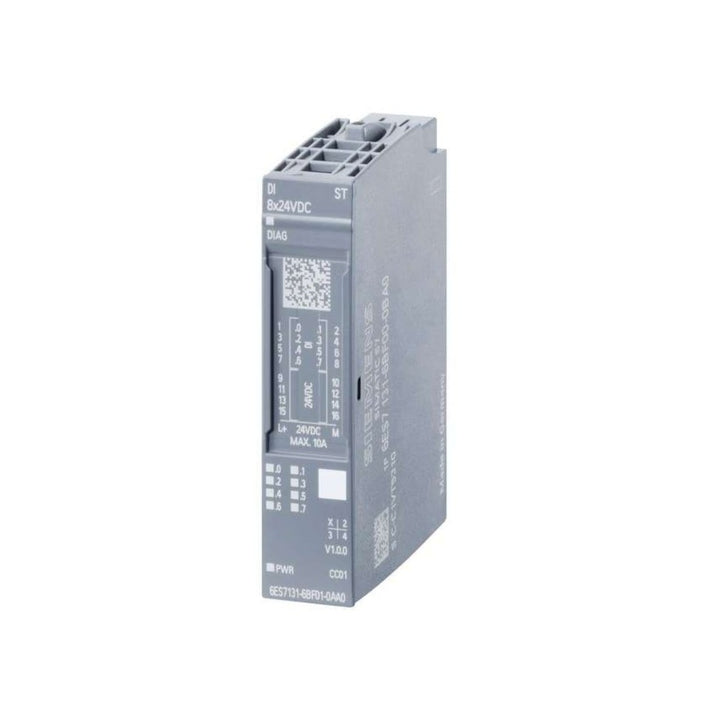

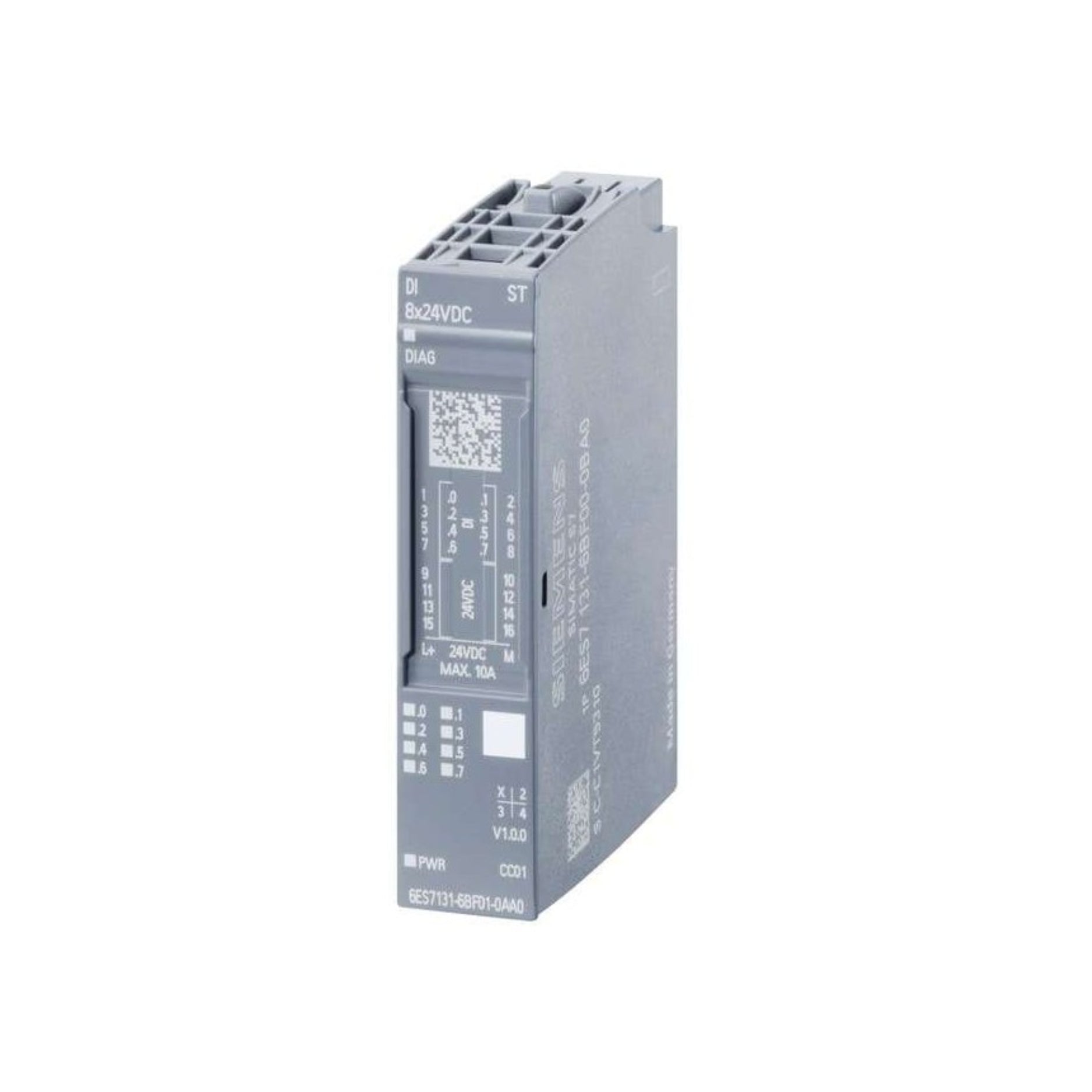

Siemens 6ES7131-6BF01-0AA0 | SIMATIC ET 200SP Digital Input

Siemens 6ES7131-6BF01-0AA0 | SIMATIC ET 200SP Digital Input Module

Overview:

The Siemens 6ES7131-6BF01-0AA0 is a digital input module from the SIMATIC ET 200SP series, designed to interface with various digital sensors and devices in industrial automation systems. It offers 8 digital input channels, each operating at 24V DC, and is configured as a sink input (PNP, P-reading) in accordance with IEC 61131 Type 2 standards. The module is compatible with BU-type A0 base units and features a color code of CC01 for easy identification. It also provides module diagnostics specifically for monitoring the supply voltage.

Key Features:

• Number of Inputs: 8 digital inputs
• Input Voltage: 24V DC
• Input Type: Sink input (PNP, P-reading)
• Compliance: IEC 61131 Type 2
• Input Delay Time: Adjustable between 0.05 to 20 ms
• Diagnostics: Module diagnostics for supply voltage monitoring
• Compatibility: Fits BU-type A0 base units
• Color Code: CC01

Technical Specifications:

• Product Type: Digital Input Module
• Part Number: 6ES7131-6BF01-0AA0
• Input Voltage Range: 19.2 V to 28.8 V DC
• Input Current (per channel): Approximately 6.8 mA
• Input Delay: Configurable from 0.05 ms to 20 ms
• Dimensions (W x H x D): 15 mm x 73 mm x 58 mm
• Weight: Approximately 28 g
• Operating Temperature: -30°C to +60°C (horizontal installation)
• Protection Class: IP20
• Standards Compliance: CE, RoHS

Applications:

• Industrial Automation: Ideal for interfacing with various digital sensors and devices in automated systems.
• Process Control: Suitable for monitoring and controlling input signals in process industries.
• Machine Building: Applicable in machinery requiring reliable digital input interfaces.

Note: For detailed technical information and installation guidelines, please refer to the official Siemens documentation for the 6ES7131-6BF01-0AA0

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
