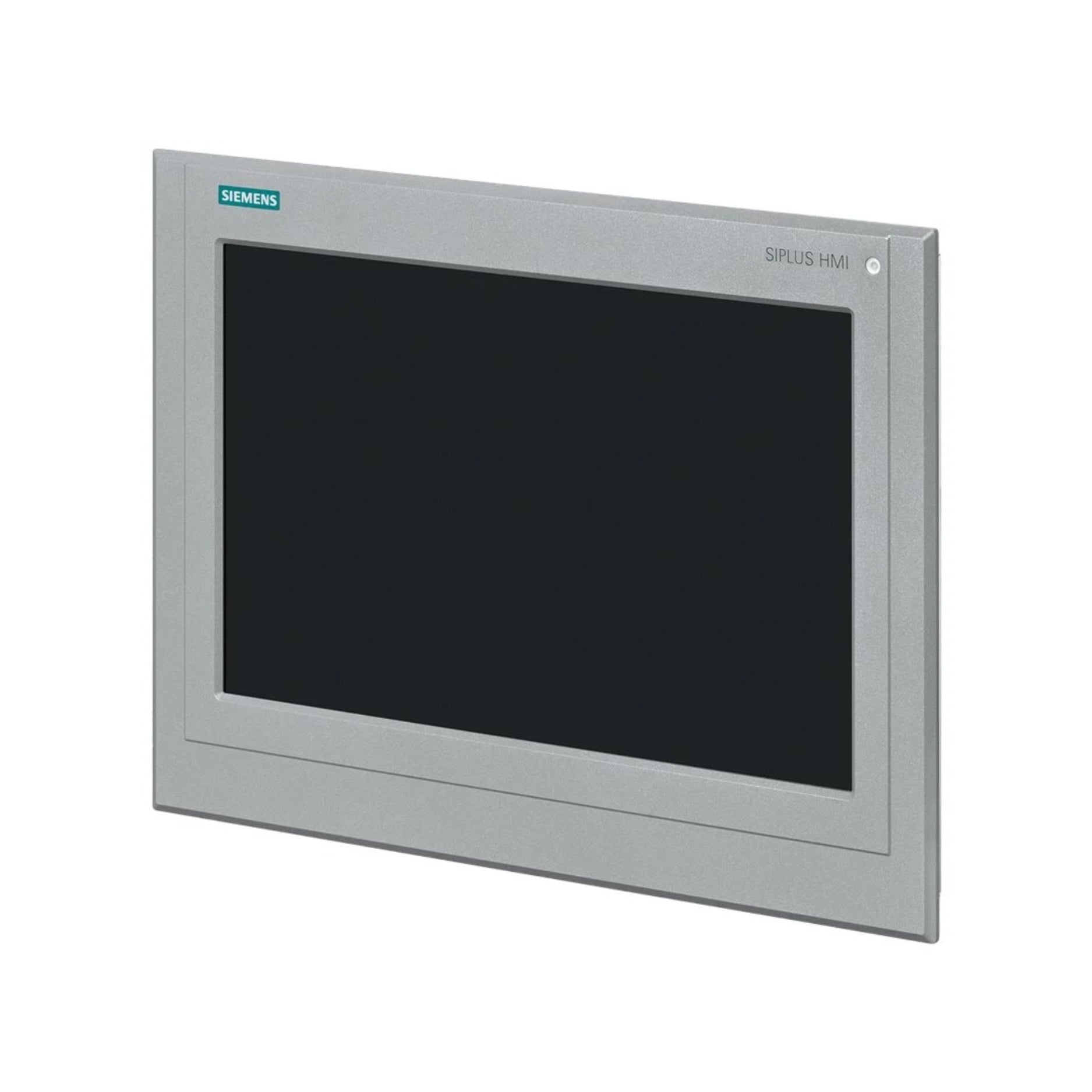

Siemens 6AV2124-0QC13-0AX0 | SIMATIC HMI TP1500 Comfort Outdoor

Siemens 6AV2124-0QC13-0AX0 | SIMATIC HMI TP1500 Comfort Outdoor Panel

Overview:

The Siemens 6AV2124-0QC13-0AX0 is part of the SIMATIC HMI TP1500 Comfort Outdoor series, designed for high-performance visualization applications in demanding outdoor environments. It features a 15" widescreen TFT display capable of displaying 16 million colors, ensuring clear and vibrant visuals. The panel supports both PROFINET and MPI/PROFIBUS DP interfaces, providing versatile communication options for various industrial applications. With a 12 MB configuration memory, it offers ample space for complex configurations. The device operates on Windows CE 6.0 and is configurable using WinCC Comfort V13 SP1.

Key Features:

• Display: 15" widescreen TFT with 16 million colors
• Interfaces: PROFINET and MPI/PROFIBUS DP
• Configuration Memory: 12 MB
• Operating System: Windows CE 6.0
• Configuration Software: Compatible with WinCC Comfort V13 SP1

Technical Specifications:

• Display Resolution: 1280 x 800 pixels
• Touch Operation: Analog-resistive
• Supply Voltage: 24 V DC
• Current Consumption: Approximately 1.3 A
• Power Consumption: Approximately 32 W
• Dimensions (W x H x D): Approximately 400 mm x 310 mm x 70 mm
• Weight: Approximately 5.33 kg
• Operating Temperature Range: -30°C to +60°C
• Protection Rating: IP65 (front), IP20 (rear)

Applications:

• Outdoor Industrial Automation: Ideal for use in outdoor settings requiring robust and reliable HMI solutions.
• Process Monitoring: Suitable for monitoring and controlling industrial processes in harsh environmental conditions.
• Machine Control: Enhances operator interaction with machinery in outdoor environments.

Note: For detailed technical information and installation guidelines, please refer to the official Siemens documentation for the 6AV2124-0QC13-0AX0.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
