Siemens 3RT2024-1BB40 | SIRIUS 3-Pole Power Contactor – 12 A, 5.5

Siemens 3RT2024-1BB40 | SIRIUS 3-Pole Power Contactor

Overview:

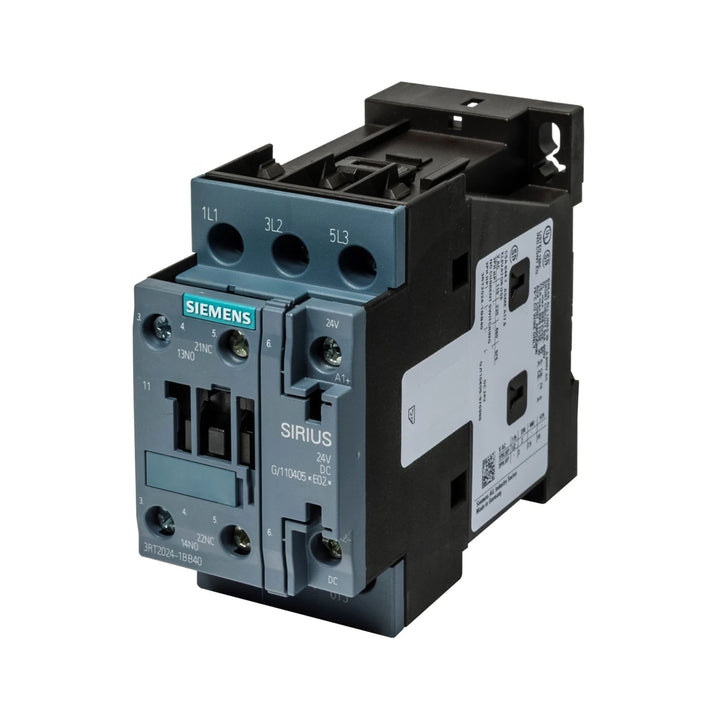

The Siemens 3RT2024-1BB40 is a power contactor from the SIRIUS series, designed for reliable motor switching in industrial control applications. It is rated for 12 A and 5.5 kW at 400 V in AC-3 duty. The contactor operates with a 24 V DC coil and includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact. Its compact S0 size and screw terminal connections facilitate easy integration into control panels.

Key Features:

• Rated Operational Current: 12 A
• Power Rating: 5.5 kW at 400 V (AC-3)
• Number of Poles: 3
• Coil Voltage: 24 V DC
• Auxiliary Contacts: 1 NO + 1 NC
• Terminal Type: Screw terminals
• Size: S0

Technical Specifications:

• Product Type: Power Contactor
• Part Number: 3RT2024-1BB40
• Rated Operational Voltage (Ue): Up to 690 V AC
• Rated Insulation Voltage (Ui): 690 V
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Utilization Category: AC-3
• Mechanical Life: 10 million operating cycles
• Mounting: 35 mm DIN rail
• Dimensions (W x H x D): 45 mm x 97 mm x 97 mm
• Weight: Approximately 0.6 kg
• Operating Temperature Range: -25°C to +60°C
• Compliance: IEC 60947-4-1, CE, UL

Applications:

• Motor Control: Suitable for switching motors up to 5.5 kW at 400 V in AC-3 duty
• Industrial Automation: Ideal for use in automated systems requiring reliable motor control
• Control Panels: Suitable for integration into industrial control panels

Order Now to enhance your motor control systems with the Siemens 3RT2024-1BB40 SIRIUS power contactor.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
