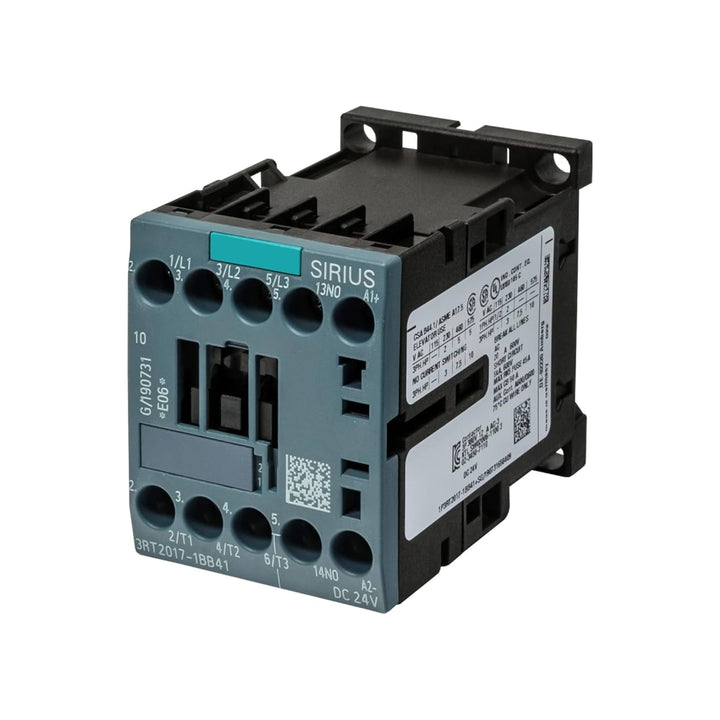

Siemens 3RT2017-1BB41

Siemens 3RT2017-1BB41 | Power Contactor – 12A, 24V DC Coil, 3-Pole, 1NO Auxiliary Contact, Size S00, IP20

Overview

The Siemens 3RT2017-1BB41 is a 3-pole power contactor from the SIRIUS 3RT2 series, engineered for reliable switching of motors and industrial loads. It is rated for 12A at AC-3 (400V) and comes with a 24V DC coil and 1 normally open (NO) auxiliary contact. The compact S00 frame size allows for easy integration into tight control panels.

Key Features

• Rated Current (AC-3): 12A @ 400V

• Rated Power: Up to 5.5 kW (AC-3, 400V)

• Control Voltage: 24V DC

• Auxiliary Contacts: 1 NO built-in

• Main Contacts: 3-pole (3NO)

• Contactor Size: S00

• Mounting: DIN rail or screw mounting

• Protection Rating: IP20

Technical Specifications

• Part Number: 3RT2017-1BB41

• Series: SIRIUS 3RT2

• Terminal Type: Screw terminals

• Electrical Life: Up to 1 million operations (AC-3)

• Mechanical Life: Up to 10 million operations

• Ambient Temperature Range: –25°C to +60°C

• Dimensions (W x H x D): Approx. 45 x 58 x 73 mm

• Weight: Approx. 0.3 kg

• Standards: IEC 60947-4-1, UL, CSA, CE

Applications

• Motor starters (DOL)

• Control panels and switchboards

• HVAC systems, pumps, and compressors

• Automation systems requiring compact power switching

• Auxiliary circuit integration and control feedback

Why Choose the 3RT2017-1BB41?

• Compact S00 Size: Saves panel space

• DC Coil Control: Ideal for low-voltage DC control logic

• Integrated Auxiliary Contact: Reduces need for additional components

• Durable Build: Siemens-engineered for long-lasting reliability

• Flexible Mounting: DIN rail or panel mounting compatible

Order Now

The Siemens 3RT2017-1BB41 contactor is available and ready for international delivery.
