SEW MM03D-503-00

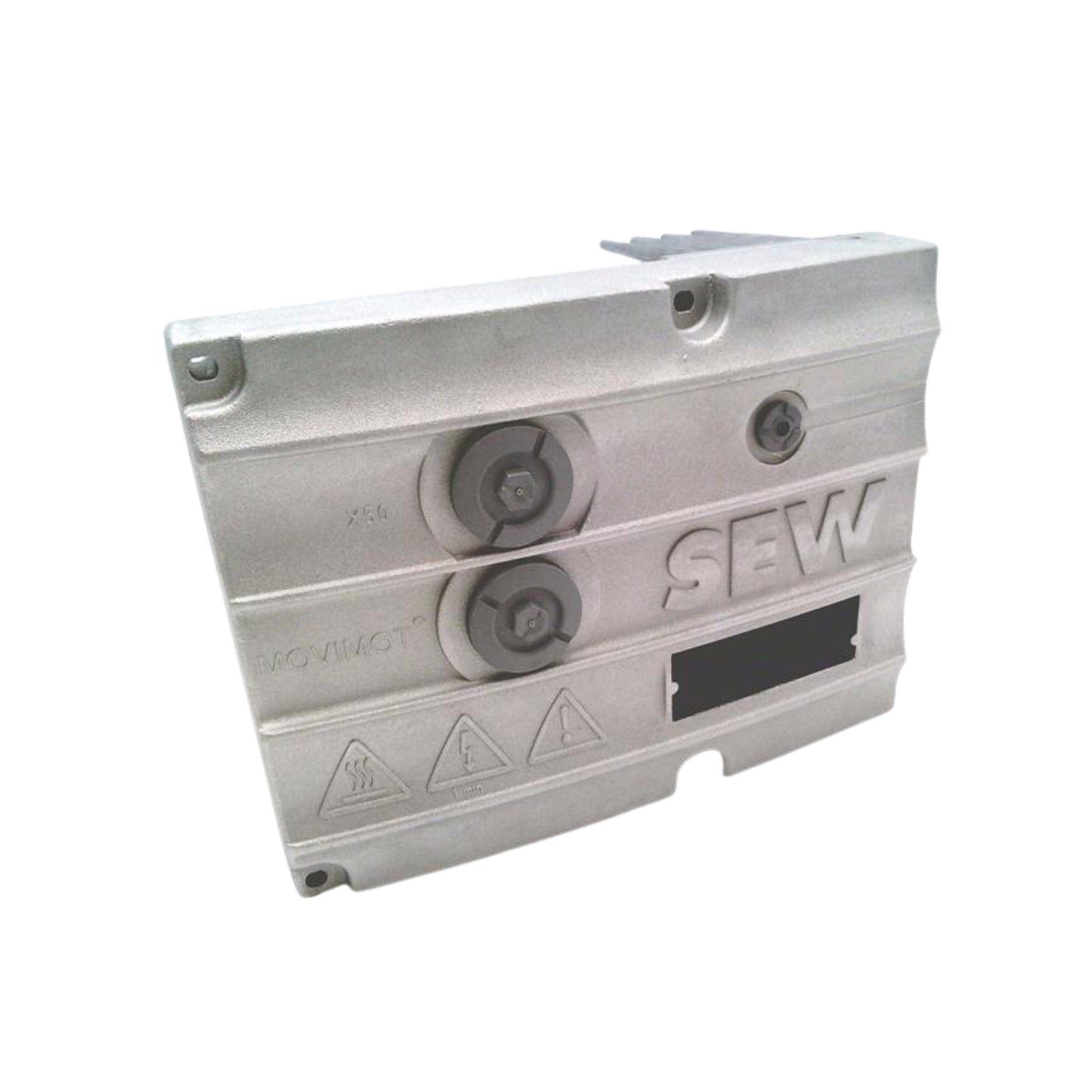

SEW MM03D-503-00 | 0.37 kW Decentralized Inverter for Motor-Mounted Control

Overview

The SEW MM03D-503-00 is a 0.37 kW (0.5 HP) decentralized frequency inverter from the MOVIMOT® D series, designed for direct mounting on SEW gearmotors. Ideal for space-constrained industrial environments, this drive provides flexible and energy-efficient motor control with IP54 protection and integrated control features.

Key Features

• Power Rating: 0.37 kW (0.5 HP)

• Input Voltage: 3-phase 380–500V AC

• Output Voltage: 0–input voltage

• Output Frequency: 2–120 Hz

• Control Method: V/f control

• Protection Class: IP54 (with appropriate terminal box)

• Integrated Functions:

  • Brake control

  • DC braking

  • Programmable digital inputs

  • Optional fieldbus interfaces (PROFIBUS, CANopen, AS-Interface)

• Cooling Method: Natural convection

Technical Specifications

• Model Number: MM03D-503-00

• Series: MOVIMOT® D

• Rated Output Current: ~1.2 A

• Dimensions (H x W x D): Approx. 180 x 120 x 130 mm

• Weight: ~2.0 kg

• Ambient Temperature: -25°C to +40°C

• Mounting Type: Motor flange or wall mounting

• Certifications: CE, UL, CSA

Applications

• Conveyor and transport systems

• Packaging machinery

• Material handling lines

• Modular production systems

• Any space-limited automation setup

Why Choose the MM03D-503-00?

• Decentralized Installation: Reduces cabinet space and wiring cost

• Integrated Design: Combines motor and inverter in one compact unit

• Modular Connectivity: Compatible with SEW fieldbus and IO modules

• Energy Savings: Efficient operation for small motors

• Industrial Protection: IP54 rating ensures durability in tough environments

Order Now

The SEW MM03D-503-00 decentralized drive is available for global delivery.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
