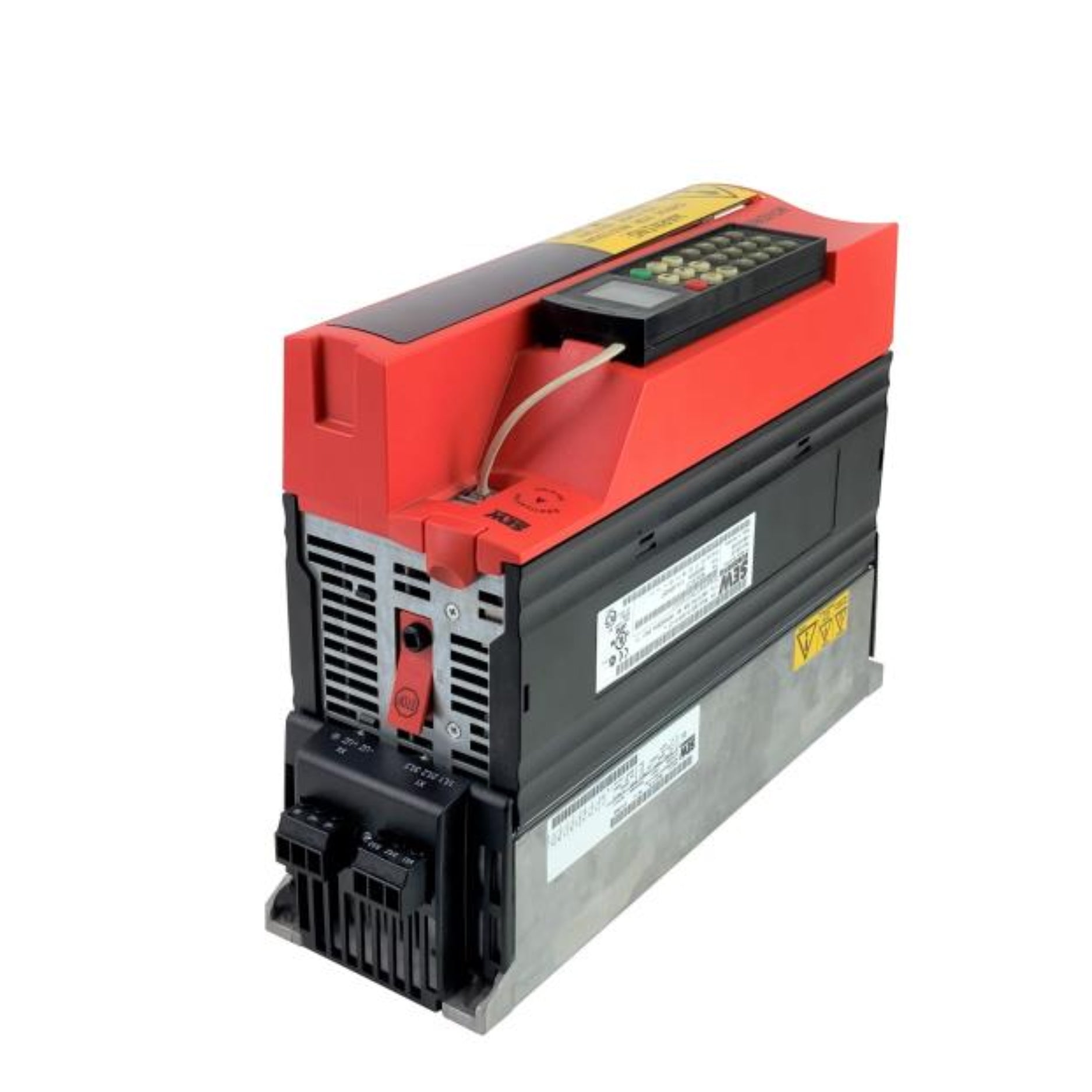

SEW MDX61B0015-5A3-4-0T

SEW MDX61B0015-5A3-4-0T

Overview

The SEW MDX61B0015-5A3-4-0T is a modular servo inverter from the MOVIAXIS® MDX61B series, designed for precise motion control in multi-axis applications. With 1.5 kW output power, it offers flexible and dynamic control of servo motors, ideal for demanding automation systems.

Key Features

• Rated Power: 1.5 kW

• Input Voltage: 3-phase 380–500V AC

• Output Voltage: 0–500V AC

• Rated Output Current: Approx. 4.2 A

• Control Type: Servo and positioning control with integrated motion functions

• Modular Design: Can be integrated into multi-axis systems

• Cooling: Integrated fan cooling

• Protection Class: IP20

• Safety Functions: STO (Safe Torque Off) and optional SLS, SS1, etc.

• Fieldbus Support: Profibus, EtherCAT, CANopen, and more (via optional modules)

Technical Specifications

• Model Number: MDX61B0015-5A3-4-0T

• Inverter Type: Axis inverter module

• Nominal Output Frequency: Up to 500 Hz

• Switching Frequency: Programmable up to 16 kHz

• Mounting: Control cabinet (vertical)

• Cooling Type: Forced air

• Dimensions (H x W x D): Approx. 340 x 70 x 260 mm

• Weight: Approx. 4.5 kg

• Certifications: CE, UL, cUL, RoHS

Applications

• Robotics and handling systems

• Packaging machinery

• Printing and converting lines

• Machine tools

• Multi-axis conveyor solutions

Why Choose the MDX61B0015-5A3-4-0T?

• Precise Motion Control: Advanced positioning and dynamic drive response

• Modular System Integration: Easily expandable for complex systems

• Compact Size: Saves cabinet space while delivering high functionality

• Flexible Communication: Supports a wide range of fieldbus protocols

• Compliant & Safe: Supports integrated safety functions

Order Now

The SEW MDX61B0015-5A3-4-0T servo inverter is available for international delivery.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
