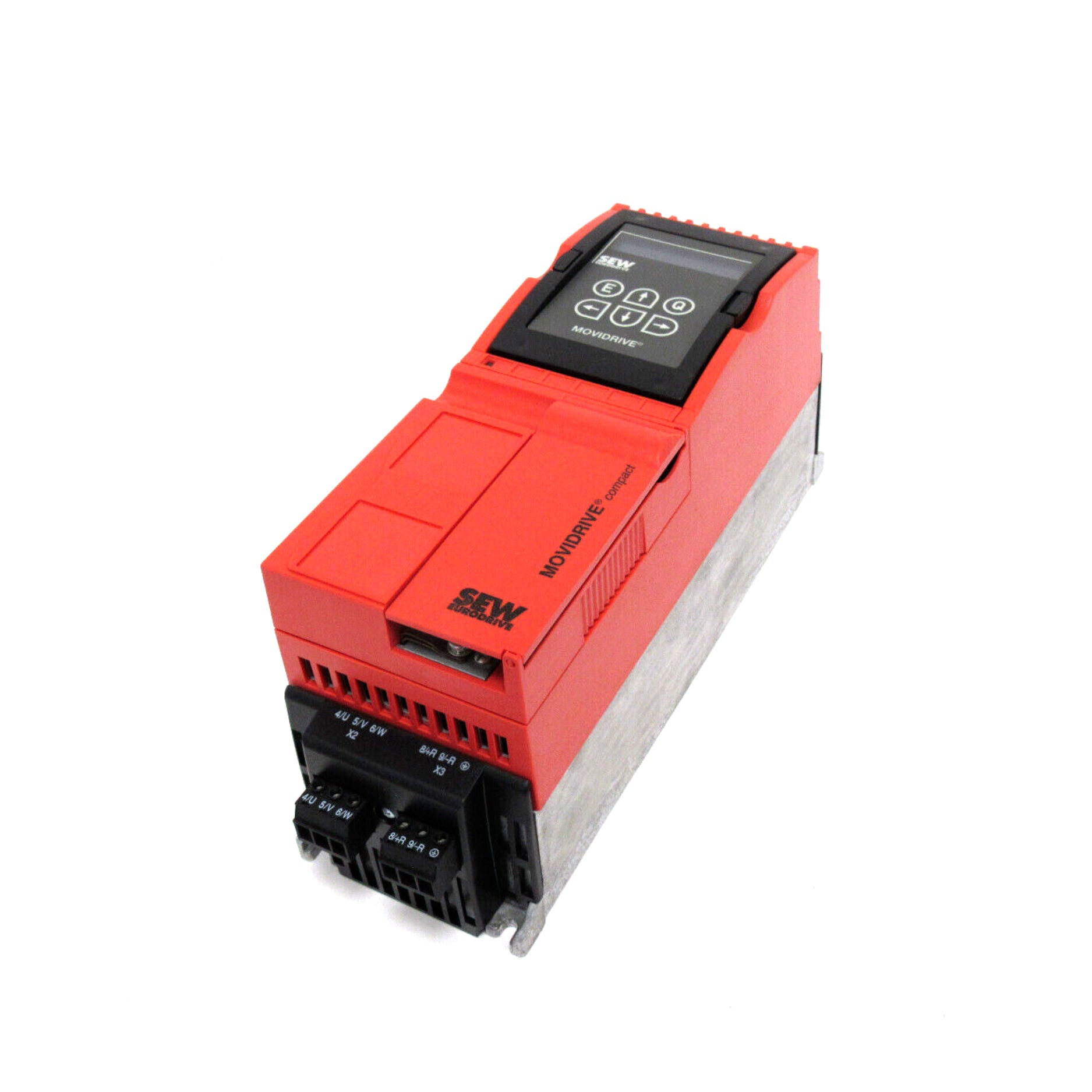

SEW MDX60A0015-5A3-4-00

SEW MDX60A0015-5A3-4-00 | 1.5 kW Frequency Inverter | MOVIDRIVE® MDX60A Series | 3-Phase 400V | IP20 | Modular Design

Overview

The SEW MDX60A0015-5A3-4-00 is a 1.5 kW (2 HP) frequency inverter from the MOVIDRIVE® MDX60A series, designed for precise and dynamic control of asynchronous motors in various industrial applications. Its modular design allows for flexible integration with optional communication and encoder modules, enhancing its adaptability to complex automation systems.

Key Features

• Power Rating: 1.5 kW (2 HP)

• Input Voltage: 3-phase 380–500V AC

• Output Voltage: 0–Uin AC

• Output Frequency: 0–599 Hz

• Control Modes: VFC (Voltage Frequency Control)

• Protection Class: IP20 (panel-mountable)

• Cooling System: Forced ventilation with temperature-controlled fan

• Integrated Functions:

  • Brake chopper

  • PID controller

  • Flying restart

  • Programmable I/Os

  • Limit switch logic

• Expandable: Optional communication modules (e.g., PROFIBUS, CANopen)

Technical Specifications

• Model Number: MDX60A0015-5A3-4-00

• Rated Output Power: 1.5 kW

• Rated Output Current: Approx. 4.0 A

• Switching Frequency: Adjustable, up to 16 kHz

• Dimensions (H x W x D): ~315 mm x 105 mm x 273 mm

• Weight: ~3.5 kg

• Operating Temperature: 0°C to +50°C

• Certifications: CE, UL, CSA

Applications

• Conveyor systems

• Packaging machines

• Pumps and fans

• Material handling equipment

• General industrial automation

Why Choose the MDX60A0015-5A3-4-00?

• Versatile Control: Supports VFC mode for various applications

• Compact Design: Saves space in control cabinets

• Flexible Integration: Compatible with multiple communication protocols

• Energy Efficient: Optimized motor control reduces energy consumption

• Service-Friendly: Easy setup and diagnostics via keypad or software

Order Now

The SEW MDX60A0015-5A3-4-00 inverter is available for global shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
