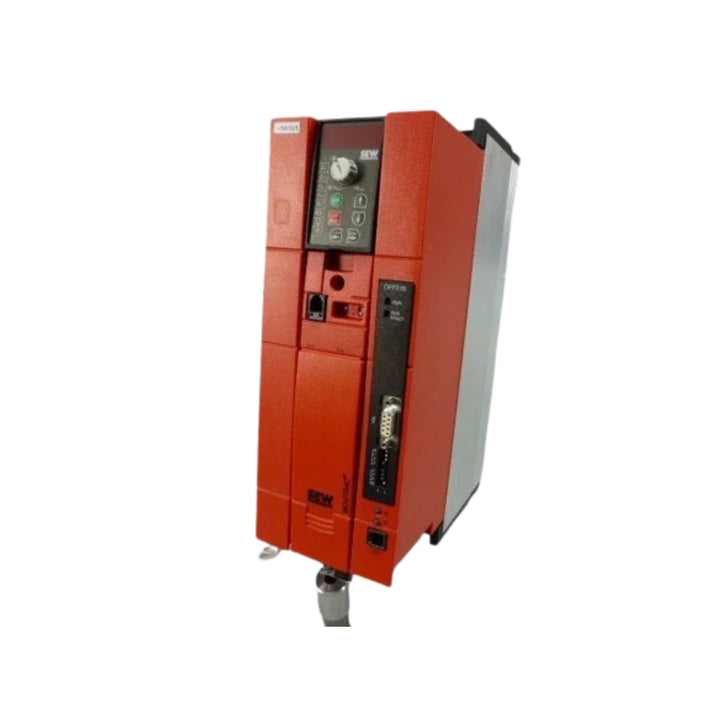

SEW MC07B0055-5A3-4-00

SEW MC07B0055-5A3-4-00

Overview

The SEW MC07B0055-5A3-4-00 is a 5.5 kW frequency inverter from the MOVITRAC® B series, engineered to provide efficient and compact control of asynchronous motors in demanding industrial environments. It supports 3-phase 400V AC input and is ideal for a wide range of automation applications.

Key Features

• Power Rating: 5.5 kW (7.5 HP)

• Input Voltage: 3-phase 380–500V AC

• Output Voltage: 0–500V AC

• Output Frequency: 0–400 Hz

• Control Method: V/f and linear/square-law control curves

• Protection Class: IP20 (panel-mountable)

• Cooling System: Built-in fan cooling

• Integrated Functions:

  • PID controller

  • Brake chopper

  • DC braking

  • Flying restart

  • Programmable I/Os

  • Limit switch logic

• Expandable: Optional fieldbus interfaces (Profibus, CANopen, DeviceNet)

Technical Specifications

• Model Number: MC07B0055-5A3-4-00

• Rated Output Power: 5.5 kW

• Rated Output Current: Approx. 13.5 A

• Switching Frequency: Adjustable, up to 8 kHz

• Dimensions (H x W x D): ~261 mm x 130 mm x 173 mm

• Weight: ~3.7 kg

• Operating Temperature: -10°C to +50°C

• Certifications: CE, UL, CSA

Applications

• Material handling systems

• Industrial conveyors

• Fans and pumps

• Packaging lines

• General industrial automation

Why Choose the MC07B0055-5A3-4-00?

• Proven Durability: Engineered for harsh environments

• Compact Footprint: Saves space in control cabinets

• Flexible Integration: Expandable with communication modules

• Energy Efficient: V/f control supports optimized motor use

• Service-Friendly: Easy setup and diagnostics via keypad or software

Order Now

The SEW MC07B0055-5A3-4-00 inverter is available for global shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
