Overview

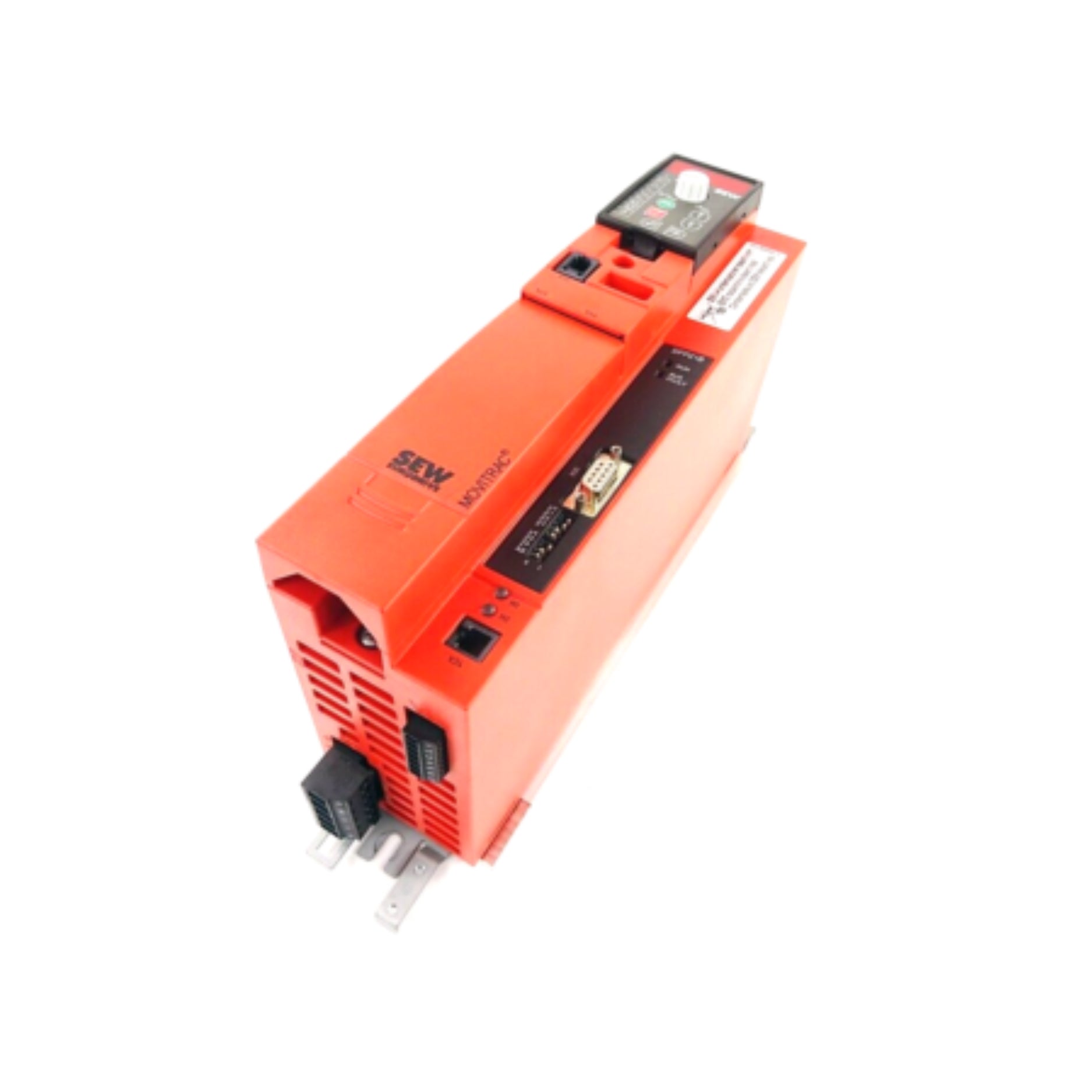

The SEW MC07B0040-5A3-4-00 is a 4.0 kW MOVITRAC® B series frequency inverter designed for asynchronous motor control in a variety of industrial applications. Engineered for reliability and space efficiency, this compact drive supports 3-phase 380–500V AC inputs and delivers robust V/f performance.

Key Features

• Power Rating: 4.0 kW (5.5 HP)

• Input Voltage: 3-phase 380–500V AC

• Output Voltage: 0–500V AC

• Output Frequency: 0–400 Hz

• Control Type: V/f and linear/square-law characteristics

• Cooling System: Integrated fan cooling

• Enclosure: IP20 protection class (panel mounting)

• Built-in Functions:

  • PID controller

  • DC braking

  • Flying restart

  • Brake chopper

  • Limit switch logic

  • Programmable inputs/outputs

• Fieldbus Options: Expandable with Profibus, CANopen, and DeviceNet modules

Technical Specifications

• Model Number: MC07B0040-5A3-4-00

• Rated Output Power: 4.0 kW

• Rated Output Current: ~10.5 A

• Switching Frequency: Adjustable, up to 8 kHz

• Dimensions (H x W x D): Approx. 261 mm x 130 mm x 173 mm

• Weight: ~3.5 kg

• Ambient Temperature Range: -10°C to +50°C

• Certifications: CE, UL, CSA

Applications

• Conveyor systems

• Pumps and ventilation units

• Packaging and labeling machines

• Light-duty process automation

• General manufacturing equipment

Why Choose the MC07B0040-5A3-4-00?

• Reliable and Compact: Ideal for space-saving industrial cabinets

• Energy Saving: Efficient motor control with optimized speed curves

• Versatile: Suitable for a broad range of automation systems

• Field-Friendly: Quick to install, configure, and maintain

• Expandable: Optional fieldbus integration for flexible connectivity

Order Now

The SEW MC07B0040-5A3-4-00 inverter is available for immediate global shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
