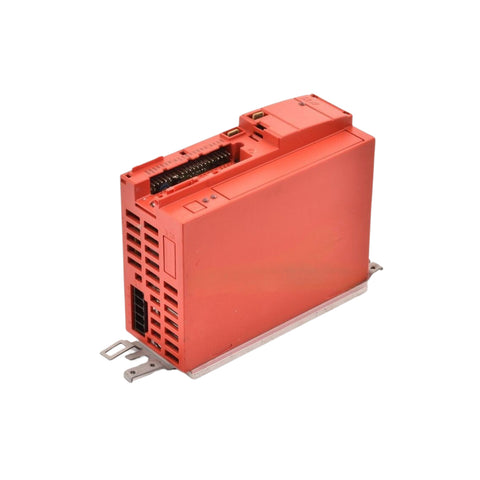

SEW MC07B0008-2B1-4-00

SEW MC07B0008-2B1-4-00 | 0.75 kW Frequency Inverter for Reliable Industrial Motor Control

Overview

The SEW MC07B0008-2B1-4-00 is a 0.75 kW frequency inverter from the MOVITRAC® B series, engineered to provide efficient and compact control of asynchronous motors in demanding industrial environments. It supports 1-phase 230V AC input and is ideal for a wide range of automation applications.

Key Features

• Power Rating: 0.75 kW (1 HP)

• Input Voltage: 1-phase 200–240V AC

• Output Voltage: 0–240V AC

• Output Frequency: 0–400 Hz

• Control Method: V/f and linear/square-law control curves

• Protection Class: IP20 (panel-mountable)

• Cooling System: Built-in fan cooling

• Integrated Functions:

  • PID controller

  • Brake chopper

  • DC braking

  • Flying restart

  • Programmable I/Os

  • Limit switch logic

• Expandable: Optional fieldbus interfaces (Profibus, CANopen, DeviceNet)

Technical Specifications

• Model Number: MC07B0008-2B1-4-00

• Rated Output Power: 0.75 kW

• Rated Output Current: Approx. 4.2 A

• Switching Frequency: Adjustable, up to 8 kHz

• Dimensions (W x H x D): ~80 mm x 185 mm x 163.5 mm

• Weight: ~1.5 kg

• Operating Temperature: -10°C to +50°C

• Certifications: CE, UL, CSA

Applications

• Material handling systems

• Industrial conveyors

• Fans and pumps

• Packaging lines

• General industrial automation

Why Choose the MC07B0008-2B1-4-00?

• Proven Durability: Engineered for harsh environments

• Compact Footprint: Saves space in control cabinets

• Flexible Integration: Expandable with communication modules

• Energy Efficient: V/f control supports optimized motor use

• Service-Friendly: Easy setup and diagnostics via keypad or software

Order Now

The SEW MC07B0008-2B1-4-00 inverter is available for global shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
