Semikron SKD 30/16 A1

Semikron SKD 30/16 A1

Overview

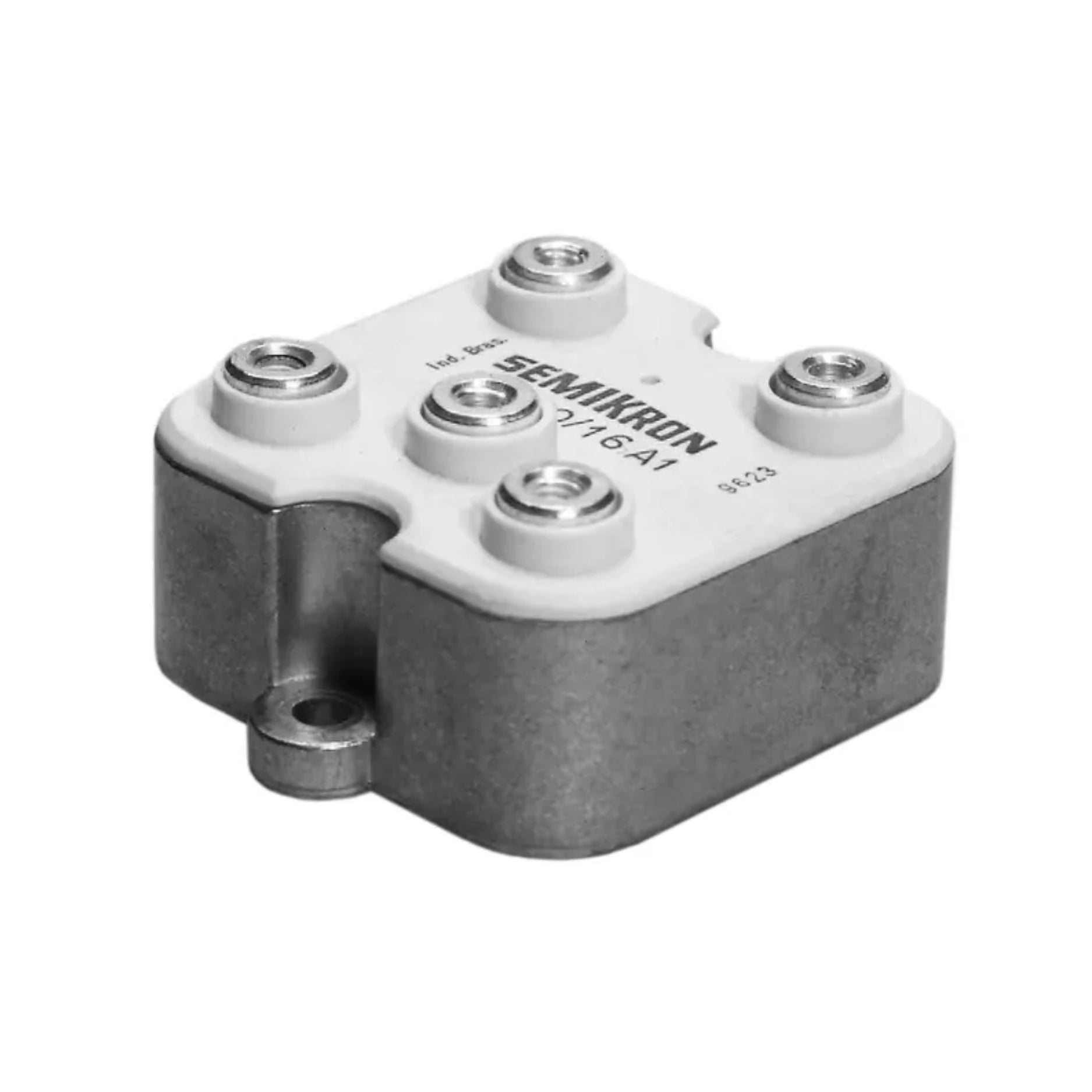

The Semikron SKD 30/16 A1 is a three-phase bridge rectifier module designed for high-reliability rectification tasks in power electronics. Rated for 30 A and blocking voltages up to 1600 V, this compact G13 module features an isolated metal case and screw terminals for simplified mounting and connection. It is UL recognized (file no. E 63 532), making it suitable for demanding industrial environments.

Key Features

• Rated Current: 30 A

• Blocking Voltage: 1600 V

• High surge current capacity: 320 A

• Isolated metal case

• Screw terminal connections

• G13 housing format

• UL recognized

Technical Specifications

• Module Type: Three-phase bridge rectifier

• Technology: Power Bridge

• Topology: Rectifier

• Surge Current (IFSM): 320 A

• Recommended Snubber: RC (0.1 µF, 50 Ω, PR = 1 W)

• Dimensions (L×W×H): 55 × 45 × 24 mm

• Mounting: Chassis mount

• Housing: G13

• Isolation: Electrically isolated base

• Product Status: In production

Applications

• Three-phase rectifiers for power supplies

• Input rectifiers for variable frequency drives (VFDs)

• DC motor field supply rectifiers

• Battery charger rectification systems

Why Choose the SKD 30/16 A1

• Compact and robust design with high blocking voltage

• Easy installation with screw terminal interface

• Suitable for harsh industrial applications

• Backed by Semikron's proven quality and legacy

Order Now

The Semikron SKD 30/16 A1 bridge rectifier module is available and ready for global shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
