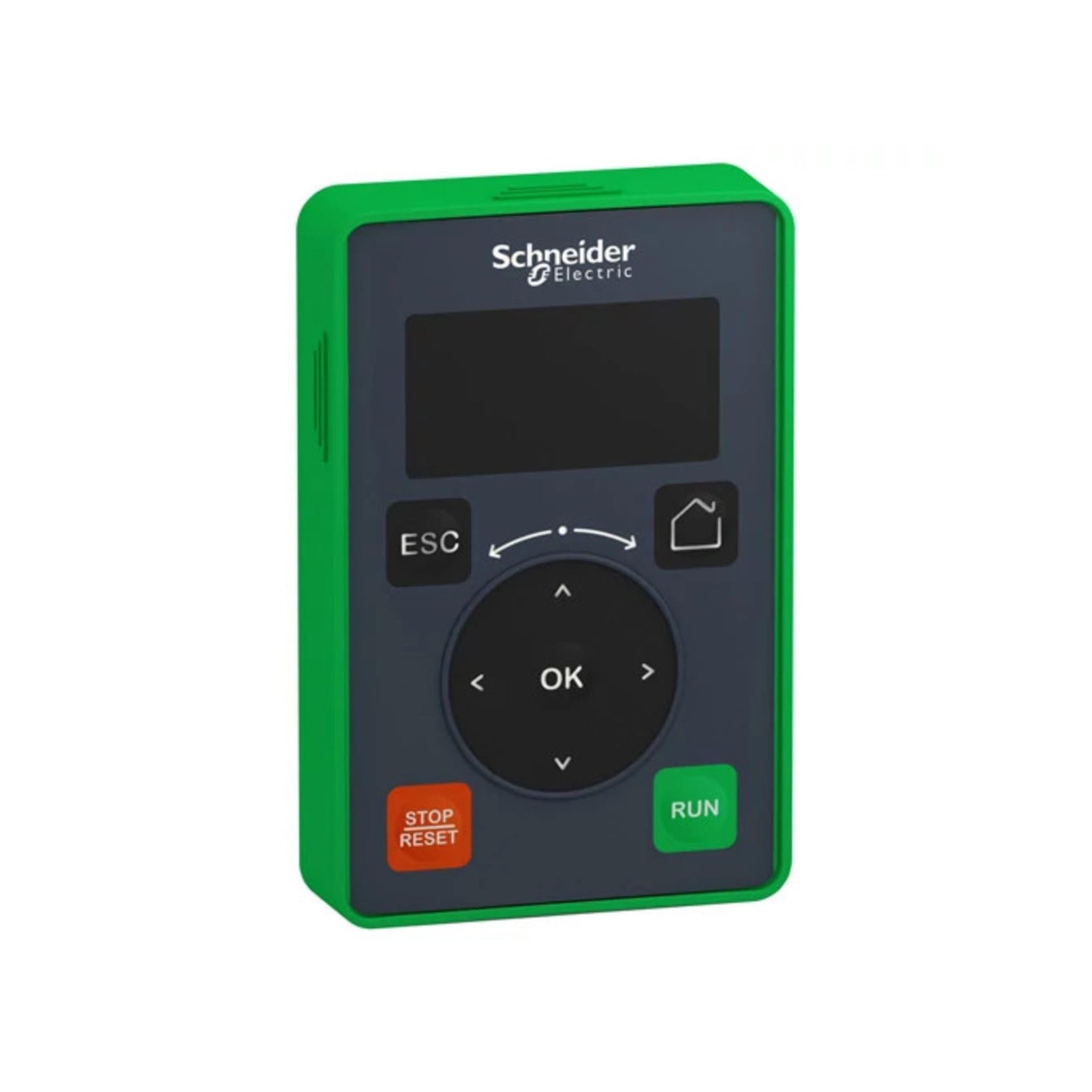

Schneider Electric VW3A1113 | Remote Graphic Display Terminal

Schneider Electric VW3A1113 | Altivar Graphic Display Terminal (1 m Cable)

Overview

The Schneider Electric VW3A1113 is a remote graphic display terminal designed for use with Altivar variable speed drives. It allows remote configuration, real-time monitoring, and diagnostics of the drive’s status. Supplied with a 1-meter cable, it is ideal for panel door mounting, making drive management more accessible and efficient in industrial settings.

Key Features

• Display: Backlit LCD graphic screen

• Functions:

  • Read/write drive parameters

  • Monitor status and faults

  • Navigate menus easily with keypad

• Cable Length: 1 meter (included)

• Mounting Options:

  • Door/panel mounting

  • Remote access outside enclosures

• Keypad: Arrow keys, OK, ESC, and menu navigation

• Power Supply: Powered directly from the drive via RJ45

Technical Specifications

• Model: VW3A1113

• Compatible Drives: Altivar 12, 212, 312, 32, 61, 71, 340, 630, 930

• Communication: RJ45 port connection

• Display Type: LCD, text-based with navigation keys

• Operating Temperature: -10°C to +50°C

• Protection Rating: IP54 (when mounted properly on panel)

• Dimensions (W x H x D): Approx. 72 mm x 72 mm x 35 mm

• Weight: Approx. 0.2 kg

Applications

• Drive Configuration in Control Panels

• Operator Interfaces for Drives

• Remote Fault Diagnosis and Monitoring

• Industrial Automation Systems

Why Choose the Schneider Electric VW3A1113?

• Convenient Remote Access to Drives

• Easy-to-Use Navigation and Clear Display

• Ideal for Door Mounting in Panels

• Enhances Drive Operation and Troubleshooting Efficiency
