Schneider Electric VW3A1101 | Altivar Remote Graphic Display Terminal

Overview

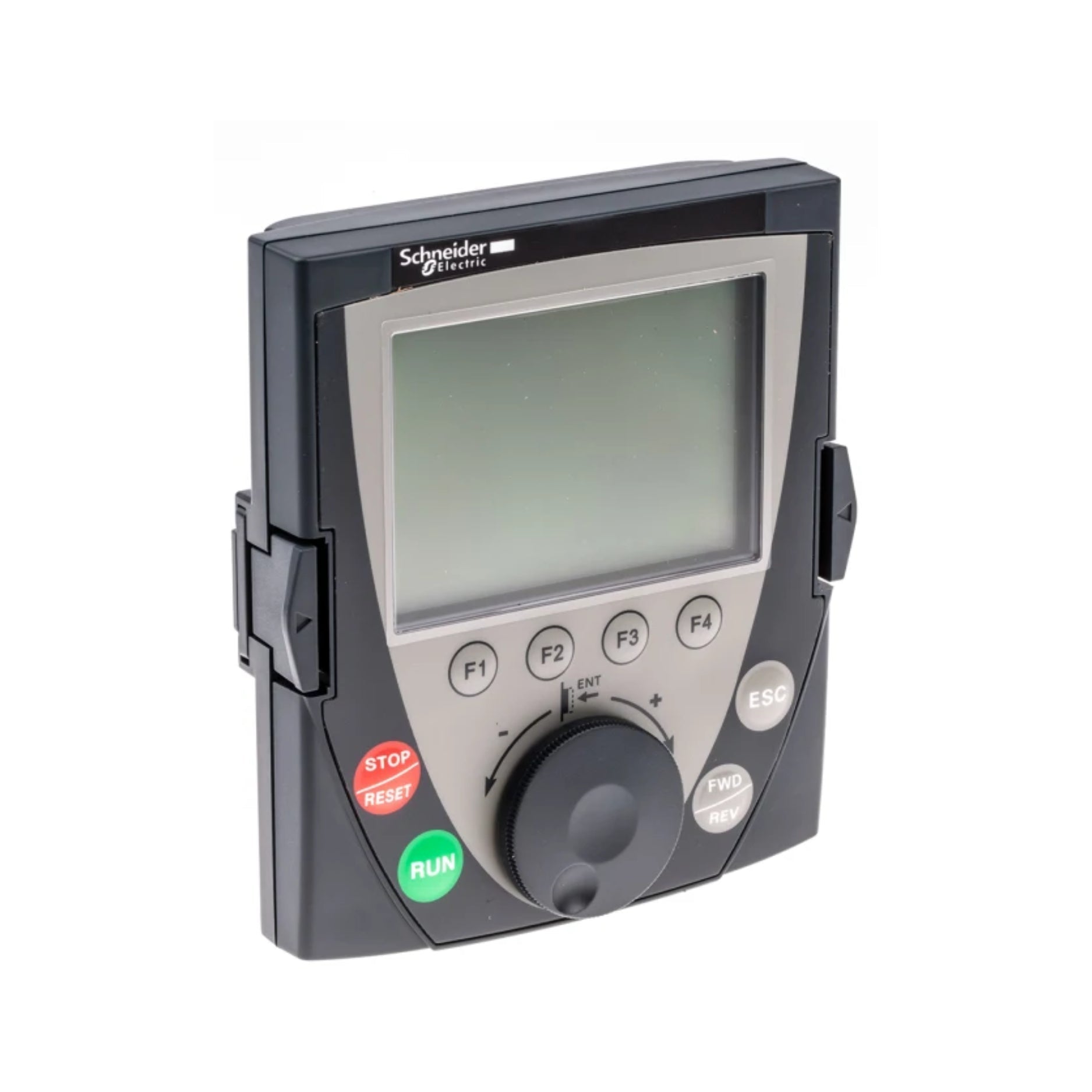

The Schneider Electric VW3A1101 is a remote graphic display terminal designed for use with Altivar variable speed drives (including ATV312, ATV32, ATV61, ATV71, ATV340, and others). It allows users to remotely monitor, configure, and control the drive through an intuitive LCD interface with navigation keys, ideal for control panel integration.

Key Features

• Display Type: LCD with backlight

• Functionality:

  • Display drive status and parameters

  • Modify configuration settings

  • Access diagnostics and fault logs

• Interface:

  • Navigation keys (arrow keys, OK, ESC)

  • LED indicators for communication and status

• Connection Cable: Supplied with RJ45 connector (length varies)

• Mounting Options:

  • Panel door mounting

  • Direct drive mounting (if applicable)

• Compatibility:

  • Altivar 12 / 212 / 312 / 32 / 61 / 71 / 340 / 630 / 930

Technical Specifications

• Model: VW3A1101

• Power Supply: Powered via RJ45 connection from drive

• Operating Temperature: -10°C to +50°C

• Protection Rating: IP54 (front panel when properly mounted)

• Dimensions (W x H x D): Approx. 72 mm x 72 mm x 35 mm

• Weight: Approx. 0.2 kg

Applications

• Remote Motor Control Panels

• Drive Configuration in Difficult-to-Reach Areas

• Industrial Automation Systems

• Operator Interfaces for Altivar Drives

Why Choose the Schneider Electric VW3A1101?

• User-Friendly Interface for fast configuration and diagnostics

• Remote Access to drive parameters and control

• Compact and Panel-Mountable Design

• Enhances Safety and Convenience in Control Environments
