Schneider Electric TM3DI16G

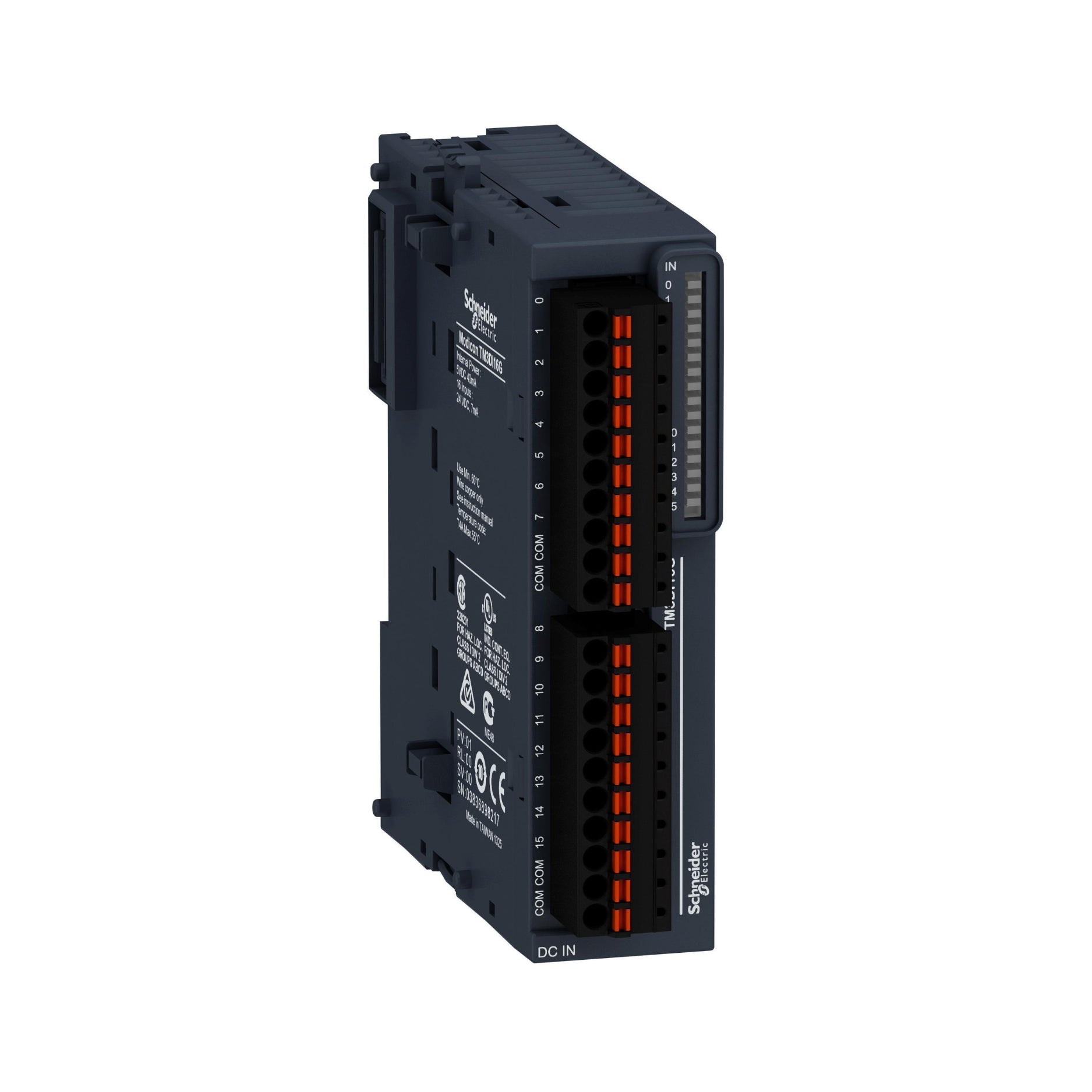

Schneider Electric TM3DI16G | 16-Channel Digital Input Module – Spring Terminal

Overview

The Schneider Electric TM3DI16G is a 16-channel digital input module from the Modicon TM3 expansion I/O range, equipped with spring terminals for tool-free wiring. Designed for M221, M241, and M251 PLCs, it offers fast, reliable input signal acquisition in a compact and easy-to-mount format.

Key Features

• Number of Inputs: 16

• Input Voltage: 24V DC (sink/source compatible)

• Connection Type: Spring terminals for quick, secure wiring

• Status Indication: Individual LED per input channel

• Mounting: DIN rail

• Module Type: TM3 expansion module

• Compatibility: Modicon TM221, TM241, TM251 logic controllers

Technical Specifications

• Model: TM3DI16G

• Series: Modicon TM3

• Input Voltage Range: 19.2–30 V DC

• Input Current: Approx. 3 mA at 24V DC

• Isolation: 500 V between input channels and logic circuit

• Response Time: ON/OFF ≤ 4.5 ms

• Power Consumption: Approx. 20 mA at 3.3V DC from TM3 bus

• Protection Rating: IP20

• Operating Temperature: 0°C to +55°C

• Dimensions (W x H x D): 45 mm x 90 mm x 70 mm

• Weight: Approx. 0.18 kg

Applications

• Industrial Machine Control Panels

• OEM Equipment Automation

• Building and Process Automation

• Signal Acquisition and Monitoring

Why Choose the Schneider Electric TM3DI16G?

• Efficient 16-Channel Input Expansion

• Spring Terminals for Tool-Free Wiring

• Compact and DIN Rail Mountable

• Ideal for Fast Integration with Modicon PLCs

Order Now

Fast shipping and worldwide delivery available.

Return to the Schneider Electric Modicon TM3 Expansion I/O Modules collection.

Explore our complete range of Schneider Electric PLCs to find scalable, flexible, and reliable automation solutions for diverse industrial applications.

New:

New product in original sealed packaging. The product may be of an older version or design. Packaging may show markings, discoloration, or signs of wear due to storage.

Refurbished:

Refurbished product fully tested, cleaned, and verified for proper operation. Not in original packaging. The item may show minor cosmetic signs resulting from previous handling or use.

Warranty:

DDPARTSSOLUTION Warranty: 1 Year.

Manufacturer’s warranty and support DO NOT apply.
