ABB PSR37-600-70 | Softstarter | 37 A | 1SFA896110R7000

ABB PSR37-600-70 | 37 A Softstarter – 208 to 600 V AC, Compact 2-Phase Control

Global Commercial Alias: PSR37-600-70
Extended Product Type: PSR37-600-70
Product ID: 1SFA896110R7000
ABB Type Designation: PSR37-600-70
EAN: 7320500338322
Catalog Description:
PSR37-600-70 Softstarter - 37 A - 208 ... 600 V AC

Overview

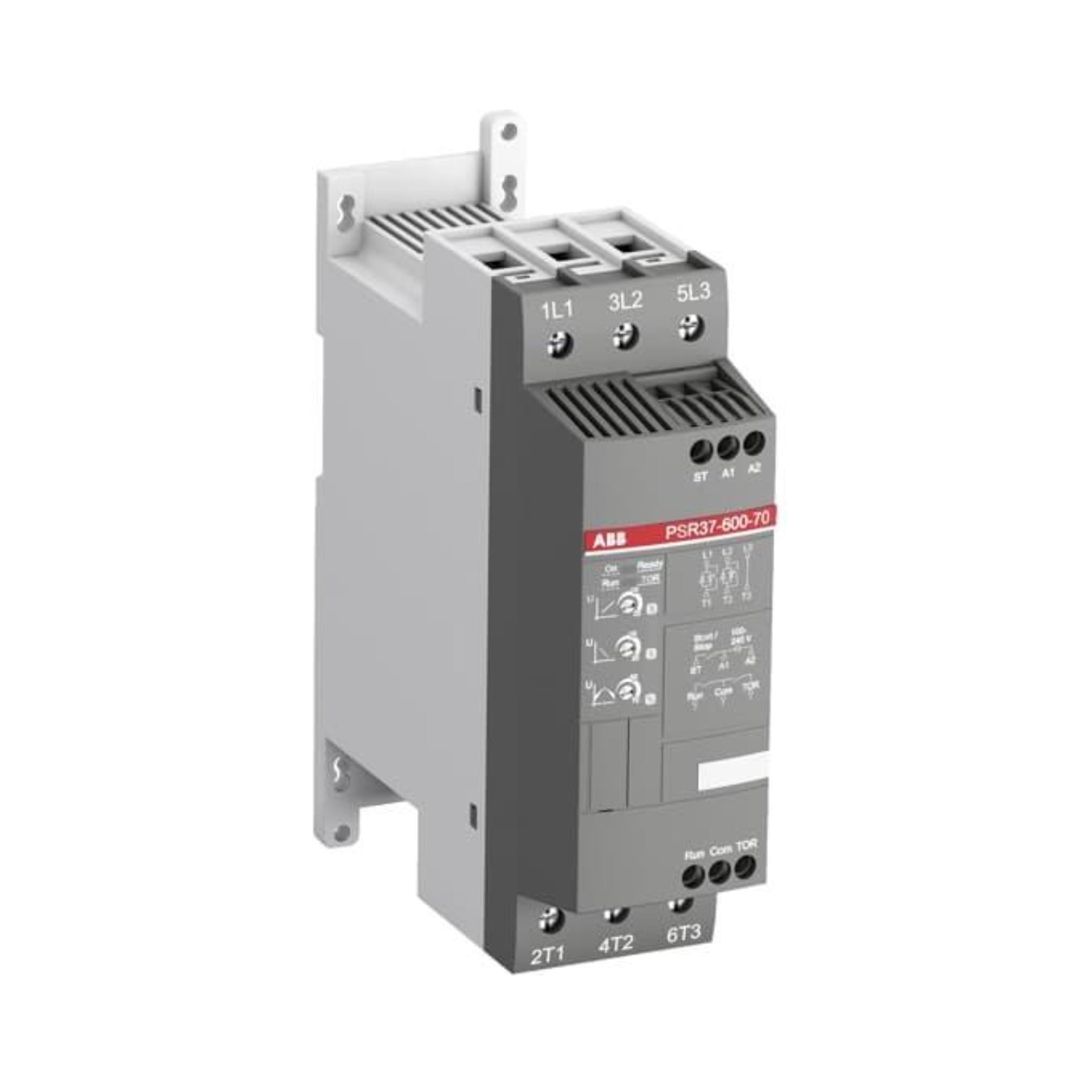

The ABB PSR37-600-70 is a compact softstarter designed for three-phase motors with a rated operational current of 37 A. Operating from 208 to 600 V AC, it features two-phase control with a built-in bypass and adjustable start/stop ramps. This softstarter simplifies motor starting, reduces mechanical stress, and saves energy.

Key Features

• Rated Operational Current: 37 A

• Operating Voltage: 208–600 V AC

• Control Voltage: 100–240 V AC (50/60 Hz)

• Control Type: Two-phase voltage ramp (start/stop)

• Built-in Bypass: Reduces heat and energy loss

• Adjustable Start/Stop: 3 potentiometers on front panel

• Relay Outputs: RUN and TOR (normally open)

• Maximum Starts per Hour: 100

• Fieldbus Ready: Optional via external adapter

• Compact Size: Ideal for space-limited installations

• Mounting: DIN rail or screw mounting

• Mechanical Accessory Options: Compatible with ABB MMS kits

Technical Specifications

• Model Number: PSR37-600-70

• Series: PSR Compact Softstarters

• Rated Current: 37 A

• Voltage Range: 208–600 V AC

• Control Voltage: 100–240 V AC

• Frequency: 50/60 Hz

• Ramp Time: Adjustable

• Built-in Bypass: Yes

• Outputs: 2 relay signals (RUN, TOR)

• Protection Rating: IP20

• Operating Temp: -25°C to +60°C

• Standards: IEC/EN 60947-4-2

• Dimensions (H x W x D): Approx. 145 mm x 45 mm x 114 mm

• Weight: Approx. 0.7 kg

Applications

• Pumps

• Fans

• Compressors

• Conveyors

• General-purpose motor-driven systems in compact panels

Product Description

The PSR37-600-70 is part of ABB’s compact softstarter series, designed for smooth motor starting with reduced energy waste. Its built-in bypass saves space and wiring while allowing up to 100 starts per hour. The front panel offers quick setup using three potentiometers for ramp time and duration. Fieldbus integration is available via optional accessories.

Why Choose ABB PSR37-600-70

• Simple configuration with onboard controls

• Integrated bypass enhances efficiency

• Space-saving design with wide voltage compatibility

• Reliable performance in demanding industrial setups

• Compatible with ABB manual motor starters and fieldbus kits
