Allen-Bradley 25A-D2P3N104

Allen-Bradley 25A-D2P3N104 | Compact Variable Frequency Drive for Basic Motor Control

Overview

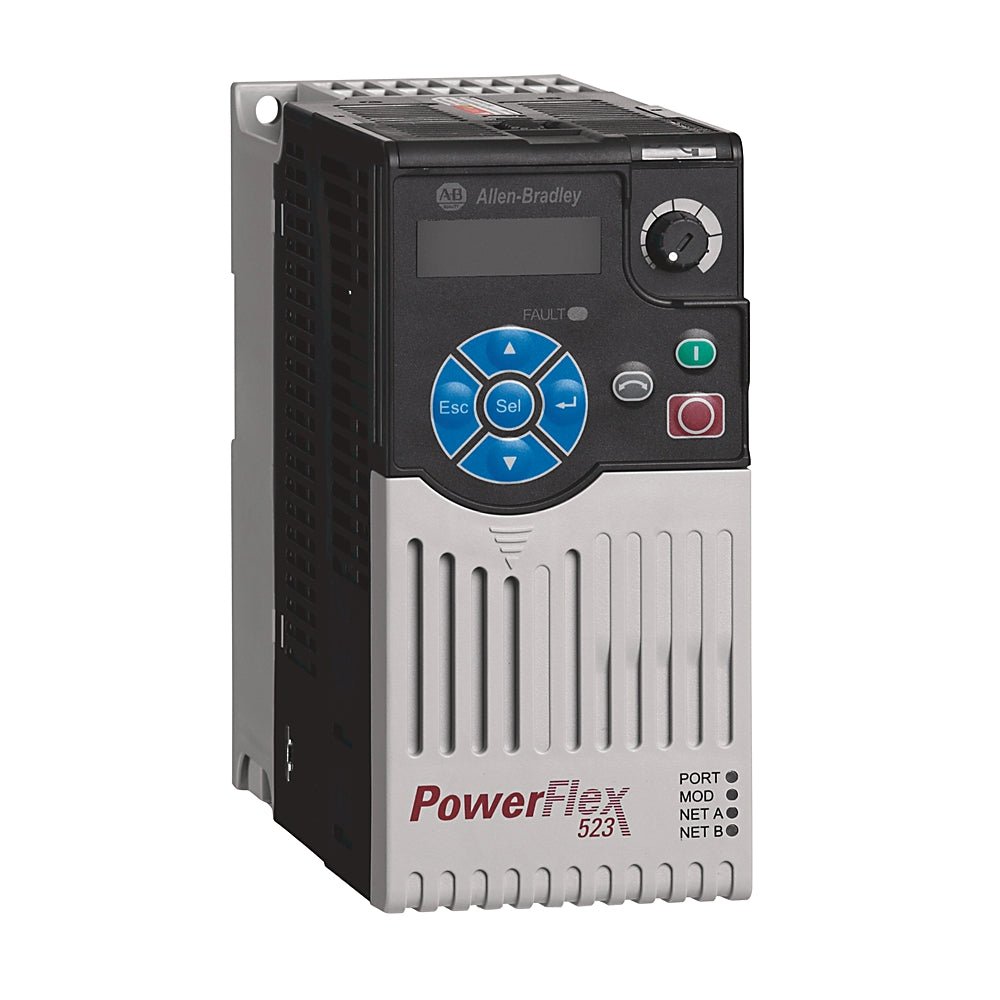

The Allen-Bradley 25A-D2P3N104 is a PowerFlex 523 AC drive designed for general-purpose motor control in compact applications. It provides 1 HP (0.75 kW) power for both normal and heavy-duty loads at 480V AC. With sensorless vector control and an IP20 open-type enclosure, it is ideal for OEMs and basic automation systems.

Key Features

• Voltage Input: 480V AC, 3-phase

• Output Current: 2.3 A

• Motor Rating:

  • 1 HP (0.75 kW) Normal Duty

  • 1 HP (0.75 kW) Heavy Duty

• Frame Size: A

• Enclosure Type: IP20 / NEMA Open

• Filter: Not included

• Control Modes:

  • Volts-per-Hertz (V/Hz)

  • Sensorless Vector

• Communication: RS-485 Modbus RTU (standard)

• Programming: Connected Components Workbench (CCW)

• User Interface: Integrated LED keypad

• Mounting: Panel or DIN rail

• Certifications: UL, cULus, CE, RoHS

• Operating Temp: -10°C to 50°C (derating required above)

Technical Specifications

• Catalog Number: 25A-D2P3N104

• Frequency Input: 47–63 Hz

• Frequency Output: 0–500 Hz

• Digital Inputs: 5

• Analog Inputs: 2 (1 voltage, 1 current)

• Relay Outputs: 1

• Analog Outputs: 1

• Dimensions: Refer to Frame A datasheet

• Weight: Refer to datasheet

Applications

• Small conveyors and fans

• OEM panel installations

• Pumps and blowers

• Light-duty machine tools

• Compact process equipment

Why Choose the 25A-D2P3N104?

• Compact and easy to install

• Cost-effective solution for basic VFD needs

• Reliable performance for both light and constant torque loads

• Simplified setup with user-friendly CCW software

Order Now

Available for global delivery.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
