Pilz 774502 | PNOZ XV2 Safety Relay

Pilz 774502 | PNOZ XV2 Safety Relay – Timed Safety Control

Overview

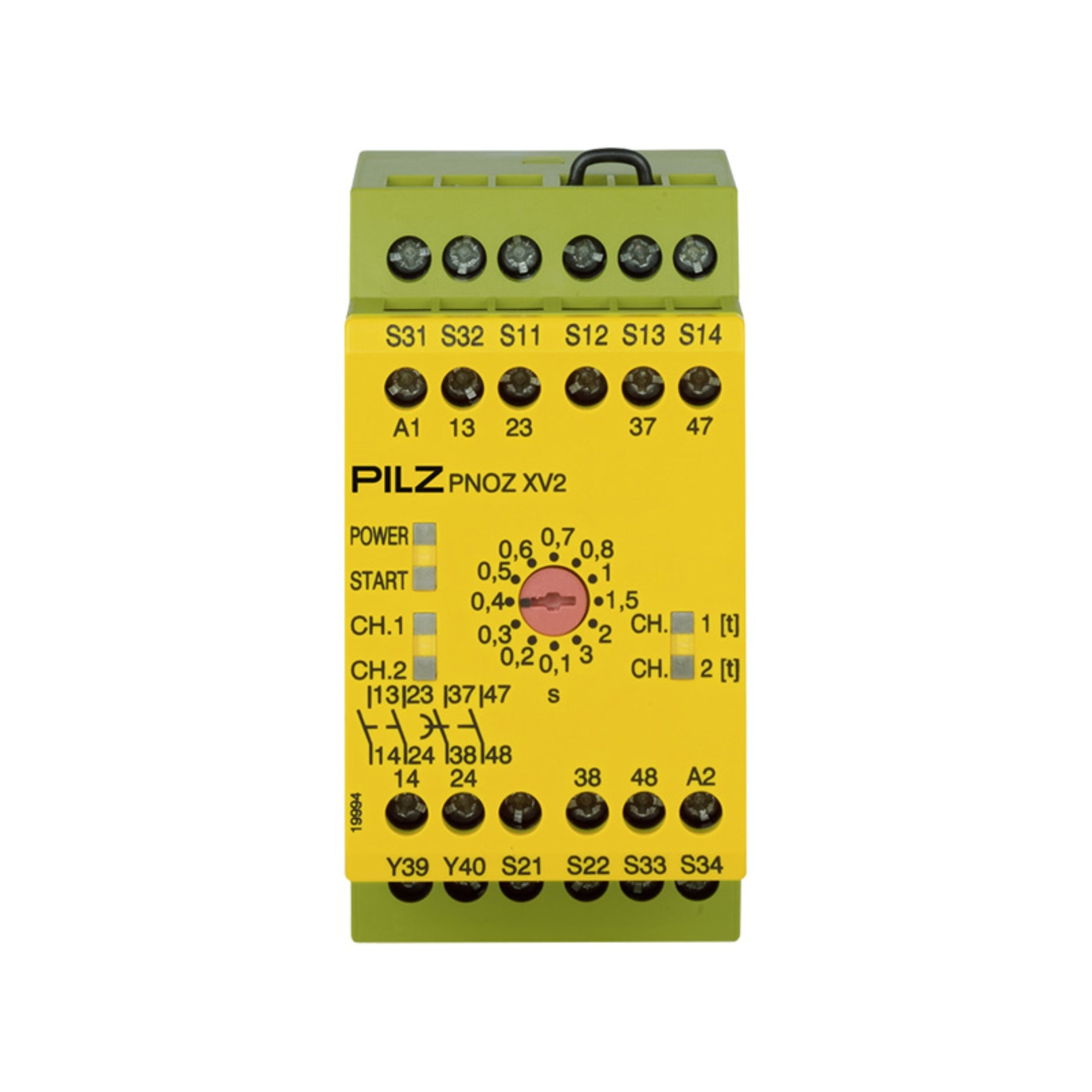

The Pilz 774502 (PNOZ XV2) is a safety relay designed for monitoring emergency stop (E-STOP) functions, safety gates, and limit switches in industrial automation applications. It features both instantaneous and delayed safety contacts, providing flexible control over safety circuits that require timed responses.

Key Features

• 2 Instantaneous Normally Open (N/O) Safety Contacts – Provides immediate disconnection of safety circuits upon activation.
• 2 Delayed Normally Open (N/O) Safety Contacts – Allows for controlled shutdown sequences with adjustable time delays.
• Adjustable Time Delay – Configurable between 0.1 to 3 seconds to suit specific application requirements.
• Single and Dual-Channel Operation – Supports various wiring configurations with or without detection of shorts across contacts.
• LED Status Indicators – Provides clear visual feedback on operational status and diagnostics.
• DIN Rail Mounting – Facilitates easy installation and integration into existing control panels.

Technical Specifications

• Model: 774502
• Series: PNOZ XV2
• Supply Voltage: 24V DC
• Instantaneous Safety Outputs: 2 N/O contacts
• Delayed Safety Outputs: 2 N/O contacts
• Time Delay Range: 0.1 to 3 seconds
• Power Consumption: Approximately 4.5W
• Dimensions (W x H x D): 45 mm x 87 mm x 121 mm
• Operating Temperature: -10°C to +55°C
• Mounting: DIN rail
• Approvals: CE, TÜV, cULus Listed, CCC

Applications

• Emergency Stop Monitoring – Ensures immediate and delayed responses for E-STOP functions.
• Safety Gate Monitoring – Controls access to hazardous areas with timed safety measures.
• Limit Switch Monitoring – Manages machine movements and positions with safety delays.
• Timed Safety Functions – Implements controlled shutdown sequences in automated processes.

Why Choose the Pilz 774502 PNOZ XV2?

• Versatile Timing Functions – Combines instantaneous and delayed safety contacts for flexible control.
• Reliable Safety Performance – Meets international safety standards for dependable operation.
• Easy Integration – Compact design and DIN rail mounting simplify installation in various applications.
• Adjustable Time Delay – Customizable delay settings to match specific safety requirements.

Order Now

Enhance your safety systems with the Pilz 774502 PNOZ XV2 safety relay. Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
