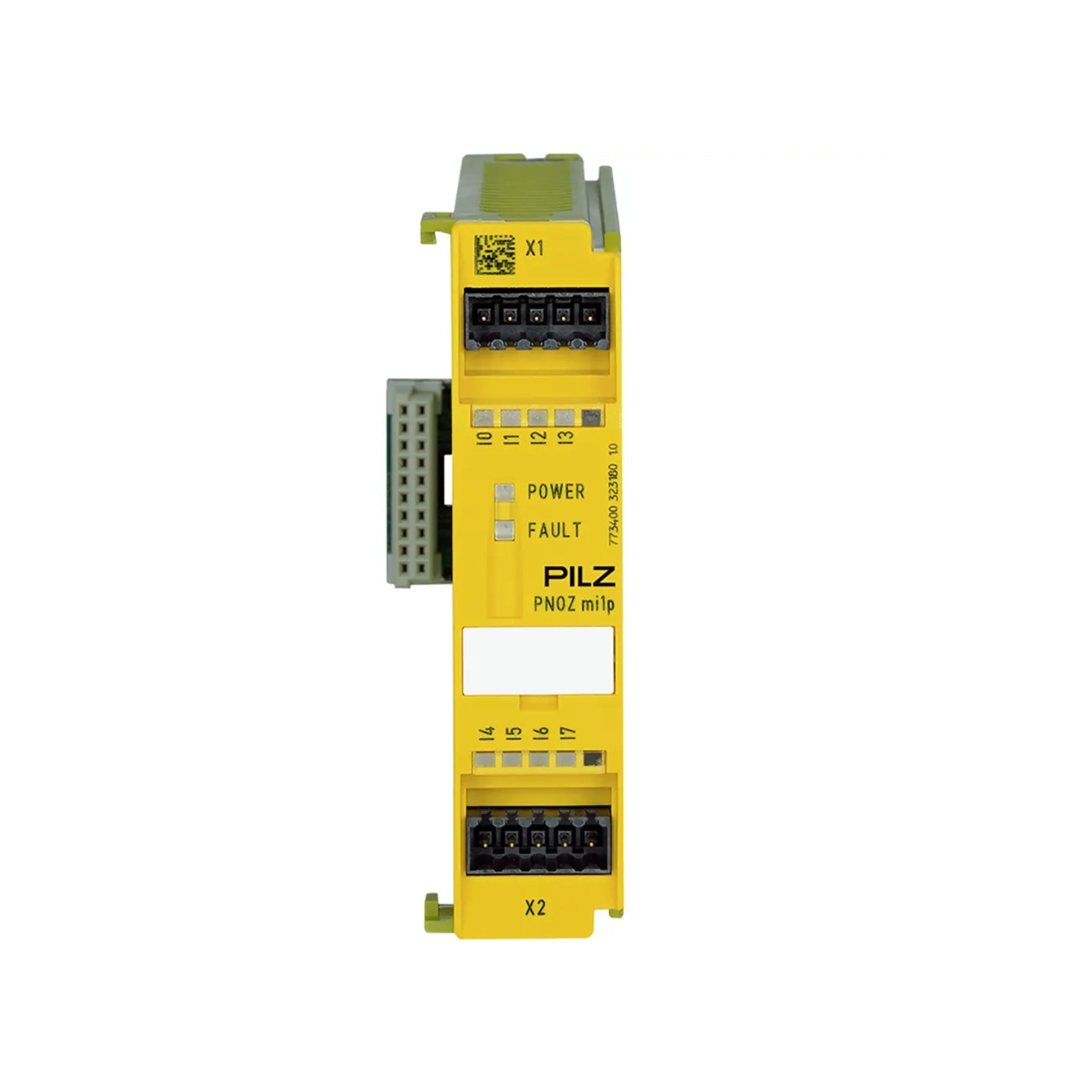

Pilz 773400 | PNOZ mi1p Expansion Module

Pilz 773400 | PNOZ mi1p Expansion Module – 8 Safe Digital Inputs

Overview

The Pilz 773400 (PNOZ mi1p) is an expansion module designed to integrate seamlessly with the PNOZmulti configurable safety system. It provides 8 safe digital inputs, allowing for the connection of various safety devices such as emergency stop buttons, safety gates, light curtains, and more. This module enhances the flexibility and scalability of your safety system, ensuring comprehensive monitoring and protection in industrial automation applications.

Key Features

• 8 Safe Digital Inputs – Allows for the connection of multiple safety devices, enhancing monitoring capabilities.
• Configurable via PNOZmulti Configurator – Facilitates easy setup and customization to meet specific safety requirements.
• Compact Design – Optimized for space-saving installation in control cabinets.
• LED Status Indicators – Provides clear visual feedback on the operational status and diagnostics.
• DIN Rail Mounting – Ensures easy and secure installation within standard electrical enclosures.

Technical Specifications

• Model: 773400
• Series: PNOZmulti Classic
• Supply Voltage: 24V DC (20.4 – 28.8V DC)
• Digital Inputs: 8 safe inputs
• Power Consumption: Approximately 2.5W
• Dimensions (H x W x D): 94 mm x 22.5 mm x 121 mm
• Operating Temperature: 0°C to +60°C
• Mounting: DIN rail
• Approvals: CE, cULus Listed, TÜV, CCC, EAC (Eurasian), KOSHA

Applications

• Industrial Automation Safety – Enhances safety monitoring by accommodating additional input devices.
• Emergency Stop Circuit Expansion – Provides additional inputs for emergency stop functions.
• Safety Gate and Access Control – Allows for the integration of multiple safety gates and access points.
• Machine Safety Systems – Expands the capability to monitor various safety sensors and switches.
• Manufacturing and Assembly Lines – Ensures comprehensive safety coverage across extended production lines.

Why Choose the Pilz 773400 PNOZ mi1p?

• Seamless Integration with PNOZmulti Systems – Compatible with base units from the PNOZmulti system, allowing for flexible safety system expansion.
• Reliable and Certified for Industrial Safety Applications – Meets international safety standards, ensuring dependable operation.
• Flexible Configuration – Easily customizable to suit specific safety requirements through the PNOZmulti Configurator.
• Space-Efficient Design – Compact form factor optimizes control cabinet space.
• User-Friendly Installation – Simplifies the process of expanding safety inputs with clear diagnostics and straightforward mounting.

Order Now

Enhance your safety system's capabilities with the Pilz 773400 PNOZ mi1p expansion module. Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
