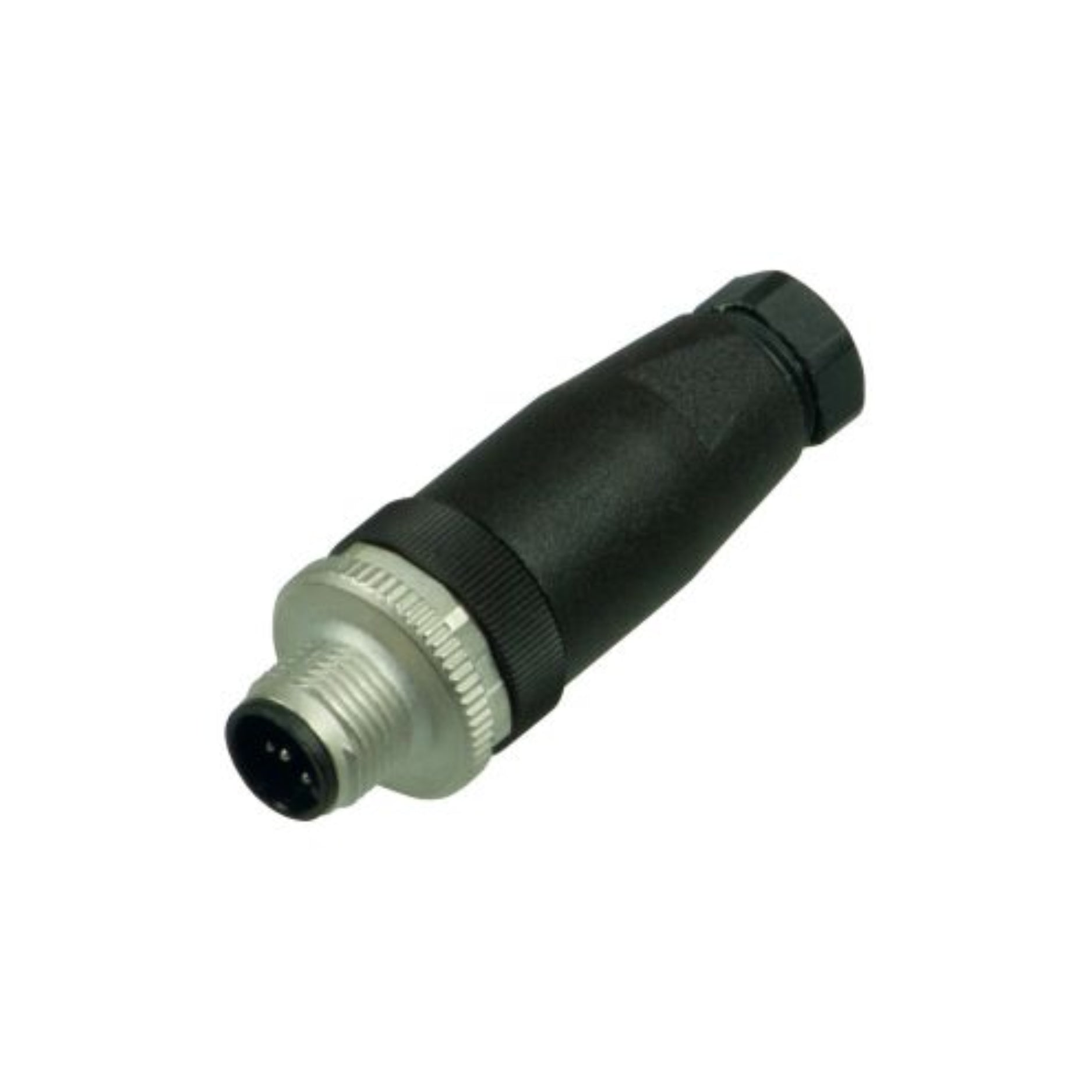

Pepperl+Fuchs V1S-G-BK | M12 Connector, Straight Male, 4-Pin, PG9, Black Housing

Overview:

The Pepperl+Fuchs V1S-G-BK (Part No. 224885) is a straight male M12 connector with a 4-pin configuration and PG9 cable gland. Designed for industrial signal and power transmission, it ensures secure and reliable connection for sensors, actuators, and other automation devices. Its durable black housing provides strong mechanical resistance and supports field assembly with screw termination.

Key Features:

• Connector Type: M12, Straight male

• Pin Configuration: 4-pin (A-coded)

• Termination Type: Screw terminals (field wireable)

• Cable Gland Size: PG9

• Housing Color: Black

• Mounting Style: Field-attachable

• Rated Voltage: 250 V

• Rated Current: 4 A

• Protection Class: IP67 when properly connected

• Wire Size Range: 26–20 AWG

Technical Specifications:

• Model Number: V1S-G-BK

• Part Number: 224885

• Connector Standard: IEC 61076-2-101

• Material – Contact Carrier: PA (Polyamide)

• Material – Contacts: Brass, gold-plated

• Cable Diameter Range: 4–6 mm (PG9)

• Operating Temperature: -25°C to +90°C

• Ingress Protection: IP67 (with appropriate mating connector)

• Wiring Method: Screw clamp terminals

• Color: Black

Applications:

• Sensor/Actuator Connections in factory automation

• Fieldbus Systems requiring M12 connectivity

• Control Cabinets and distributed I/O wiring

• Machine Building and OEM equipment

• Maintenance and Retrofits requiring fast connector replacement

Why Choose the V1S-G-BK?

✅ Field-wireable M12 plug for flexible on-site installation
✅ 4-pin configuration fits most sensor/actuator setups
✅ PG9 gland supports standard cable sizes
✅ Durable black housing withstands harsh conditions
✅ IP67 sealing ensures long-term reliability
