Pepperl+Fuchs V1-G-PG9

Pepperl+Fuchs V1-G-PG9 | M12 Straight Female Connector with PG9 Gland for Field Wiring

Overview

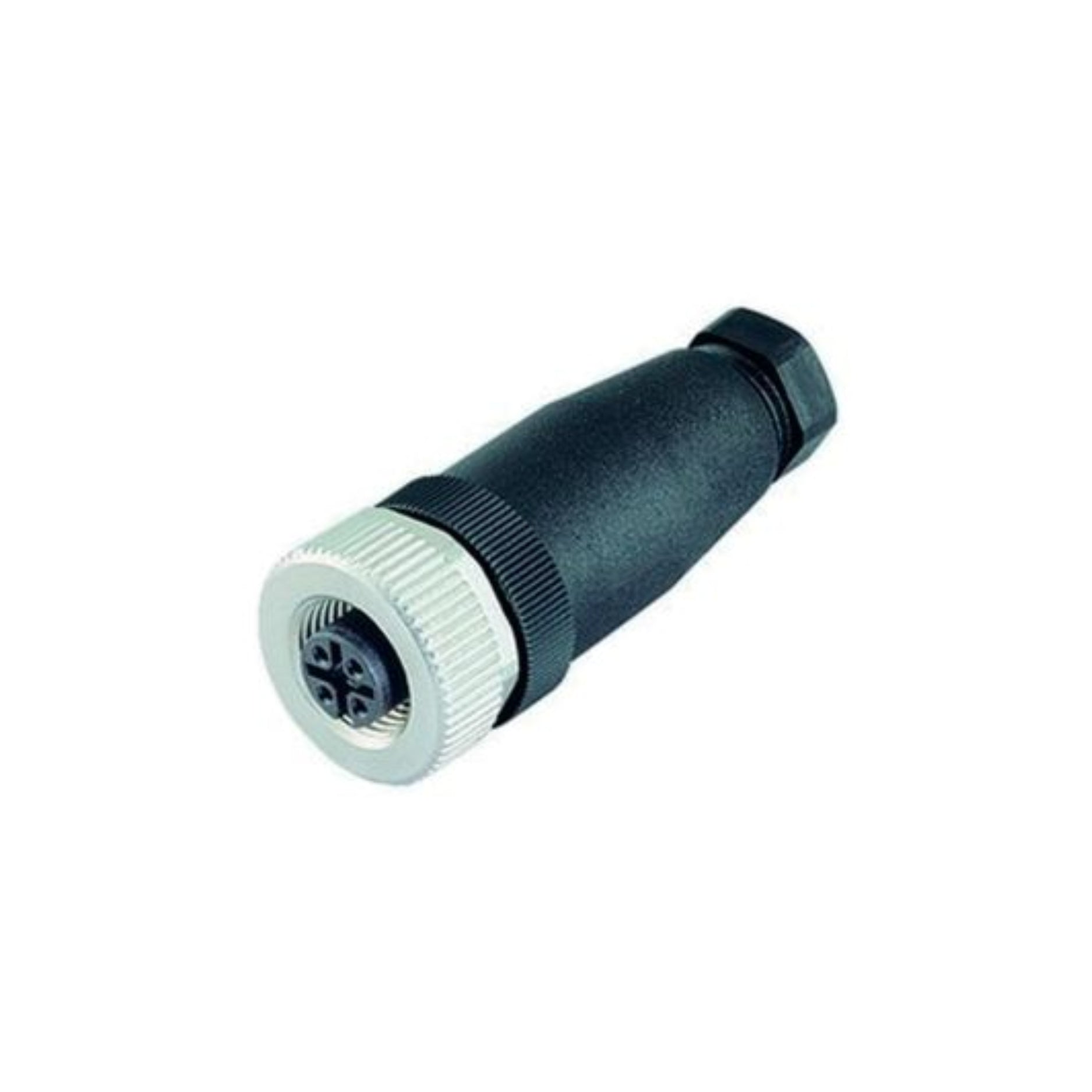

The V1-G-PG9 from Pepperl+Fuchs is a straight M12 female connector with 4-pin screw terminals and a PG9 cable gland, designed for field-attachable wiring in industrial environments. With its IP67-rated housing, it ensures reliable electrical connections even in harsh conditions.

Key Features

• 4-Pin M12 Female Connector – Suitable for sensors, actuators, and automation wiring

• Screw Terminals – Tool-free connection, ideal for field assembly

• PG9 Cable Gland – Secure cable entry for strain relief and sealing

• Straight Orientation – Easy access and compact integration

• IP67 Protection – Dustproof and waterproof for demanding environments

• Wide Compatibility – Works with standard M12 male sensor plugs

Technical Specifications

• Model: V1-G-PG9

• Part Number: 200770

• Connector Type: M12, Female, Straight

• Pin Configuration: 4-pin

• Connection Type: Screw terminals

• Cable Entry: PG9

• Rated Voltage: Up to 250 V AC/DC

• Rated Current: Up to 4 A

• Supported Wire Gauge: Up to 0.75 mm²

• Housing Material: Plastic

• Protection Class: IP67

• Operating Temperature: -25°C to +90°C

Applications

• Sensor and Actuator Field Wiring

• Factory Automation Systems

• Control Cabinets and Panels

• Custom Cable Assemblies

• Maintenance and Repair in Harsh Environments

Why Choose V1-G-PG9?

• Quick and flexible field assembly

• Robust build with reliable sealing

• Trusted Pepperl+Fuchs quality for industrial use
