Pepperl+Fuchs UC800-F77S-IU-IO-V31

Pepperl+Fuchs UC800-F77S-IU-IO-V31 | Compact Ultrasonic Sensor with Analog Output and IO-Link

Overview

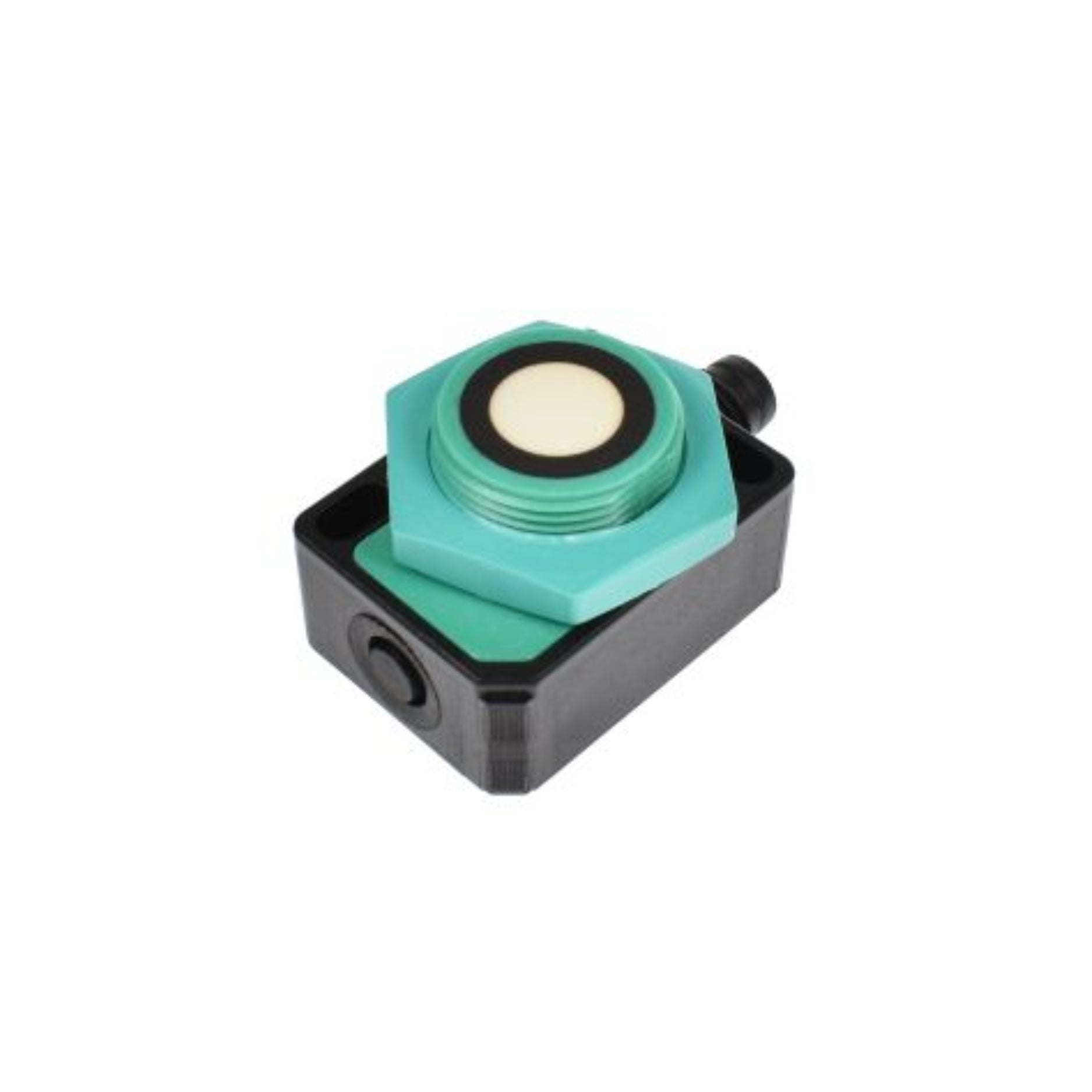

The UC800-F77S-IU-IO-V31 from Pepperl+Fuchs is a versatile ultrasonic sensor with a sensing range of 800 mm, delivering analog output (configurable for 0–10 V or 4–20 mA) along with IO-Link communication. Its compact F77 rectangular housing, M8 connector, and IP67 rating make it ideal for smart automation tasks involving distance or level measurement in tight industrial spaces.

Key Features

• 800 mm Sensing Distance – Reliable and stable mid-range detection

• Analog Output (0–10 V or 4–20 mA) – Adjustable for system flexibility

• IO-Link Connectivity – Smart diagnostics and remote configuration

• F77 Housing – Compact and rugged for industrial applications

• M8 Connector (4-pin) – Fast and secure installation

• IP67 Rating – Protected against dust, dirt, and water ingress

Technical Specifications

• Model: UC800-F77S-IU-IO-V31

• Part Number: 261248

• Sensor Type: Ultrasonic proximity sensor

• Measuring Range: 60 mm to 800 mm

• Output Type: Analog (0–10 V / 4–20 mA, selectable)

• Communication: IO-Link v1.1

• Connection: M8 connector, 4-pin

• Housing Type: Rectangular F77 series

• Voltage Supply: 10–30 V DC

• Response Time: ≤ 100 ms

• Housing Material: Plastic

• Protection Class: IP67

• Operating Temperature: -25°C to +70°C

Applications

• Liquid or Object Level Monitoring

• Distance Sensing in Packaging Lines

• Position Feedback in Automation Systems

• Industrial Robotics and Material Handling

• Smart Sensor Systems with IO-Link Integration

Why Choose UC800-F77S-IU-IO-V31?

• Combines analog feedback with Industry 4.0 readiness

• Compact housing fits where space is limited

• Reliable detection across diverse materials and conditions

Order Now

Now shipping worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
