Pepperl+Fuchs UC2000-L2-I-V15 | Ultrasonic Sensor | 60–2000 mm Range

Pepperl+Fuchs UC2000-L2-I-V15 | Ultrasonic Sensor – 60 to 2000 mm Range, Analog Output, IP67

Overview

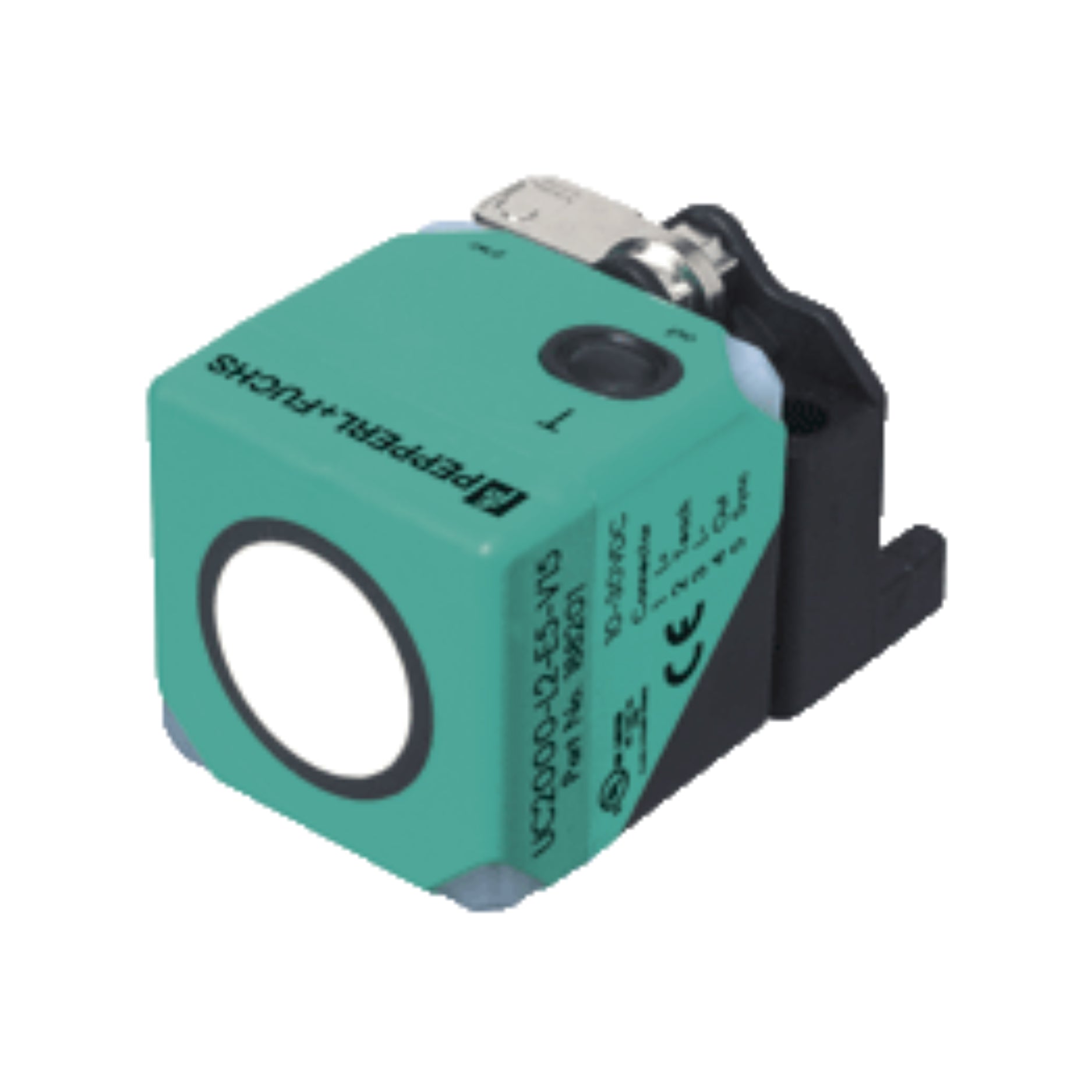

The Pepperl+Fuchs UC2000-L2-I-V15 is a versatile ultrasonic sensor designed for non-contact distance measurement and object detection within a range of 60 to 2000 mm. Featuring an analog 4–20 mA output, this sensor provides precise and reliable measurements suitable for various industrial applications. Its compact, cuboid-shaped housing and M12 connector facilitate easy installation, while the IP67 protection rating ensures durability in harsh environments.

Key Features

• Sensing Range: 60 to 2000 mm

• Output Type: Analog 4–20 mA

• Housing Design: Cuboid shape for flexible mounting

• Protection Rating: IP67 for robust environmental resistance

• Operating Voltage: 10 to 30 V DC

• Transducer Frequency: Approximately 175 kHz

• Connection Type: M12 x 1, 5-pin connector

• Adjustable Parameters: Programmable evaluation limits and sound beam width

Technical Specifications

• Model Number: UC2000-L2-I-V15

• Part Number: 277767

• Adjustment Range: 80 to 2000 mm

• Dead Band: 0 to 60 mm

• Standard Target Plate: 100 mm x 100 mm

• Response Delay: Minimum 60 ms; factory setting 330 ms

• Indicators:

  • Green LED: Operating display

  • Yellow LED: Object in evaluation range

  • Red LED: Error indication

• No-Load Supply Current: ≤ 50 mA

• Resolution: Evaluation range [mm]/3200, however ≥ 0.4 mm

• Deviation of Characteristic Curve: ≤ 0.2% of full-scale value

• Repeat Accuracy: ≤ 0.1% of full-scale value

• Load Impedance: ≤ 500 Ω at UB ≥ 14V; ≤ 300 Ω at UB < 14V

• Temperature Influence: ≤ 1.5% of full-scale value

• Ambient Temperature Range: -25°C to +70°C (-13°F to +158°F)

• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)

• Housing Material: PA-GF35

• Transducer Material: Epoxy resin/hollow glass sphere mixture; polyurethane foam

• Dimensions: Height 40 mm; Width 40 mm; Length 40 mm

• Mass: 115 g

• Standards Compliance: EN IEC 60947-5-2:2020; EN 60947-5-7:2003

• Certifications: cULus Listed, General Purpose; CCC approval not required for products rated ≤36 V

Applications

• Material Handling: Precise distance measurement for positioning and collision avoidance

• Packaging Industry: Object detection and level measurement in filling processes

• Automated Assembly Lines: Presence detection and part positioning

• Agricultural Equipment: Monitoring fill levels in tanks and silos

Why Choose the Pepperl+Fuchs UC2000-L2-I-V15?

• Wide Sensing Range: 60 to 2000 mm accommodates diverse applications

• High Precision: Analog output ensures accurate distance measurements

• Durable Construction: IP67-rated housing withstands harsh industrial environments

• Flexible Installation: Compact cuboid design with rotatable sensor head and quick mounting bracket

• User-Friendly Indicators: LEDs provide clear status information visible from all directions

Order Now

Available for immediate worldwide shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
