Pepperl+Fuchs UB1000-18GM75-U-V15

Pepperl+Fuchs UB1000-18GM75-U-V15 | Ultrasonic Sensor, 1000 mm, Analog 4–20 mA, IP67

Overview:

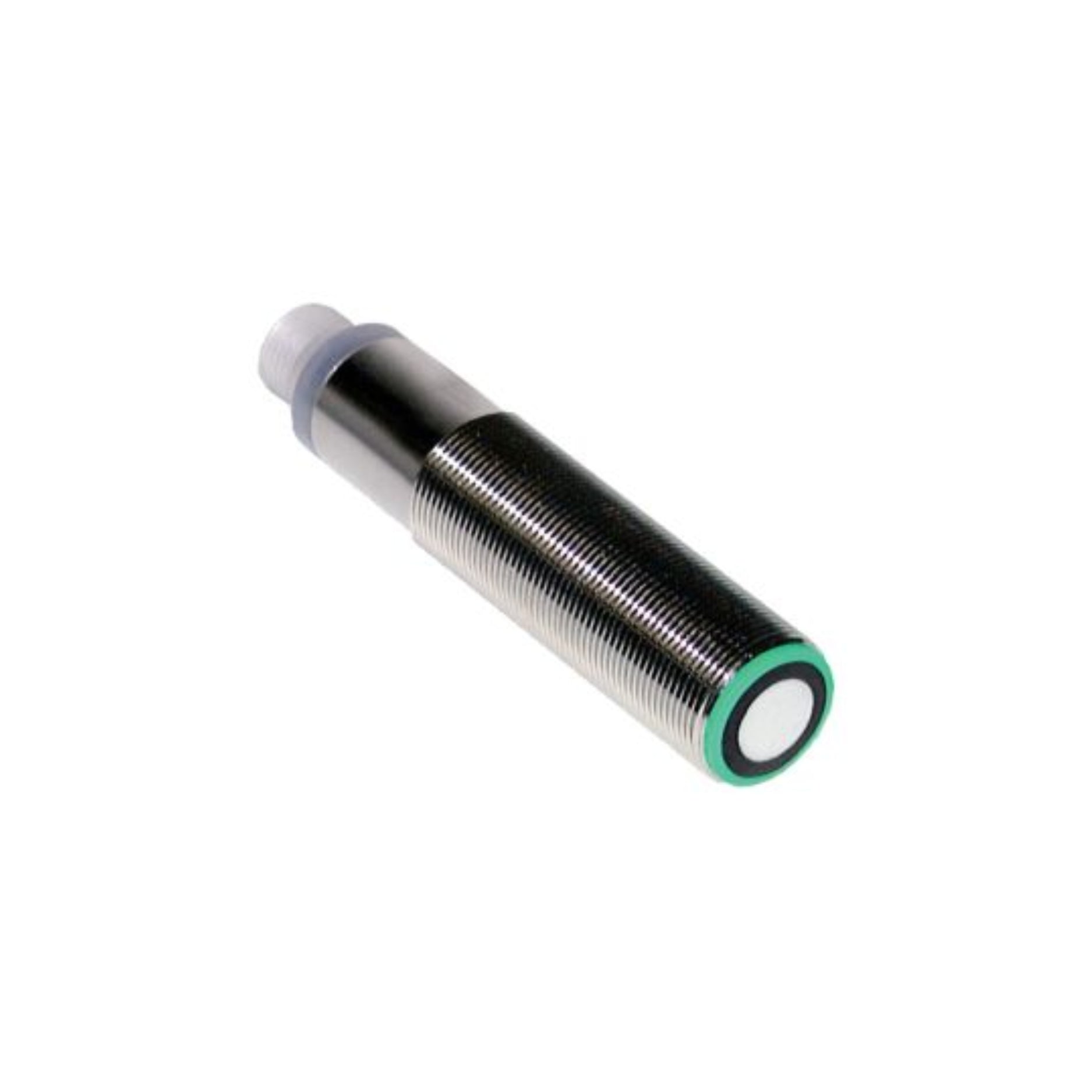

The Pepperl+Fuchs UB1000-18GM75-U-V15 (Part No. 204536) is a compact M18 ultrasonic sensor that provides analog distance measurement up to 1000 mm using a 4–20 mA output signal. Built to withstand harsh industrial conditions, this IP67-rated sensor is ideal for applications where reliable non-contact detection is required regardless of object color, shape, or surface texture.

Key Features:

• Measuring Range: 80–1000 mm

• Output Signal: Analog 4–20 mA

• Operating Voltage: 10–30 VDC

• Housing Type: M18 cylindrical metal body

• Connection: M12 4-pin connector

• Protection Rating: IP67

• Teach-In Function: For easy range and output adjustment

• Switching Frequency: ~20 Hz

• LED Indicators: Visual feedback for signal and status

• Temperature Range: -25°C to +70°C

Technical Specifications:

• Model Number: UB1000-18GM75-U-V15

• Part Number: 204536

• Sensor Type: Ultrasonic, diffuse mode

• Resolution: ≤ 1 mm

• Linearity Deviation: ≤ 1% of full scale

• Repeat Accuracy: ±0.15%

• Load Resistance: ≤ 500 Ω

• Current Consumption: ≤ 35 mA

• Material – Housing: Nickel-plated brass

• Material – Sensing Face: Plastic

• Weight: Approx. 45 g

Applications:

• Tank Level Monitoring: Accurate fill-level feedback

• Packaging Lines: Detect presence and position of items

• Automated Systems: Continuous position tracking

• Material Handling: Distance measurement for alignment or sorting

• Glass, Transparent & Shiny Object Detection: Performance unaffected by surface properties

Why Choose the UB1000-18GM75-U-V15?

✅ Long-range sensing up to 1000 mm with analog feedback
✅ Stable and precise measurements regardless of object color
✅ Easy installation with M12 connector and teach-in setup
✅ IP67-rated durability for industrial environments
✅ Compact M18 housing fits in tight control layouts

Order Now:

In stock and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
