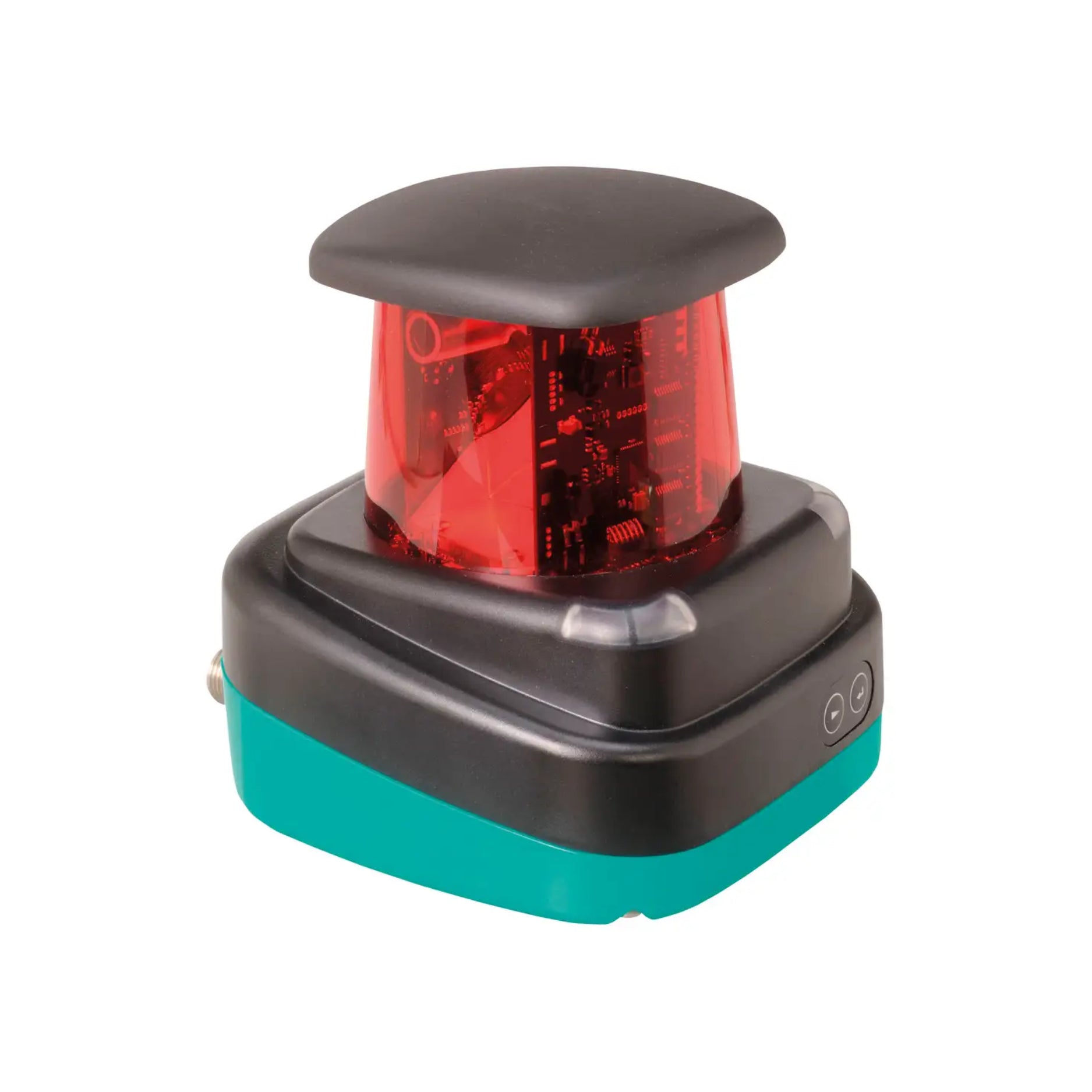

Pepperl+Fuchs OMD30M-R2000-B23-V1V1D-HD-1L

Pepperl+Fuchs OMD30M-R2000-B23-V1V1D-HD-1L | High-Definition 2D LiDAR Scanner with 360° Scanning and Multi-Echo Technology

Overview

The OMD30M-R2000-B23-V1V1D-HD-1L from Pepperl+Fuchs is a powerful 2D LiDAR sensor in the R2000 series, designed for advanced detection and navigation applications. Featuring a 30-meter range, high-definition angular resolution, multi-echo technology, and IP67 protection, this sensor is ideal for robotics, mobile platforms, and industrial automation systems that require fast and precise environmental mapping.

Key Features

• 30 m Measurement Range – Accurate scanning over long distances

• 360° Scanning Field – Full environmental awareness

• High-Definition Output – Excellent angular resolution for detailed detection

• Multi-Echo Technology – Reliable operation even in fog, dust, or rain

• Rugged Design – IP67-rated for harsh industrial and outdoor use

• LED Ring Indicators – Easy visual diagnostics and feedback

• Ethernet Interface – Fast communication with automation systems

• Compact R2000 Form Factor – Easy to integrate on mobile equipment

Technical Specifications

• Model: OMD30M-R2000-B23-V1V1D-HD-1L

• Sensor Type: 2D LiDAR scanner

• Measurement Range: Up to 30 m (reflective targets)

• Scanning Angle: 360°

• Angular Resolution: Up to 0.043°

• Light Source: Infrared laser (Class 1)

• Echo Processing: Multi-echo capability

• Interface: Ethernet (TCP/IP), digital I/O

• Power Supply: 18–30 V DC

• Enclosure Rating: IP67

• Operating Temperature: -10°C to +50°C

• Housing: R2000 compact design with LED display ring

• Mounting: Base or side bracket mountable

Applications

• Autonomous Mobile Robots (AMRs)

• AGVs and Warehouse Automation

• Obstacle Avoidance and Safety Scanning

• Navigation and Localization

• Perimeter Monitoring and Object Detection

Why Choose OMD30M-R2000-B23?

• Top-tier scanning accuracy and resolution

• Reliable operation in challenging environments

• Optimized for intelligent mobile and fixed automation systems

Order Now

Available for worldwide shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
