Pepperl+Fuchs OBT350-R100-2EP-IO

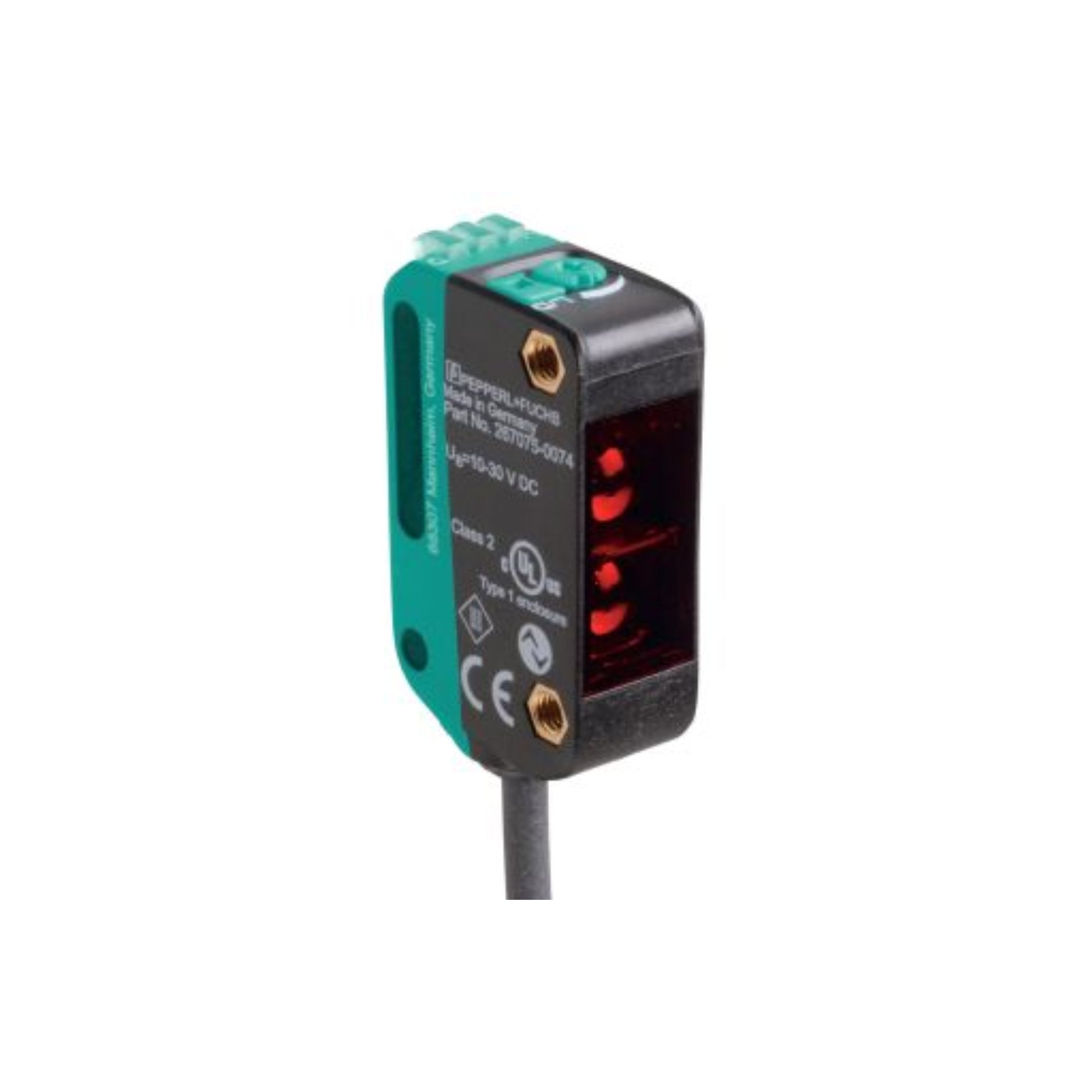

Pepperl+Fuchs OBT350-R100-2EP-IO-0.3M-V1 | Background Suppression Photoelectric Sensor with IO-Link

Overview

The OBT350-R100-2EP-IO-0.3M-V1 from Pepperl+Fuchs is a compact, high-performance photoelectric sensor featuring background suppression for reliable object detection at up to 350 mm. Equipped with IO-Link communication, a 0.3 m cable with M8 connector, and an IP67-rated enclosure, this sensor is ideal for intelligent automation environments requiring precision and versatility.

Key Features

• 350 mm Detection Range – Reliable object recognition with background suppression

• IO-Link Interface – Enables smart diagnostics and remote configuration

• 2 PNP Outputs – Flexible integration with modern control systems

• Compact R100 Housing – Ideal for tight industrial spaces

• 0.3 m Cable + M8 Connector – Easy plug-and-play connectivity

• IP67 Protection – Built for dust- and water-prone industrial environments

Technical Specifications

• Model: OBT350-R100-2EP-IO-0.3M-V1

• Part Number: 267075-0069

• Sensor Type: Photoelectric sensor with background suppression

• Detection Range: 10 mm to 350 mm

• Output Type: 2 PNP, Normally Open

• Communication: IO-Link v1.1

• Connector Type: 0.3 m cable with M8 4-pin connector

• Housing Type: R100 series, compact rectangular

• Voltage Supply: 10–30 V DC

• Switching Frequency: Up to 1 kHz

• Light Source: Red light LED

• Protection Rating: IP67

• Operating Temperature: -25°C to +60°C

Applications

• Packaging and Sorting Machines

• Conveyor Line Object Detection

• Smart Sensor Integration via IO-Link

• Compact Automation Assemblies

• Robotics and Industrial Workcells

Why Choose OBT350-R100-2EP-IO?

• Advanced background suppression ensures accuracy

• Seamless communication with IO-Link ready systems

• Compact and rugged for space-limited industrial setups
