Pepperl+Fuchs NRB5-18GM50-E2-C-V1 | Magnetic Proximity Sensor for Ferromagnetic Target Detection

Overview

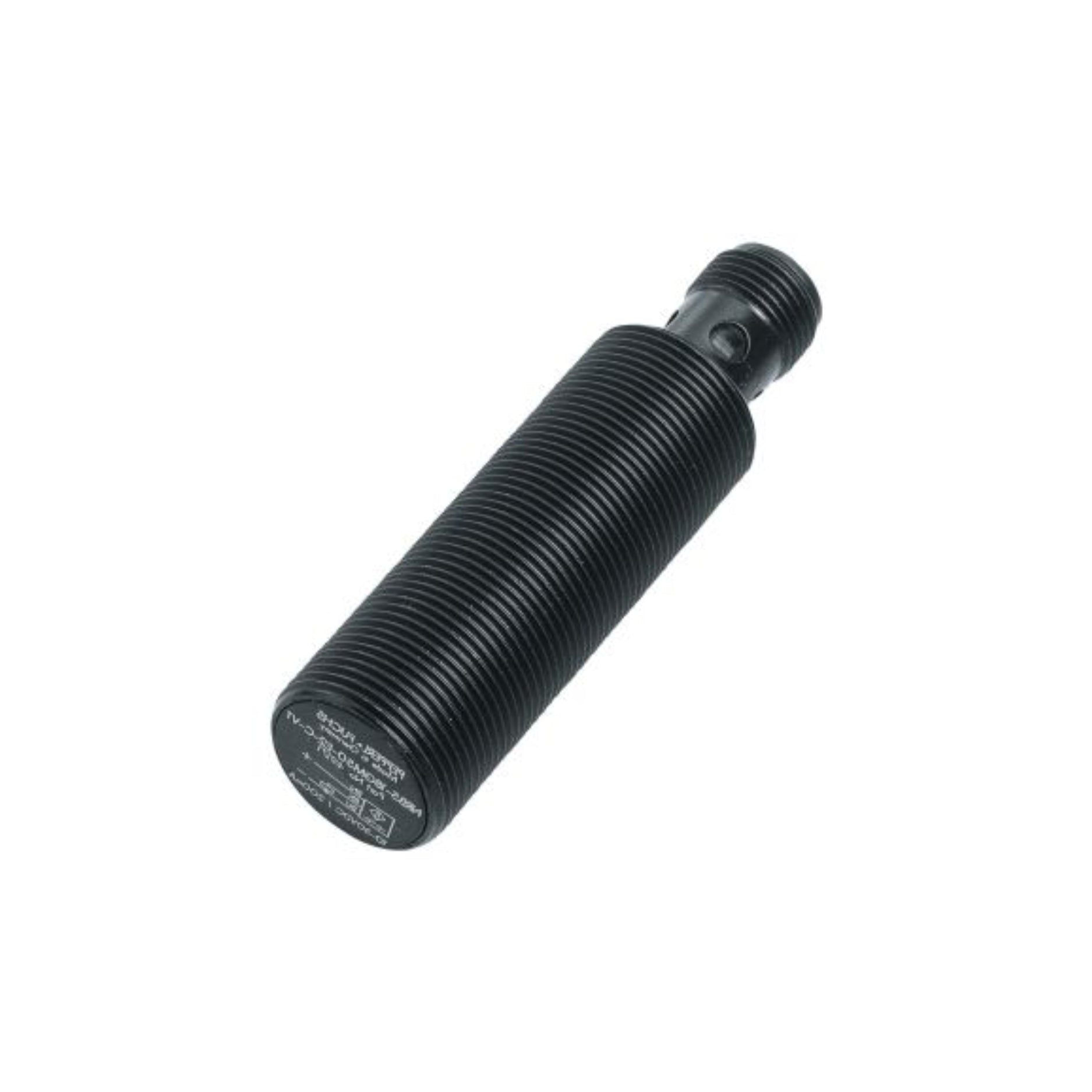

The NRB5-18GM50-E2-C-V1 from Pepperl+Fuchs is a magnetic field sensor designed to detect ferromagnetic objects with a 5 mm sensing range. Housed in a durable M18 cylindrical body with a PNP normally open output, M12 connector, and IP67 rating, it ensures reliable performance in rugged industrial environments.

Key Features

• 5 mm Sensing Distance – Ideal for precise magnetic target detection

• PNP Output (Normally Open) – Suitable for direct PLC interface

• M18 Threaded Housing – Easy integration in standard installations

• M12 Connector – Quick, secure, and maintenance-friendly connection

• IP67 Protection – Resistant to dust, water, and mechanical stress

• Ferromagnetic Detection – Optimized for applications where inductive sensors may fall short

Technical Specifications

• Model: NRB5-18GM50-E2-C-V1

• Part Number: 264608

• Sensor Type: Magnetic proximity sensor

• Sensing Range: 5 mm

• Output Type: PNP, Normally Open (NO)

• Target Type: Ferromagnetic metals

• Mounting Type: Flush

• Housing: M18 x 50 mm, nickel-plated brass

• Connection: M12 connector, 4-pin

• Voltage Supply: 10–30 V DC

• Switching Frequency: ≤ 500 Hz

• Protection Rating: IP67

• Temperature Range: -25°C to +70°C

Applications

• Machine Automation

• Ferromagnetic Part Detection

• Conveyor and Sorting Systems

• Position Monitoring

• Heavy-Duty Industrial Equipment

Why Choose NRB5-18GM50-E2-C-V1?

• Reliable magnetic detection in compact format

• Ideal for harsh conditions where precision is key

• Backed by Pepperl+Fuchs quality and support
