Pepperl+Fuchs NRB20-L3-A2-C-V1

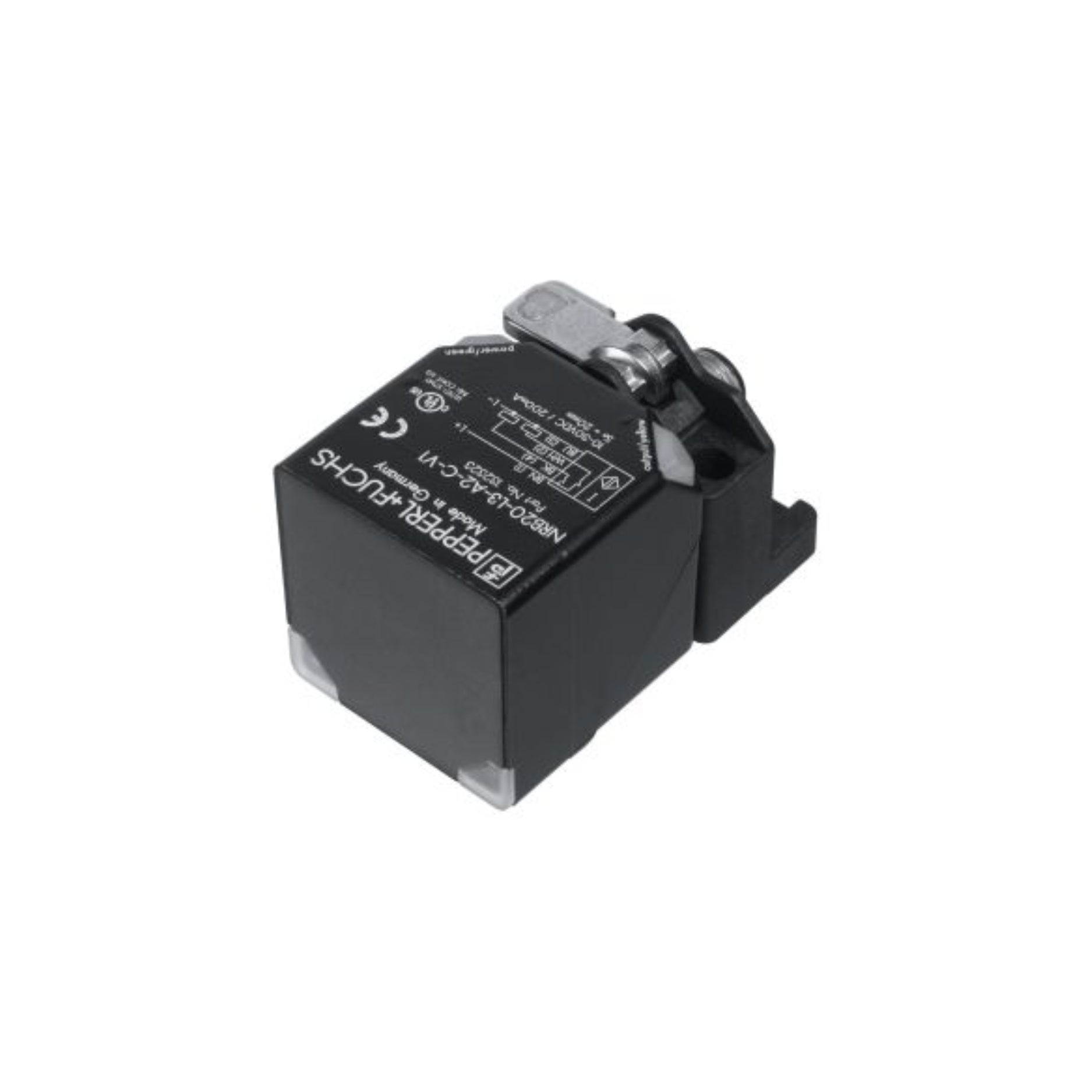

Pepperl+Fuchs NRB20-L3-A2-C-V1 | 20 mm Magnetic Field Sensor for Ferromagnetic Target Detection

Overview

The NRB20-L3-A2-C-V1 from Pepperl+Fuchs is a high-performance magnetic proximity sensor built for ferromagnetic target detection in industrial applications. It features a 20 mm sensing range, PNP normally open output, M12 quick-connect interface, and an IP67-rated housing for operation in demanding environments.

Key Features

• 20 mm Sensing Range – Extended magnetic detection distance

• PNP Output (NO) – Easy integration into PLC systems

• M12 Connector – Fast and secure electrical connection

• Magnetic Field Detection – Designed for ferromagnetic target applications

• IP67 Protection – Resistant to dust, water, and oil

• Rectangular Housing Design – Easy mounting in confined spaces

Technical Specifications

• Model: NRB20-L3-A2-C-V1

• Part Number: 306534-0101

• Sensor Type: Magnetic field proximity sensor

• Sensing Distance: 20 mm

• Target Type: Ferromagnetic materials

• Output Type: PNP, Normally Open (NO)

• Connection Type: M12 connector, 4-pin

• Mounting Type: Surface/flat mounting

• Voltage Supply: 10–30 V DC

• Switching Frequency: ≤ 500 Hz

• Housing Material: Plastic

• Protection Rating: IP67

• Operating Temperature: -25°C to +70°C

Applications

• Ferromagnetic Object Detection

• Conveyor Systems

• Machine Automation

• Position Sensing on Moving Equipment

• OEM Equipment Integration

Why Choose NRB20-L3-A2-C-V1?

• High sensing distance with compact design

• Durable, water-resistant build for harsh settings

• Trusted Pepperl+Fuchs magnetic sensor performance

Order Now

Available for worldwide delivery.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
