Pepperl+Fuchs NMB5-18GM65-E2-C-Fe-V1

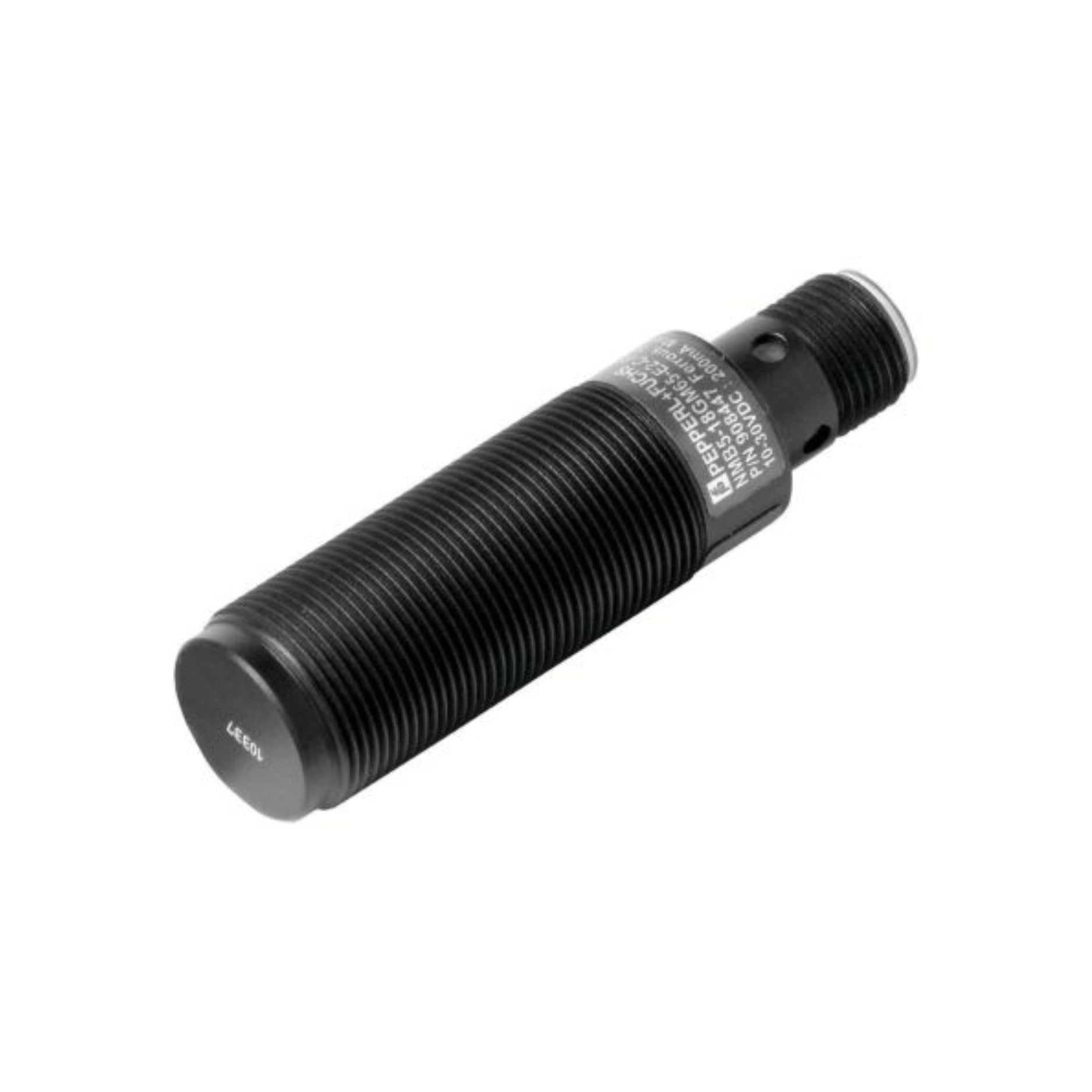

Pepperl+Fuchs NMB5-18GM65-E2-C-Fe-V1 | 5 mm Magnetic Proximity Sensor for Ferromagnetic Target Detection

Overview

The NMB5-18GM65-E2-C-Fe-V1 from Pepperl+Fuchs is a magnetic field proximity sensor engineered for detecting ferromagnetic objects with a 5 mm sensing distance. Designed in a robust M18 stainless steel cylindrical housing, it features PNP normally open output, M12 quick-connector, and IP67 ingress protection for reliable use in tough industrial conditions.

Key Features

• 5 mm Sensing Distance – Ideal for detecting ferromagnetic materials

• Magnetic Field Detection – Works in environments unsuitable for inductive sensors

• PNP Output (NO) – Widely compatible with industrial control systems

• Flush Mount M18 Housing – Space-saving and vibration-resistant

• M12 Connector – Quick and secure installation

• IP67 Rated – Resistant to water, dust, and oil

Technical Specifications

• Model: NMB5-18GM65-E2-C-Fe-V1

• Part Number: 908447

• Sensor Type: Magnetic proximity sensor

• Target Type: Ferromagnetic objects

• Sensing Range: 5 mm

• Output Type: PNP, Normally Open (NO)

• Mounting Type: Flush

• Connection Type: M12 connector, 4-pin

• Voltage Supply: 10–30 V DC

• Switching Frequency: ≤ 500 Hz

• Housing Material: Stainless steel

• Protection Rating: IP67

• Operating Temperature: -25°C to +70°C

Applications

• Metal Detection on Machinery

• Automated Production Lines

• Sorting and Conveying Systems

• Machine Tool Monitoring

• Industrial Applications Requiring Magnetic Sensing

Why Choose NMB5-18GM65-E2-C-Fe-V1?

• Reliable detection of ferromagnetic materials

• Built for durability in industrial environments

• Easy wiring and installation with M12 connector

Order Now

Ready to ship worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
