Pepperl+Fuchs NMB2-12GM65-E2-C-Fe-V1

Pepperl+Fuchs NMB2-12GM65-E2-C-Fe-V1 | Magnetic Field Sensor for Ferromagnetic Object Detection

Overview

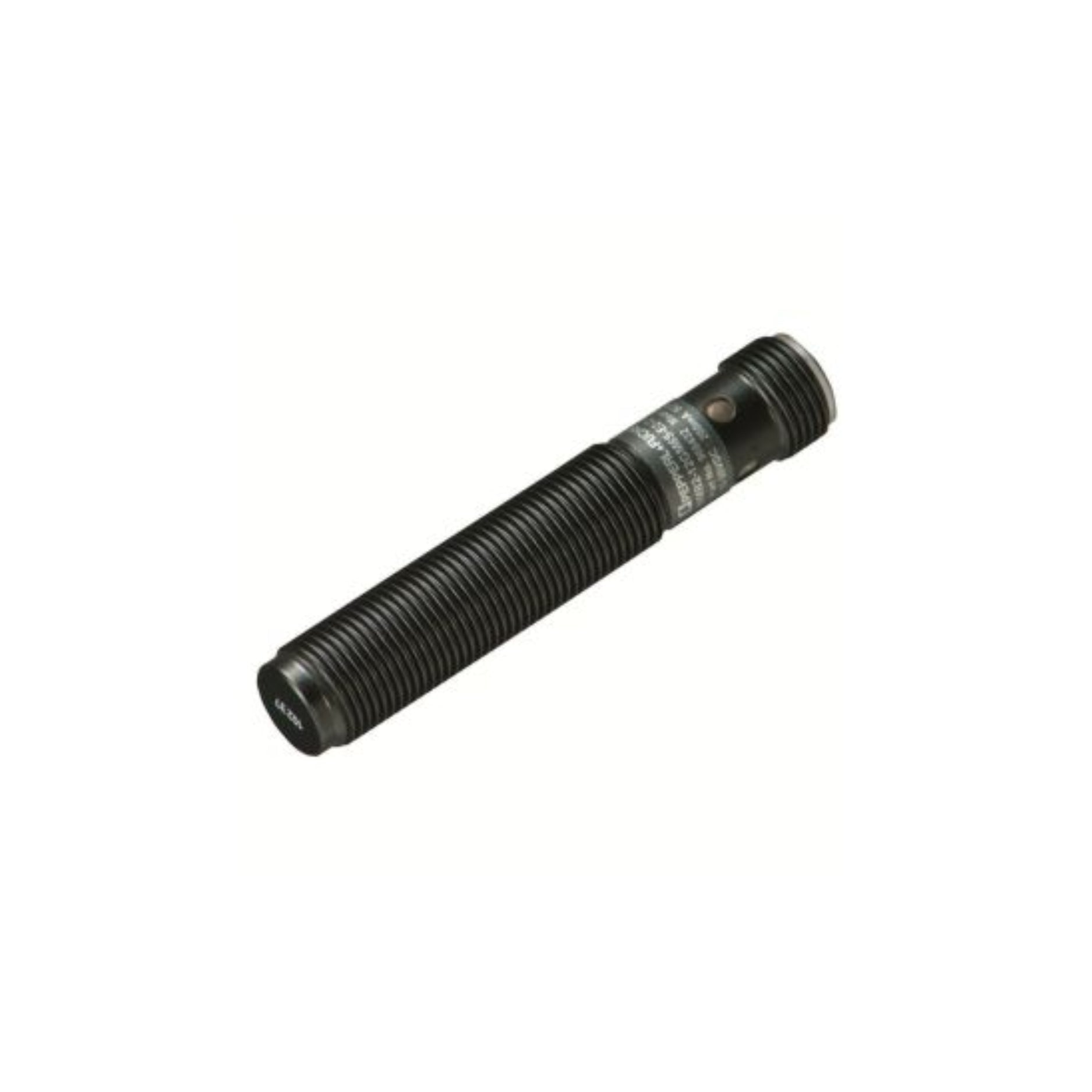

The NMB2-12GM65-E2-C-Fe-V1 from Pepperl+Fuchs is a magnetic proximity sensor engineered for detecting ferromagnetic objects with a 2 mm sensing range. This cylindrical M12 sensor features a PNP normally open output, M12 quick-connect, and is IP67-rated, offering dependable operation even in challenging industrial conditions.

Key Features

• 2 mm Sensing Range – Designed for ferromagnetic metal detection

• Magnetic Field Sensor – Works where inductive sensors may not

• PNP Output (Normally Open) – Simplifies PLC integration

• M12 Quick-Connect – Fast and reliable electrical connection

• IP67 Protection – Durable in dust and water-heavy environments

• M12 Cylindrical Housing – Threaded for easy flush mounting

Technical Specifications

• Model: NMB2-12GM65-E2-C-Fe-V1

• Part Number: 908432

• Sensor Type: Magnetic proximity sensor

• Sensing Distance: 2 mm

• Target Type: Ferromagnetic metals

• Output Type: PNP, Normally Open (NO)

• Connection: M12 connector, 4-pin

• Mounting Type: Flush

• Voltage Supply: 10–30 V DC

• Switching Frequency: ≤ 500 Hz

• Housing Material: Stainless steel

• Protection Class: IP67

• Operating Temperature: -25°C to +70°C

Applications

• Ferromagnetic Object Detection

• Machine Tools and Robotics

• Material Handling Equipment

• Industrial Automation in Harsh Environments

• Metal Sorting Systems

Why Choose NMB2-12GM65-E2-C-Fe-V1?

• Specialized for magnetic detection applications

• Sturdy stainless-steel housing

• Reliable switching in wet, dusty, or oily conditions

Order Now

In stock and available for international shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
