Pepperl+Fuchs NJ5-18GM50-E2

Pepperl+Fuchs NJ5-18GM50-E2 | Cylindrical M18 Inductive Sensor for Precise Metal Detection

Overview

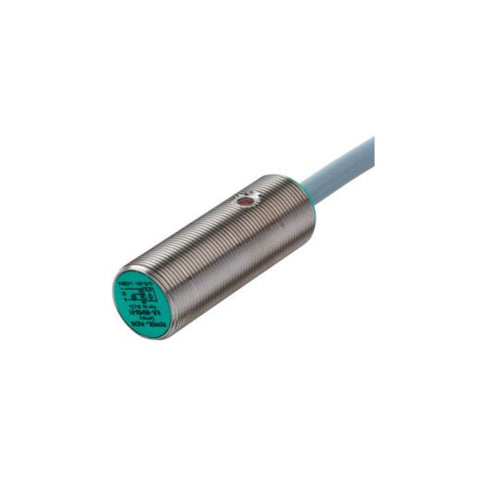

The NJ5-18GM50-E2 from Pepperl+Fuchs is a robust M18 cylindrical inductive proximity sensor with a 5 mm sensing range, PNP normally open output, and an M12 quick-connect interface. Built to withstand industrial conditions, this sensor offers dependable performance with IP67-rated protection for automation systems requiring precise and compact metal detection.

Key Features

• 5 mm Sensing Distance – Flush-mount detection for close-range applications

• PNP Output (NO) – Standard logic for digital input compatibility

• M18 Housing – Durable threaded cylindrical design

• M12 Connector – Easy and fast plug-in connection

• IP67 Protection – Water and dust-resistant for harsh environments

• 3-Wire DC Configuration – Simplifies wiring and integration

Technical Specifications

• Model: NJ5-18GM50-E2

• Part Number: 282955

• Sensing Range: 5 mm (flush)

• Output Type: PNP, Normally Open (NO)

• Mounting Type: Flush mount

• Housing: M18 x 50 mm, threaded

• Connection: M12 connector, 4-pin

• Voltage Supply: 10–30 V DC

• Switching Frequency: ≤ 800 Hz

• Housing Material: Nickel-plated brass

• Protection Rating: IP67

• Temperature Range: -25°C to +70°C

Applications

• Factory Automation Equipment

• Assembly Line Position Sensing

• Packaging Machinery

• Industrial Robotics

• Conveyor and Sorting Systems

Why Choose NJ5-18GM50-E2?

• Compact and rugged M18 design

• High switching frequency for fast-moving targets

• Reliable detection in tough industrial environments

Order Now

Ships globally.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
