Pepperl+Fuchs NJ15-M1K-A2

Pepperl+Fuchs NJ15-M1K-A2 | High-Precision Rectangular Inductive Proximity Sensor with Extended Sensing Distance

Overview

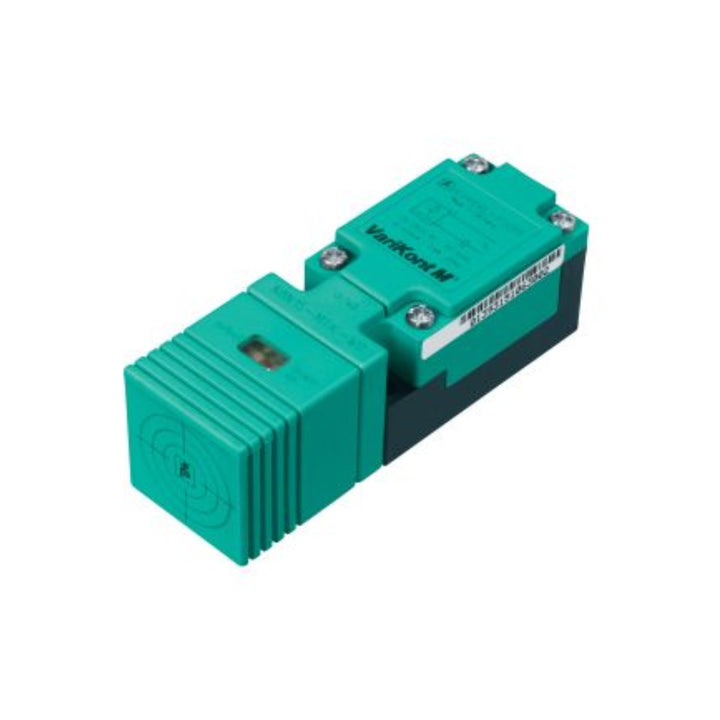

The Pepperl+Fuchs NJ15-M1K-A2 is a high-performance inductive proximity sensor designed for accurate and reliable detection of metal objects in industrial automation applications. With an extended sensing distance of 15 mm, non-flush mounting, and a robust rectangular PBT housing, this sensor is ideal for environments requiring precise and consistent detection of metallic objects.

Key Features

• Sensing Distance: 15 mm rated operating distance

• Output Type: PNP, Complementary (Normally Open and Normally Closed)

• Mounting: Non-flush (non-embeddable) installation

• Housing: Rectangular, durable PBT construction

• Connection: Screw terminals

• Operating Voltage: 10 to 60 V DC

• Switching Frequency: Up to 200 Hz

• Protection Rating: IP67, ensuring resistance to dust and water ingress

• Operating Temperature Range: -25°C to +70°C (-13°F to +158°F)

• Indicators: Green LED for power status; yellow LED for switching status

Technical Specifications

• Model Number: NJ15-M1K-A2

• Series: VariKont

• Switching Function: Complementary (Normally Open and Normally Closed)

• Output Type: PNP

• Rated Operating Distance (sn): 15 mm

• Assured Operating Distance (sa): 0 to 12.15 mm

• Reduction Factors:

  • Aluminum (rAl): 0.39

  • Copper (rCu): 0.36

  • Stainless Steel (r304): 0.73

• Operating Voltage (UB): 10 to 60 V DC

• Switching Frequency (f): 0 to 200 Hz

• Hysteresis (H): Typically 5%

• Reverse Polarity Protection: Yes

• Short-Circuit Protection: Pulsing

• Voltage Drop (Ud): ≤ 2.5 V

• Operating Current (IL): 0 to 200 mA

• No-Load Supply Current (I0): ≤ 14.5 mA

• Time Delay Before Availability (tv): ≤ 50 ms

• Operating Voltage Indicator: Green LED

• Switching State Indicator: Yellow LED

• Connection Type: Screw terminals

• Housing Material: PBT

• Sensing Face Material: PBT

• Degree of Protection: IP67

• Dimensions:

  • Height: 30 mm

  • Width: 30 mm

  • Length: 91 mm

• Tightening Torque: 1.2 Nm ± 10%

• Core Cross Section: Up to 2.5 mm²

• Standards Compliance: EN IEC 60947-5-2

• Approvals:

  • UL: cULus Listed, General Purpose

  • CCC: Certified by China Compulsory Certification (CCC)

Applications

• Industrial Automation: Precise detection of metallic components in assembly lines

• Material Handling: Detecting metal objects on conveyors and chutes

• Packaging Machinery: Monitoring the presence and position of metal parts

• Automotive Industry: Position sensing and part detection in manufacturing processes

Why Choose Pepperl+Fuchs NJ15-M1K-A2?

• Extended Sensing Distance: 15 mm range allows for greater flexibility in application design

• Robust Construction: Durable PBT housing suitable for industrial environments

• Reliable Performance: Consistent detection with up to 200 Hz switching frequency

• Easy Integration: Screw terminals facilitate secure connections

• Clear Indicators: Green and yellow LEDs provide immediate visual feedback on sensor status
