Pepperl+Fuchs NBN4-F29A-E2-C

Pepperl+Fuchs NBN4-F29A-E2-C | Inductive Sensor, 4 mm, PNP NO, Rectangular, IP68

Overview:

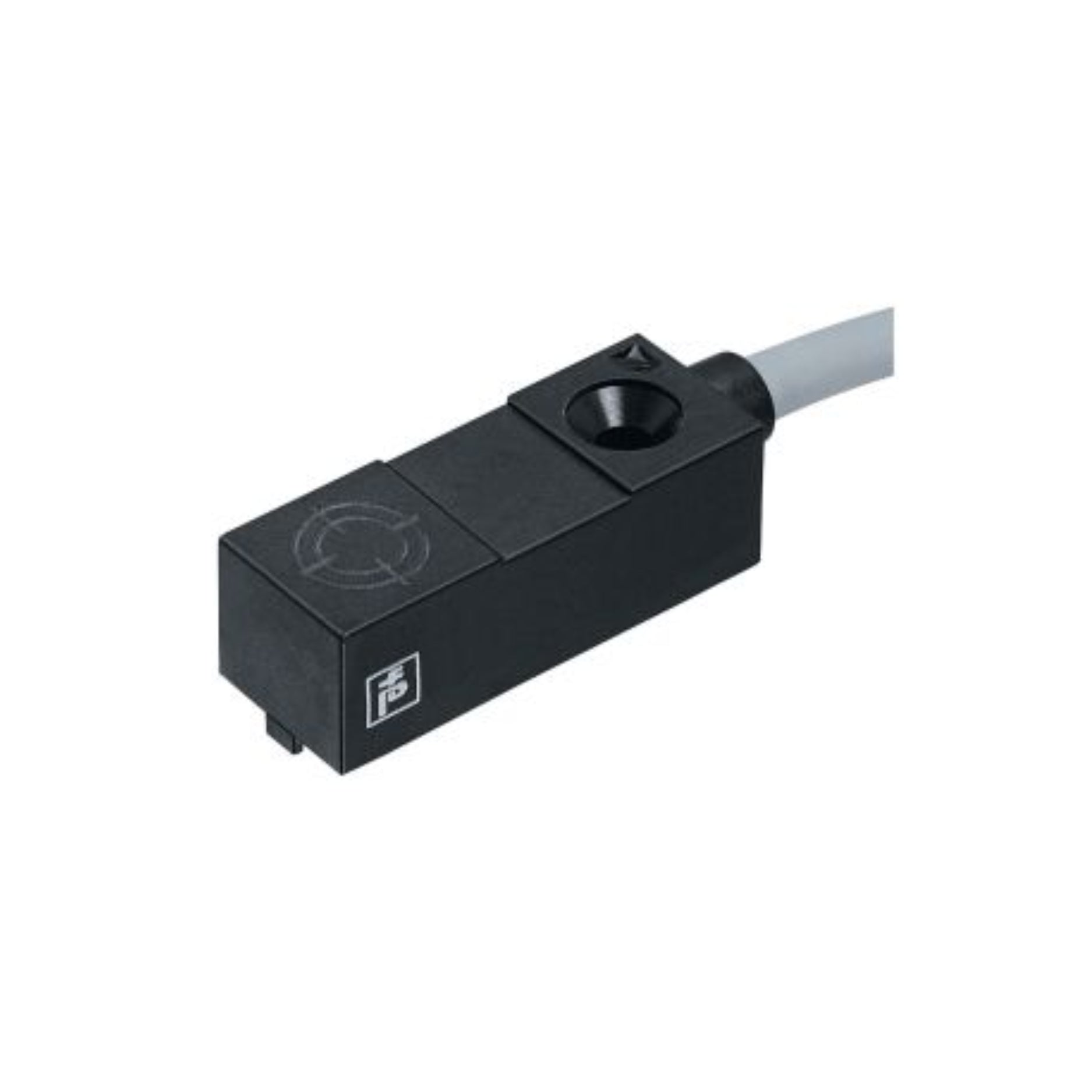

The Pepperl+Fuchs NBN4-F29A-E2-C (Part No. 089944) is a compact rectangular inductive proximity sensor with a 4 mm flush sensing distance, PNP normally open output, and a rugged plastic housing. Its IP68 protection and 2-meter prewired cable make it ideal for harsh industrial and outdoor environments where compact, reliable sensing is required.

Key Features:

• Sensing Distance: 4 mm (flush mount)

• Output Type: PNP, Normally Open (NO)

• Wiring Type: 3-wire DC

• Operating Voltage: 10–30 VDC

• Connection: 2 m prewired PVC cable

• Housing Type: Compact rectangular (F29A style)

• Protection Rating: IP68

• Switching Frequency: Up to 500 Hz

• LED Indicator: Integrated for switching status

• Temperature Range: -25°C to +70°C

Technical Specifications:

• Model Number: NBN4-F29A-E2-C

• Part Number: 089944

• Sensor Type: Inductive proximity

• Installation Type: Flush

• Housing Material: PBT plastic

• Sensing Face: LCP

• Voltage Drop: ≤ 3 V

• Max Load Current: 200 mA

• No-Load Current Consumption: ≤ 15 mA

• Short-Circuit & Reverse Polarity Protection: Yes

• Dimensions: Approx. 29 x 16 x 8 mm

• Weight: Approx. 40 g

Applications:

• Factory Automation: Precise object detection in compact spaces

• Material Handling: Reliable sensing on conveyors and guides

• Packaging Lines: Detect product presence or position

• OEM Machinery: Embedded use in small machine builds

• Outdoor/Harsh Environments: IP68 for water and dust protection

Why Choose the NBN4-F29A-E2-C?

✅ Compact and robust rectangular housing
✅ Flush sensing up to 4 mm for precision detection
✅ Prewired 2 m cable for easy installation
✅ IP68 rating for underwater and outdoor use
✅ PNP NO output for seamless PLC integration

Order Now:

Available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
