Pepperl+Fuchs NBN4-12GM40-E2-V1

Pepperl+Fuchs NBN4-12GM40-E2-V1 | Inductive Sensor, M12, 4 mm, PNP NO, IP67

Overview:

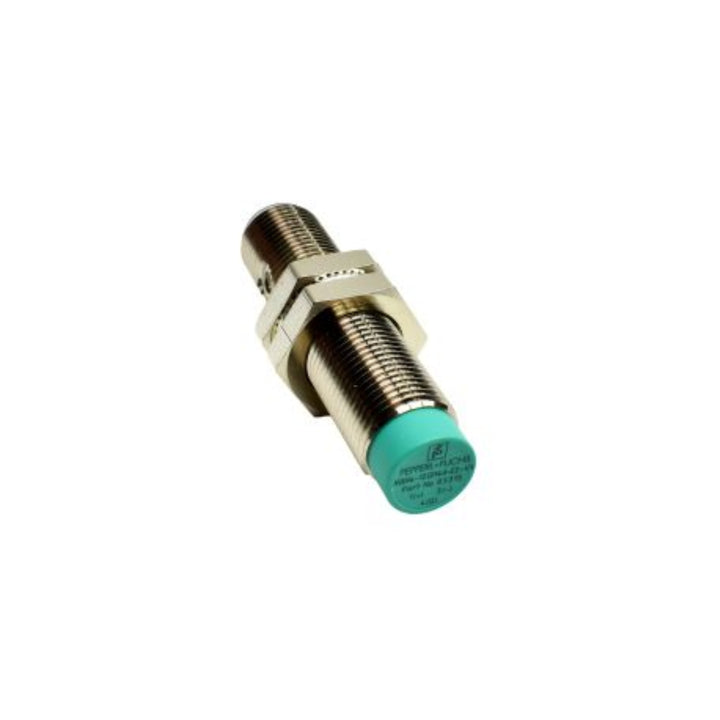

The Pepperl+Fuchs NBN4-12GM40-E2-V1 (Part No. 083315) is a flush-mount inductive proximity sensor with a 4 mm sensing distance in a durable M12 cylindrical housing. Featuring a PNP normally open output and M12 quick-connect, this IP67-rated sensor is ideal for industrial automation tasks requiring reliable metal object detection in compact spaces.

Key Features:

• Sensing Distance: 4 mm (flush mountable)

• Output Type: PNP, Normally Open (NO)

• Operating Voltage: 10–30 VDC

• Connection Type: M12, 4-pin connector

• Housing Material: Nickel-plated brass

• Sensing Face Material: LCP (Liquid Crystal Polymer)

• Protection Class: IP67

• Switching Frequency: Up to 2,000 Hz

• LED Indicator: For operation and switching status

• Operating Temperature: -25°C to +70°C

Technical Specifications:

• Model Number: NBN4-12GM40-E2-V1

• Part Number: 083315

• Installation Type: Flush

• Voltage Drop: ≤ 1.5 V

• Max Load Current: 100 mA

• No-Load Current Consumption: ≤ 10 mA

• Short-Circuit Protection: Yes

• Reverse Polarity Protection: Yes

• Dimensions: Ø12 mm x approx. 40 mm

• Weight: Approx. 30 g

Applications:

• Automation Systems: Metal object detection on production lines

• Robotics: Presence sensing for positioning and movement

• Packaging Machinery: Detect product presence or alignment

• Material Handling: Monitor parts on conveyor systems

• OEM Machines: Compact sensor integration for tight spaces

Why Choose the NBN4-12GM40-E2-V1?

✅ Compact M12 design for space-constrained areas
✅ Reliable 4 mm flush sensing for precise detection
✅ Plug-and-play M12 connector simplifies wiring
✅ IP67 protection ensures performance in harsh environments
✅ High switching speed for dynamic applications

Order Now:

In stock and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
