Pepperl+Fuchs NBN3-F31K-E8

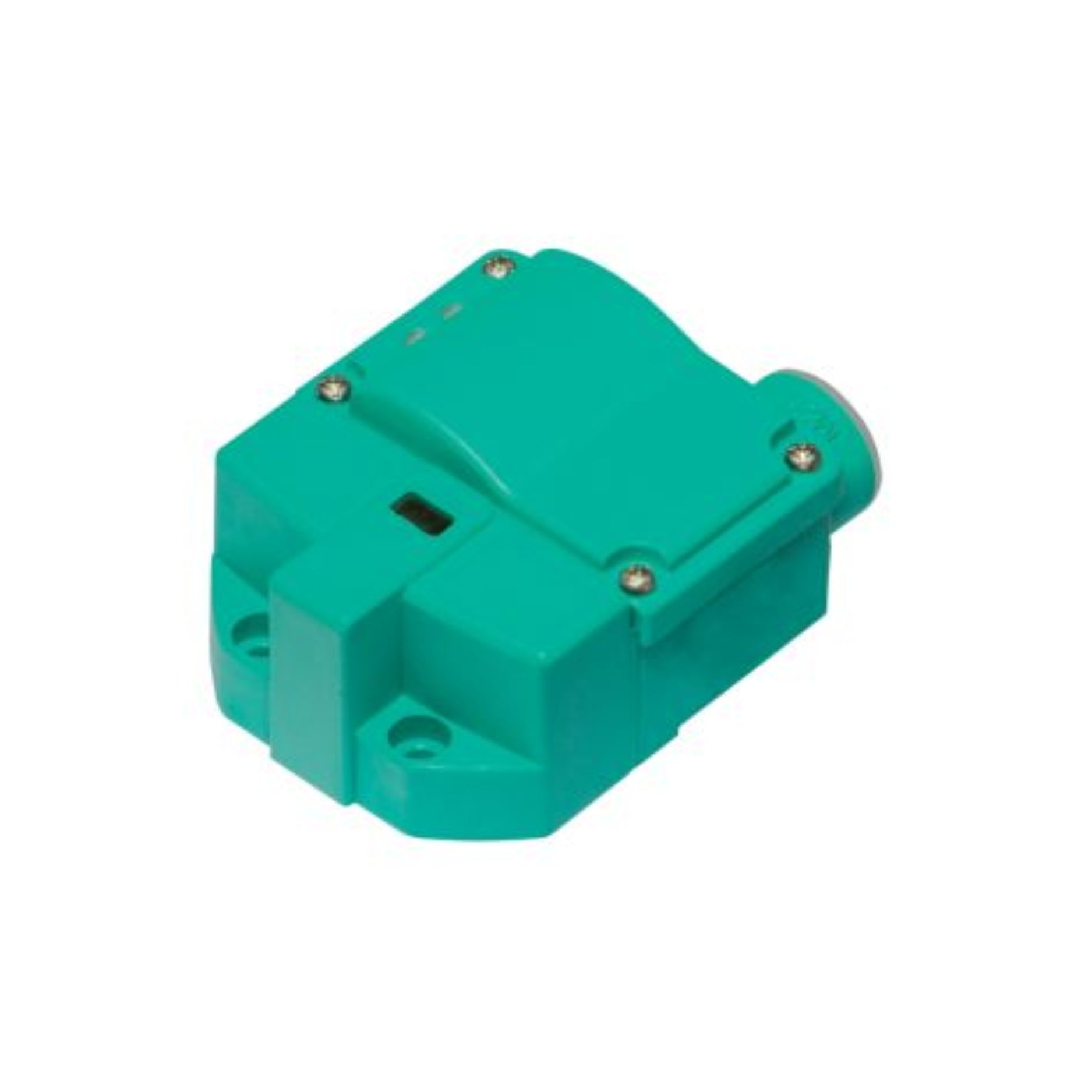

Pepperl+Fuchs NBN3-F31K-E8 | Inductive Sensor, 3 mm, PNP NO, Twin Rectangular Housing, IP67

Overview:

The Pepperl+Fuchs NBN3-F31K-E8 (Part No. 097637) is a compact inductive proximity sensor with a 3 mm flush sensing distance and a PNP normally open output. It features a twin rectangular housing for flexible mounting and prewired connection, making it a go-to solution for space-restricted and rugged industrial applications.

Key Features:

• Sensing Distance: 3 mm (flush mount)

• Output Type: PNP, Normally Open (NO)

• Operating Voltage: 10–30 VDC

• Housing Type: Twin rectangular (F31K series)

• Connection: Prewired, 2 m PVC cable

• Protection Class: IP67

• Switching Frequency: Up to 2,000 Hz

• LED Indicator: Built-in switching status display

• Operating Temperature: -25°C to +70°C

Technical Specifications:

• Model Number: NBN3-F31K-E8

• Part Number: 097637

• Sensor Type: Inductive proximity

• Installation: Flush mounting

• Housing Material: PBT plastic

• Sensing Face: LCP (Liquid Crystal Polymer)

• Voltage Drop: ≤ 1.5 V

• Max Load Current: 100 mA

• Current Consumption: ≤ 15 mA

• Short-Circuit & Reverse Polarity Protection: Yes

• Dimensions: Approx. 31 x 8 x 20 mm

• Weight: Approx. 30 g

Applications:

• Automation Equipment: Metal detection in confined areas

• OEM Systems: Compact sensor for tight integration

• Robotics: Position sensing on moving assemblies

• Material Handling: Monitoring parts on conveyors

• Packaging Lines: Detect presence/position of components

Why Choose the NBN3-F31K-E8?

✅ Compact twin-housing design for flexible mounting
✅ Reliable 3 mm flush detection in tight spaces
✅ PNP NO output fits standard PLCs and controllers
✅ IP67 protection for rugged environments
✅ Prewired cable for quick setup and stable connection

Order Now:

Available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
