Pepperl+Fuchs NBN25-30GM50-E2-V1

Pepperl+Fuchs NBN25-30GM50-E2-V1 | Inductive Sensor, M30, 25 mm, PNP NO, IP67

Overview:

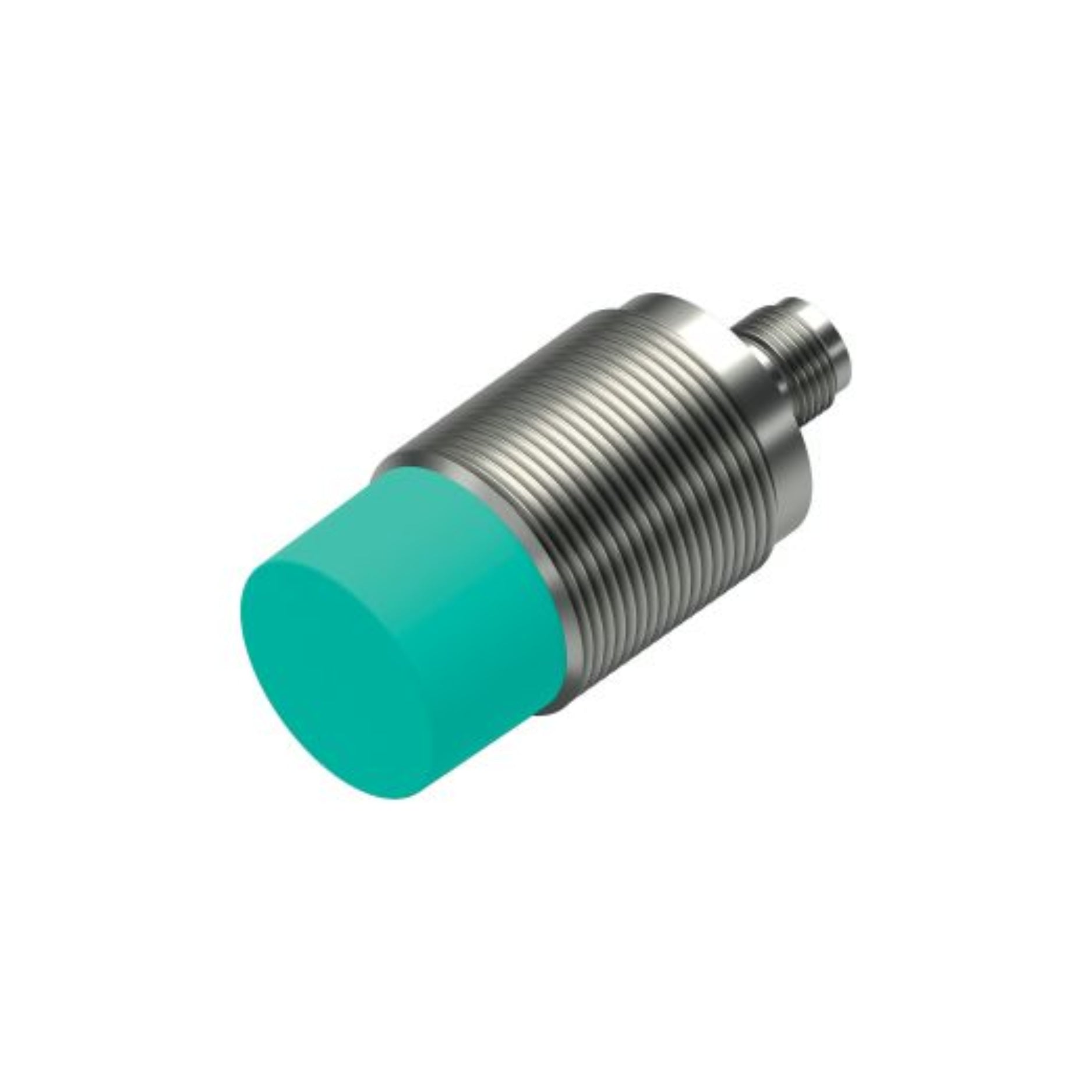

The Pepperl+Fuchs NBN25-30GM50-E2-V1 (Part No. 088247) is a high-range inductive proximity sensor designed for non-flush mounting with a 25 mm sensing distance. It features a PNP normally open output, M12 quick-connect, and IP67 protection, making it ideal for robust object detection in harsh industrial environments.

Key Features:

• Sensing Distance: 25 mm (non-flush mount)

• Output Type: PNP, Normally Open (NO)

• Operating Voltage: 10–30 VDC

• Connection Type: M12, 4-pin connector

• Housing Material: Nickel-plated brass

• Sensing Face Material: LCP (Liquid Crystal Polymer)

• Protection Rating: IP67

• Switching Frequency: Up to 200 Hz

• LED Indicator: Integrated for switch status

• Operating Temperature: -25°C to +70°C

Technical Specifications:

• Model Number: NBN25-30GM50-E2-V1

• Part Number: 088247

• Sensor Type: Inductive proximity

• Installation Type: Non-flush

• Voltage Drop: ≤ 2.5 V

• Max Load Current: 200 mA

• No-Load Current Consumption: ≤ 15 mA

• Short-Circuit Protection: Yes

• Reverse Polarity Protection: Yes

• Dimensions: M30 x 50 mm

• Weight: Approx. 150 g

Applications:

• Heavy Industrial Machinery: Long-range metal detection

• Automated Conveyors: Monitor bins, boxes, or pallets

• Material Handling Systems: Presence detection

• OEM Machinery: Easy M30 integration with high sensing range

• Harsh Environments: Moisture and dust resistant with IP67 rating

Why Choose the NBN25-30GM50-E2-V1?

✅ Extended 25 mm sensing range for wide-gap applications
✅ PNP NO output integrates easily with control systems
✅ Durable M30 housing with IP67 protection
✅ Quick-connect M12 plug for fast and secure installation
✅ Proven Pepperl+Fuchs performance and reliability

Order Now:

Available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
