Pepperl+Fuchs NBN15-30GM50-E2-V1

Pepperl+Fuchs NBN15-30GM50-E2-V1 | Inductive Sensor, 15 mm, M30, PNP NO, IP67

Overview:

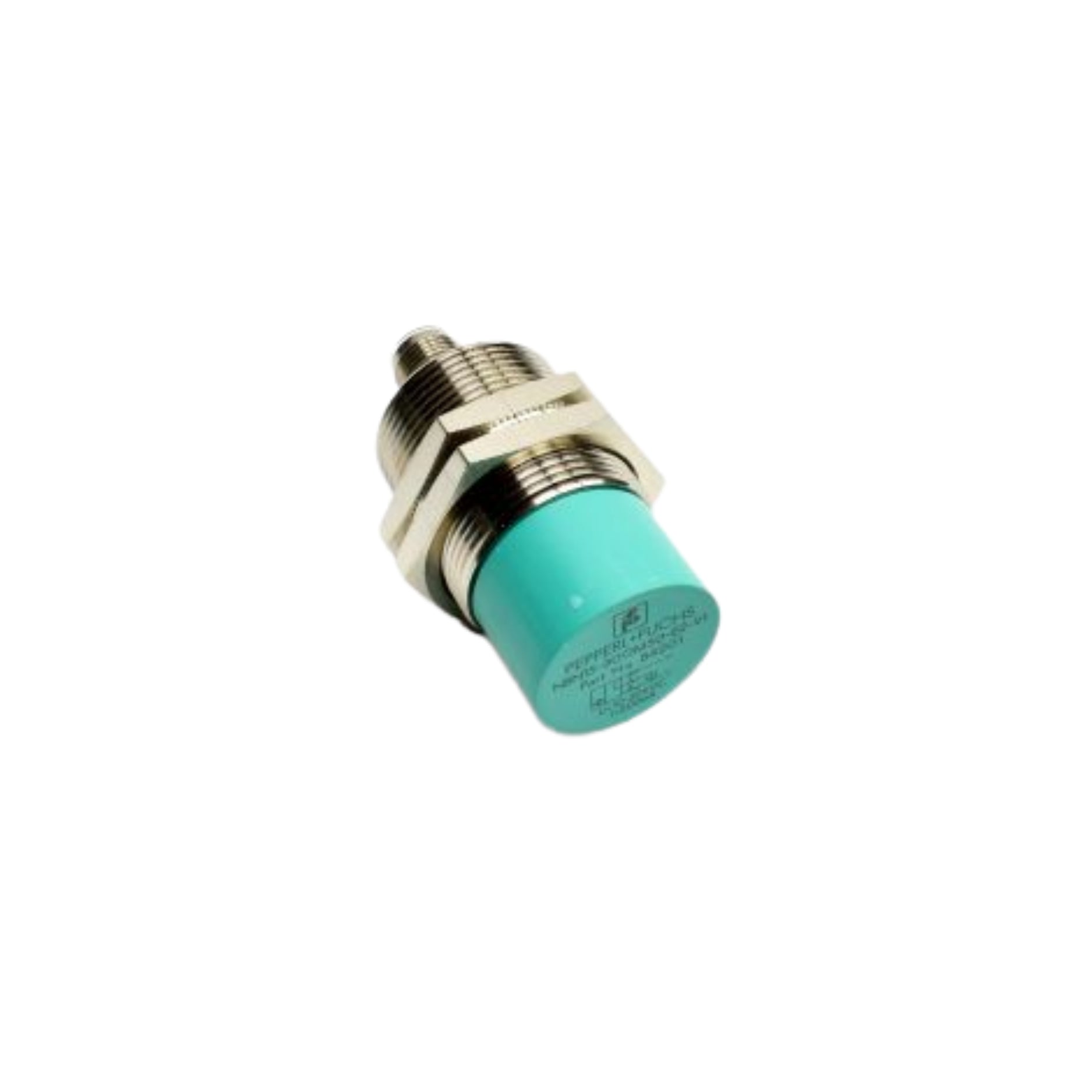

The Pepperl+Fuchs NBN15-30GM50-E2-V1 (Part No. 084201) is a high-performance inductive proximity sensor in a robust M30 threaded housing. With a 15 mm non-flush sensing distance, PNP normally open output, and IP67-rated protection, it delivers reliable metal object detection in industrial automation and harsh environments.

Key Features:

• Sensing Distance: 15 mm (non-flush mount)

• Output Type: PNP, Normally Open (NO)

• Operating Voltage: 10–30 VDC

• Connection Type: M12, 4-pin connector

• Housing Material: Nickel-plated brass

• Protection Rating: IP67

• Switching Frequency: Up to 200 Hz

• Temperature Range: -25°C to +70°C

• LED Indicator: For switching status

• Short-Circuit & Reverse Polarity Protection: Included

Technical Specifications:

• Model Number: NBN15-30GM50-E2-V1

• Part Number: 084201

• Sensor Type: Inductive proximity

• Installation Type: Non-flush

• Voltage Drop: ≤ 2.5 V

• Max Load Current: 200 mA

• Current Consumption: ≤ 20 mA (no load)

• Material – Sensing Face: Plastic (PA)

• Connector: M12 x 1, 4-pin male

• Dimensions: M30 x 50 mm

• Weight: Approx. 100 g

Applications:

• Industrial Automation: Metal part detection in production lines

• Packaging Systems: Presence and alignment detection

• Machine Tools: Robust performance in metalworking environments

• Material Handling: Detect objects on conveyor systems

• Robotics & OEM Equipment: Integrated sensing for positioning

Why Choose the NBN15-30GM50-E2-V1?

✅ Long-range 15 mm sensing in a standard M30 body
✅ Reliable PNP NO output for simple integration
✅ Rugged IP67 protection for wet and dusty environments
✅ Quick-connect M12 interface speeds up installation
✅ Ideal for general-purpose industrial applications

Order Now:

Available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
