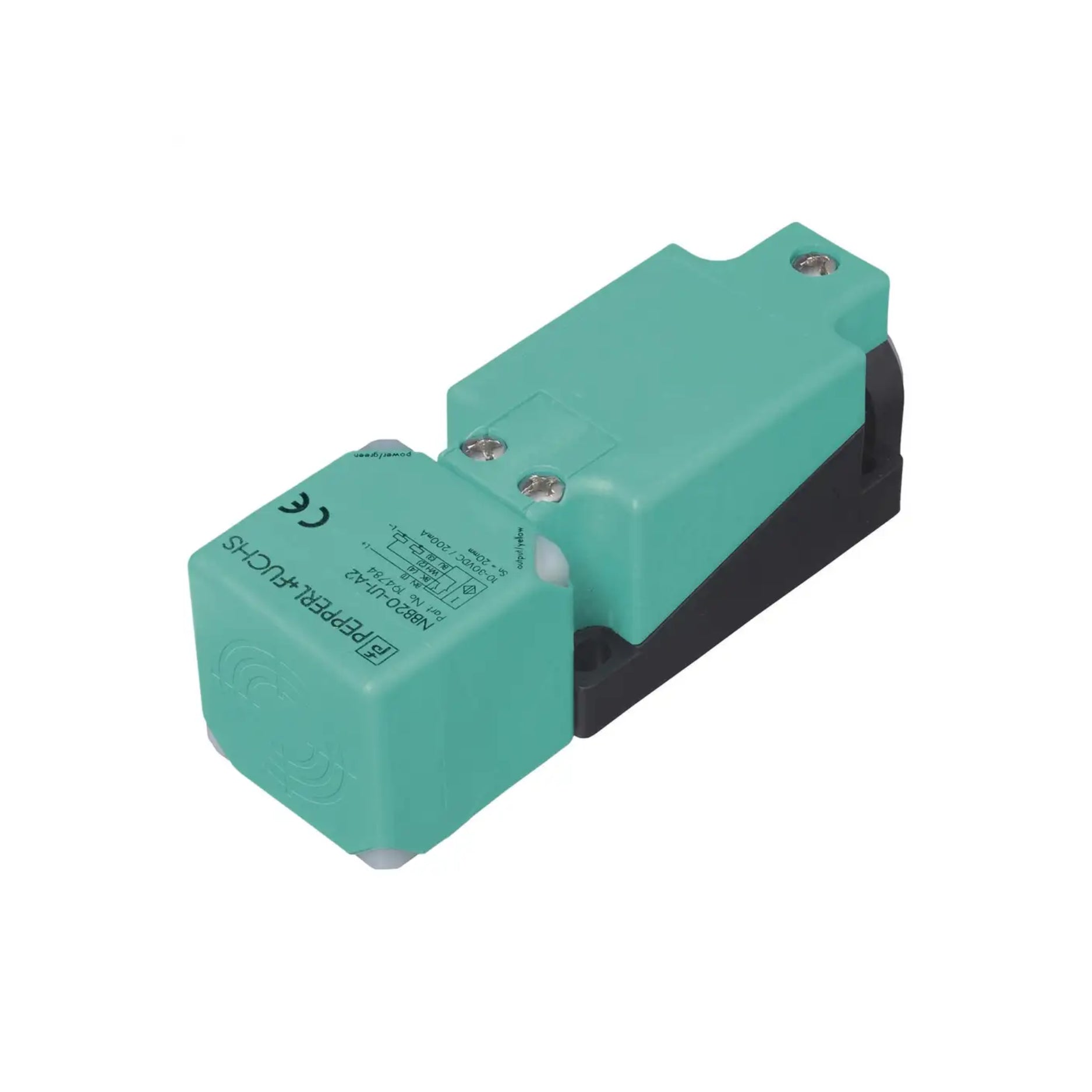

Pepperl+Fuchs NBB20-U1-A2

Pepperl+Fuchs NBB20-U1-A2 | Extended-Range Inductive Sensor for Rugged Industrial Environments

Overview

The NBB20-U1-A2 from Pepperl+Fuchs is a high-performance inductive proximity sensor with a 20 mm sensing range and PNP normally open output. Designed for non-contact metal object detection, this sensor features a rugged cylindrical housing, cable connection, and IP67 protection, making it ideal for harsh automation and manufacturing environments.

Key Features

• 20 mm Sensing Range – Extended range for detecting larger targets

• PNP Output (Normally Open) – Standard logic for PLC integration

• Cylindrical Housing – Robust design for fixed installation

• Cable Connection – Pre-wired for simple setup

• IP67 Protection – Water- and dust-resistant for harsh conditions

• 3-Wire DC Sensor – Easy integration into automation systems

Technical Specifications

• Model: NBB20-U1-A2

• Part Number: 194784

• Sensor Type: Inductive proximity sensor

• Sensing Distance: 20 mm (non-flush)

• Output Type: PNP, Normally Open (NO)

• Connection Type: Cable (pre-wired)

• Voltage Supply: 10–30 V DC

• Switching Frequency: ≤ 100 Hz

• Housing Material: Plastic

• Protection Rating: IP67

• Operating Temperature: -25°C to +70°C

Applications

• Material Handling and Conveying

• Automated Assembly Lines

• Packaging Machinery

• Factory Automation Systems

• Position and Presence Sensing

Why Choose NBB20-U1-A2?

• Reliable long-range detection of metal objects

• Easy installation and wiring

• Industrial-grade durability from Pepperl+Fuchs

Order Now

Ready to ship worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
