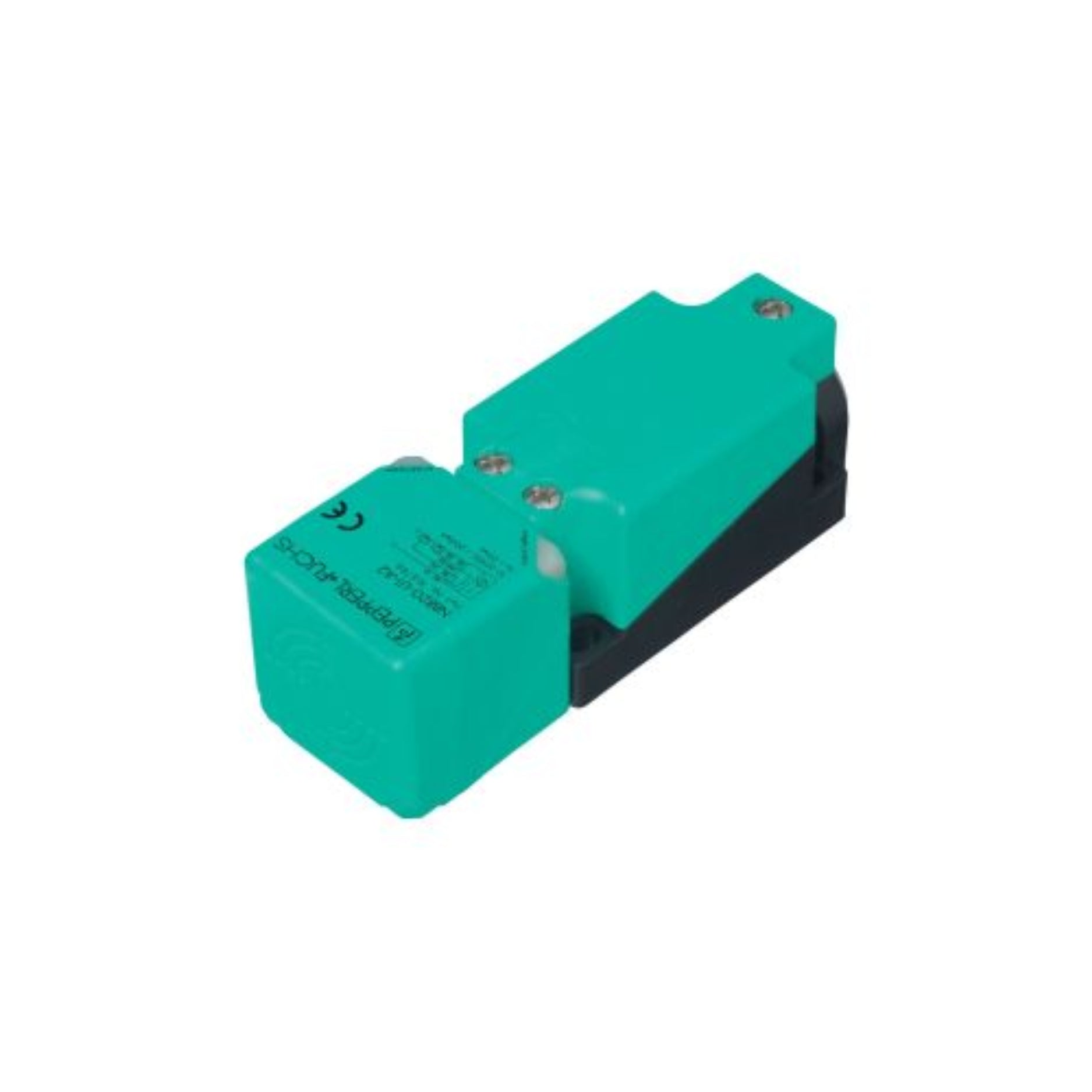

Pepperl+Fuchs NBB15-U1K-N0

Pepperl+Fuchs NBB15-U1K-N0 | Inductive Sensor, 15 mm, 2-Wire AC/DC, IP67

Overview:

The Pepperl+Fuchs NBB15-U1K-N0 (Part No. 70133098) is a flush-mount inductive proximity sensor designed for non-contact metal object detection up to 15 mm. With a 2-wire AC/DC configuration, it supports a wide voltage range and is ideal for robust industrial applications, including those with limited wiring options.

Key Features:

• Sensing Distance: 15 mm (flush mount)

• Output Type: 2-wire, Normally Open (NO)

• Voltage Range: 20–250 V AC/DC

• Housing Type: Cylindrical plastic body

• Connection: Cable (typically 2 m PVC)

• Protection Rating: IP67

• Switching Frequency: 25 Hz (AC), 500 Hz (DC)

• LED Status Indicator: Yes

• Mounting Type: Flush

Technical Specifications:

• Model Number: NBB15-U1K-N0

• Part Number: 70133098

• Sensor Type: Inductive proximity

• Installation: Flush mount

• Current Consumption (no load): ≤ 1.8 mA

• Switching Current: Max. 100 mA

• Leakage Current: ≤ 1.8 mA

• Voltage Drop: ≤ 10 V

• Material – Housing: Plastic (PBT)

• Material – Sensing Face: Plastic

• Operating Temp: -25°C to +70°C

• Cable Length: Typically 2 meters

• Weight: Approx. 100 g

Applications:

• AC/DC Control Circuits: Where flexible voltage operation is needed

• Machine Tools: Metal part presence detection

• Conveyor Lines: Object counting or positioning

• Material Handling Systems: Detect metallic containers or parts

• OEM Machinery: Easy integration with 2-wire systems

Why Choose the NBB15-U1K-N0?

✅ Wide voltage range (20–250 V AC/DC) for flexible installation
✅ Long 15 mm flush sensing for deeper detection
✅ 2-wire system simplifies wiring in retrofit and new builds
✅ Rugged and sealed to IP67 for industrial durability
✅ LED indicator provides instant switching feedback

Order Now:

Available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
