Pepperl+Fuchs NBB15-30GM50-E2-V1

Pepperl+Fuchs NBB15-30GM50-E2-V1 | High-Performance M30 Inductive Sensor for Precise Object Detection

Overview

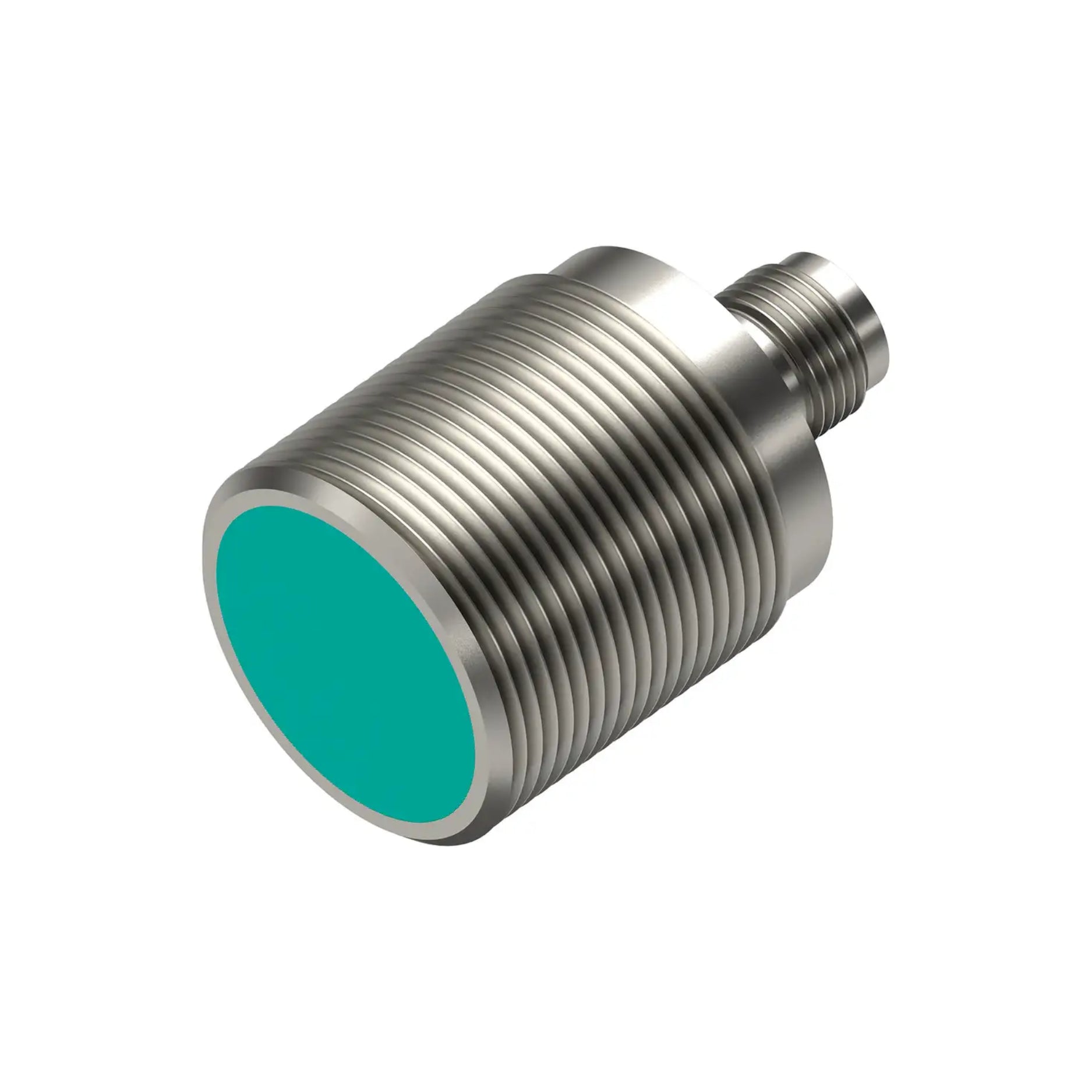

The Pepperl+Fuchs NBB15-30GM50-E2-V1 is a robust M30 inductive proximity sensor designed for accurate and non-contact detection of metallic objects in industrial environments. Featuring a 15 mm flush sensing range, PNP normally open (NO) switching output, and an extended operating temperature range of -40°C to +85°C, this sensor ensures reliable performance under demanding conditions. Its durable construction and versatile mounting options make it suitable for various automation applications.

Key Features

• Sensing Range: 15 mm flush installation, providing precise detection of metallic targets.

• Output Type: PNP switching output with normally open (NO) function, facilitating straightforward integration into control systems.

• Extended Temperature Range: Operates effectively between -40°C and +85°C, suitable for extreme environmental conditions.

• Robust Construction: Brass housing with white bronze coating and PBT sensing face, ensuring durability and resistance to industrial wear.

• High Protection Rating: IP65/IP66/IP67/IP68-rated, offering excellent protection against dust and water ingress.

• Flexible Mounting: M30 threaded cylindrical design with included self-locking nuts for secure and adaptable installation.

• LED Indicator: Multihole yellow LED provides clear visual indication of the switching state for easy status monitoring.

Technical Specifications

• Model Number: NBB15-30GM50-E2-V1

• Switching Function: Normally open (NO)

• Output Type: PNP

• Rated Operating Distance (sn): 15 mm

• Installation: Flush

• Operating Voltage (UB): 6 to 36 V DC

• Switching Frequency (f): 0 to 550 Hz

• Hysteresis (H): Typically 5% of sensing distance

• Reverse Polarity Protection: Yes

• Short-Circuit Protection: Pulsing

• Voltage Drop (Ud): ≤ 1 V

• Operating Current (IL): 0 to 200 mA

• Off-State Current (Ir): Maximum 20 µA

• No-Load Supply Current (I0): ≤ 10 mA

• Time Delay Before Availability (tv): ≤ 10 ms

• Reduction Factors:

  • Aluminum (rAl): 0.45

  • Copper (rCu): 0.43

  • Stainless Steel 304 (r304): 0.73

  • Brass (rBrass): 0.53

• Ambient Temperature Range: -40°C to +85°C (-40°F to +185°F)

• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)

• Housing Material: Brass, white bronze coated

• Sensing Face Material: PBT, green

• Degree of Protection: IP65/IP66/IP67/IP68

• Connection Type: M12 x 1 connector plug, 3-pin

• Dimensions:

  • Length: 67 mm

  • Diameter: 30 mm

• Weight: Approximately 156 g

• Compliance:

  • Standards: EN IEC 60947-5-2

  • Approvals: cULus Listed for General Purpose, Class 2 Power Source; DNVGL Marine Approval

Applications

• Material Handling: Accurate detection of metal objects on conveyors for sorting and positioning.

• Automotive Manufacturing: Ensures precise detection of vehicle components during assembly processes.

• Packaging Industry: Verifies the presence of metallic parts in packaging lines to maintain quality control.

• Machine Tools: Monitors the position of metal workpieces and tools to enhance operational safety and efficiency.

• Heavy Equipment: Suitable for outdoor and rugged environments, detecting metal parts in construction and agricultural machinery.

Why Choose Pepperl+Fuchs NBB15-30GM50-E2-V1?

• Extended Sensing Distance: 15 mm flush sensing range allows for greater flexibility in application design.

• Enhanced Durability: Robust housing materials and high ingress protection ratings ensure longevity in harsh industrial settings.

• Wide Operating Voltage Range: Compatible with various power supplies, accommodating 6 to 36 V DC.

• High Switching Frequency: Capable of handling fast-paced applications with switching frequencies up to 550 Hz.

• Trusted Brand: Pepperl+Fuchs is renowned for high-quality sensors and automation solutions, ensuring reliability and support.

Order Now

Available for immediate shipping worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
