Omron S8VK-C06024 | 60W DIN Rail Power Supply

Omron S8VK-C06024 | 60W DIN Rail Power Supply with 24V DC Output

Overview

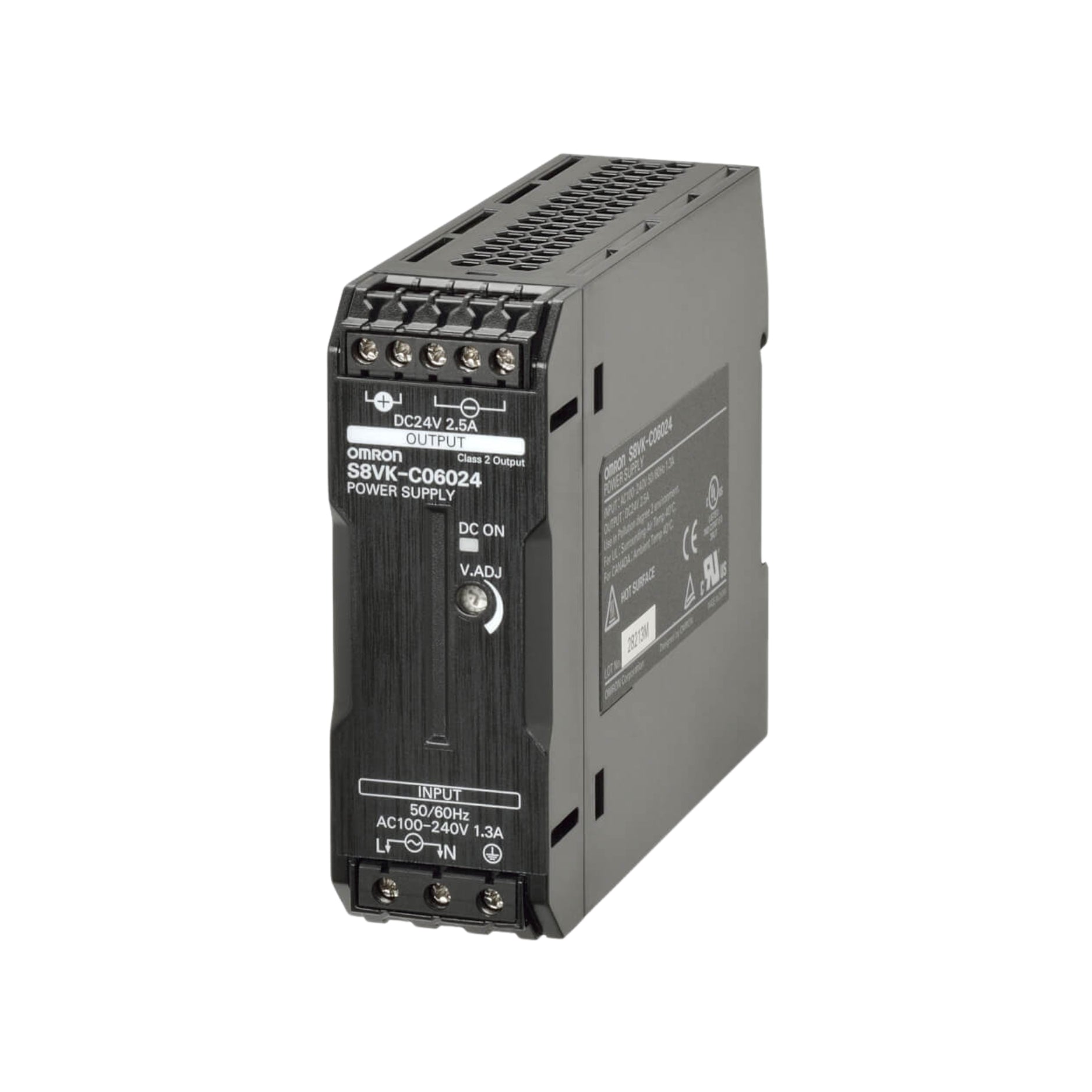

The Omron S8VK-C06024 is a compact and cost-effective DIN rail-mounted power supply, providing a stable 24V DC output at 2.5A. Designed for industrial applications, it features a universal input voltage range and operates efficiently across a wide temperature spectrum. Its robust design ensures reliable performance in demanding environments.

Key Features

• Output Power: 60W with 24V DC output at 2.5A

• Universal Input Voltage: Accepts 85–264V AC and 90–350V DC inputs

• High Efficiency: Achieves up to 88% efficiency

• Compact Design: Measures 32 mm (W) × 90 mm (H) × 110 mm (D), saving panel space

• Wide Operating Temperature Range: Functions reliably from -25°C to +60°C

• Easy Wiring: Equipped with double sets of DC output terminals (three for negative) for simplified connections

• DIN Rail Mountable: Facilitates quick and secure installation

• Safety Compliance: Conforms to EN61204-3, EN55011 Class A standards

Technical Specifications

• Model Number: S8VK-C06024

• Input Voltage Range:

  • AC: 85–264V AC (47–450 Hz)

  • DC: 90–350V DC

• Output Voltage: 24V DC

• Output Current: 2.5A

• Efficiency: Approximately 88% at 230V AC input

• Inrush Current: 16A at 115V AC; 32A at 230V AC

• Leakage Current: 0.19 mA at 115V AC; 0.34 mA at 230V AC

• Overload Protection: Yes, activates at 105% to 160% of rated load current

• Overvoltage Protection: Yes, with manual reset by turning off input power for at least three minutes

• Operating Temperature: -25°C to +60°C

• Storage Temperature: -25°C to +65°C

• Operating Humidity: 20% to 90% (non-condensing)

• Mounting Method: DIN rail

• Dimensions: 32 mm (W) × 90 mm (H) × 110 mm (D)

• Weight: Approximately 260 g

• Certifications: CE, cURus, TUV

Applications

• Industrial Automation: Powers controllers, sensors, and actuators in automated systems

• Process Control: Provides reliable power for instrumentation and control devices

• Building Automation: Supplies power to HVAC controls, lighting systems, and security devices

• Machinery: Suitable for various types of industrial machinery requiring stable 24V DC power

Why Choose Omron S8VK-C06024?

• Reliable Performance: Designed to operate in harsh industrial environments with high efficiency

• Flexible Input Range: Accommodates a wide range of AC and DC inputs for global compatibility

• Compact and Space-Saving: Slim profile allows for efficient use of control panel space

• Easy Installation and Wiring: DIN rail mounting and multiple output terminals simplify setup

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron automation components, DIN rail accessories, and other related products to complete your system.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
