Omron NX-PF0630

Omron NX-PF0630 | 30W Power Supply Unit for NX Series Systems

Overview

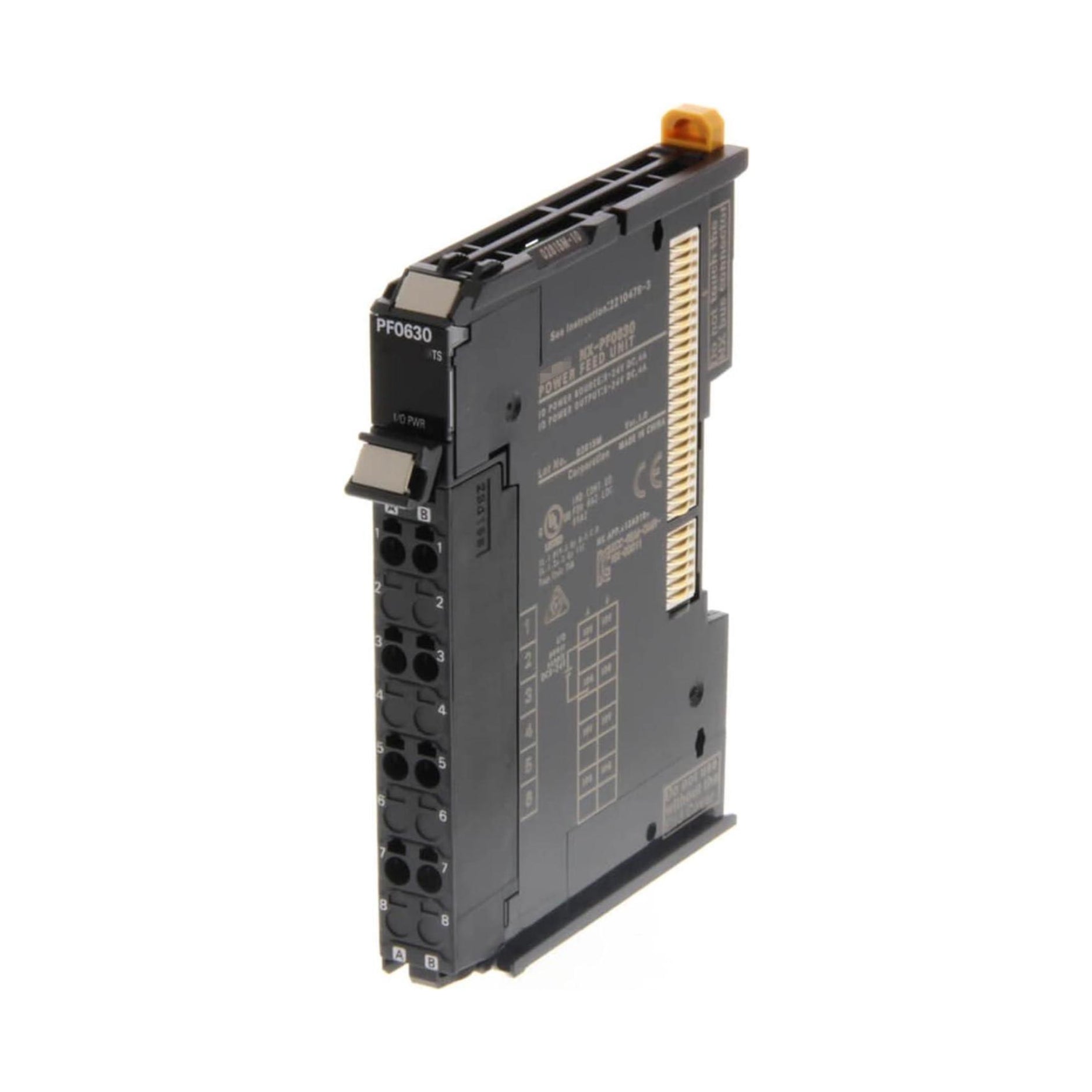

The Omron NX-PF0630 is a 30W power supply unit designed for use with NX Series I/O systems. It supplies the I/O power required for connected units via the I/O bus. With a 24V DC input, the NX-PF0630 features a screwless push-in terminal block and DIN rail mounting, making it ideal for modern control panels.

Key Features

• Power Supply Voltage: 24V DC (operating range: 20.4–28.8 VDC)

• Output Capacity: 30 W max for I/O bus power

• Push-in Terminals: Tool-free wiring and secure connection

• Compact Width: 24 mm saves panel space

• DIN Rail Mountable: Fast, tool-less installation

Technical Specifications

• Model Number: NX-PF0630

• Series: NX Series

• Power Supply Voltage: 24V DC (20.4 to 28.8 VDC)

• Output Power: 30 W

• Efficiency: Approx. 70%

• Connection Terminals: 8-point screwless push-in

• Dimensions: 24 mm (W) × 100 mm (H) × 71 mm (D)

• Weight: Approx. 150 g

• Mounting Method: DIN rail

• Operating Temperature: 0°C to +55°C

• Storage Temperature: -25°C to +70°C

• Certifications: CE, cULus, RoHS

Applications

• NX I/O Power Supply: Delivers stable 24V power to connected NX I/O modules

• Machine Automation: Powers sensors, relays, and actuators in modular control systems

• Panel Integration: Ideal for distributed systems requiring compact, reliable power

Why Choose Omron NX-PF0630?

• Efficient and Compact: Small footprint with high power delivery

• Tool-Free Wiring: Reduces wiring time with push-in terminals

• Reliable Operation: Designed for demanding automation environments

• NX System Integration: Perfectly matches Omron NX-series architecture

Order Now

In stock and ready for worldwide shipping. Ask us about NX I/O units, CPUs, and accessories to complete your system.
