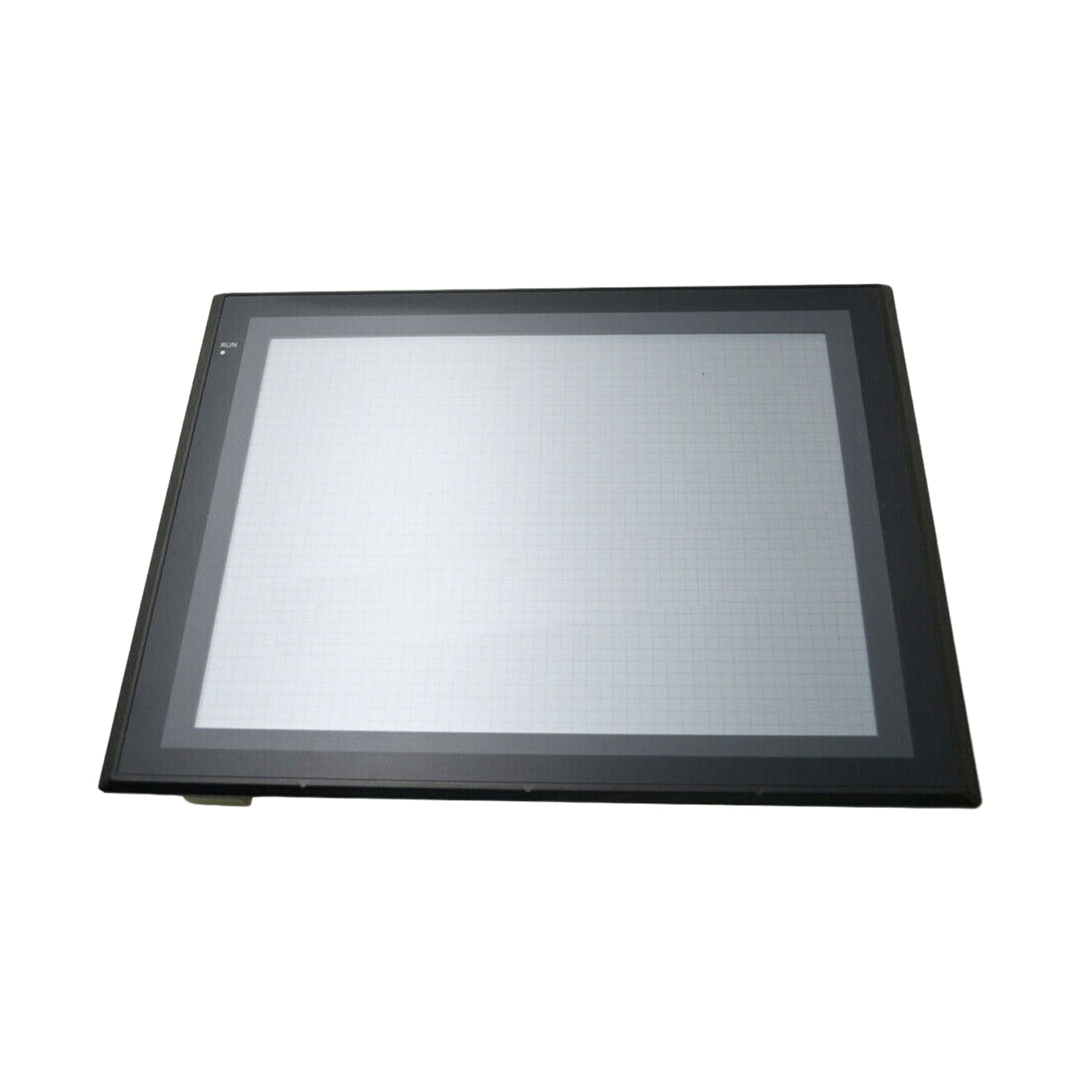

Omron NS12-TS01B-V2 | 12.1" HMI Touchscreen

Omron NS12-TS01B-V2 | 12.1" HMI Touchscreen – NS Series Operator Interface

Overview

The Omron NS12-TS01B-V2 is a 12.1-inch HMI touchscreen from the NS Series, designed for high-performance machine interfaces. Featuring a TFT color LCD, built-in Ethernet, RS-232C, and USB ports, it supports fast communication with Omron PLCs and third-party devices. Its robust design and versatile features make it ideal for demanding industrial applications.

Key Features

• Display Size: 12.1 inches

• Display Type: TFT color LCD

• Resolution: 800 × 600 pixels (SVGA)

• Backlight: Replaceable, long-life

• Touch Panel: Analog resistive

• Ports: Ethernet, RS-232C, RS-422A/485, USB Host & USB Slave

• Memory: Approx. 60 MB for screen data

• Software: Compatible with Omron CX-Designer

• Alarm, Data Logging, and Historical Trend Features

Technical Specifications

• Model Number: NS12-TS01B-V2

• Series: NS Series

• Display Size: 12.1 inches

• Display Type: TFT LCD, 256 colors

• Resolution: 800 × 600 (SVGA)

• Touch Panel: Analog resistive

• Interface Ports:

  • 1 × Ethernet

  • 1 × RS-232C

  • 1 × RS-422A/485

  • 1 × USB Host

  • 1 × USB Slave

• Rated Power Supply Voltage: 24V DC

• Current Consumption: Approx. 24W

• Operating Temperature: 0°C to +50°C

• Mounting Type: Panel mount

• Protection Rating: IP65 front panel (when mounted properly)

• Weight: Approx. 2.7 kg

• Certifications: CE, UL, cUL

Applications

• Factory Automation: Seamless integration with Omron PLCs and motion controllers

• Process Control: Visual monitoring and control of complex processes

• Packaging Machinery: User-friendly interface for operators and maintenance staff

• OEM Equipment: Ideal for customized control panels with graphical displays

Why Choose Omron NS12-TS01B-V2?

• Large, High-Resolution Display: Clear visuals and touch control

• Multiple Communication Options: Ethernet and serial ports for flexibility

• Industrial Grade: Rugged, panel-mountable design with IP65 protection

• Powerful Interface: Data logging, alarms, trends, and recipes for advanced control

Order Now

Available and ready for fast worldwide shipping. Contact us to bundle with Omron PLCs, CX-Designer software, communication cables, and accessories for a complete HMI solution.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
